Entering of the dimensions

To achieve probable measurement results, you need to enter the distances between the sensors, the
coupling and the machine bases first. The following figures show the required dimensions for both,
horizontally and vertically mounted machines.

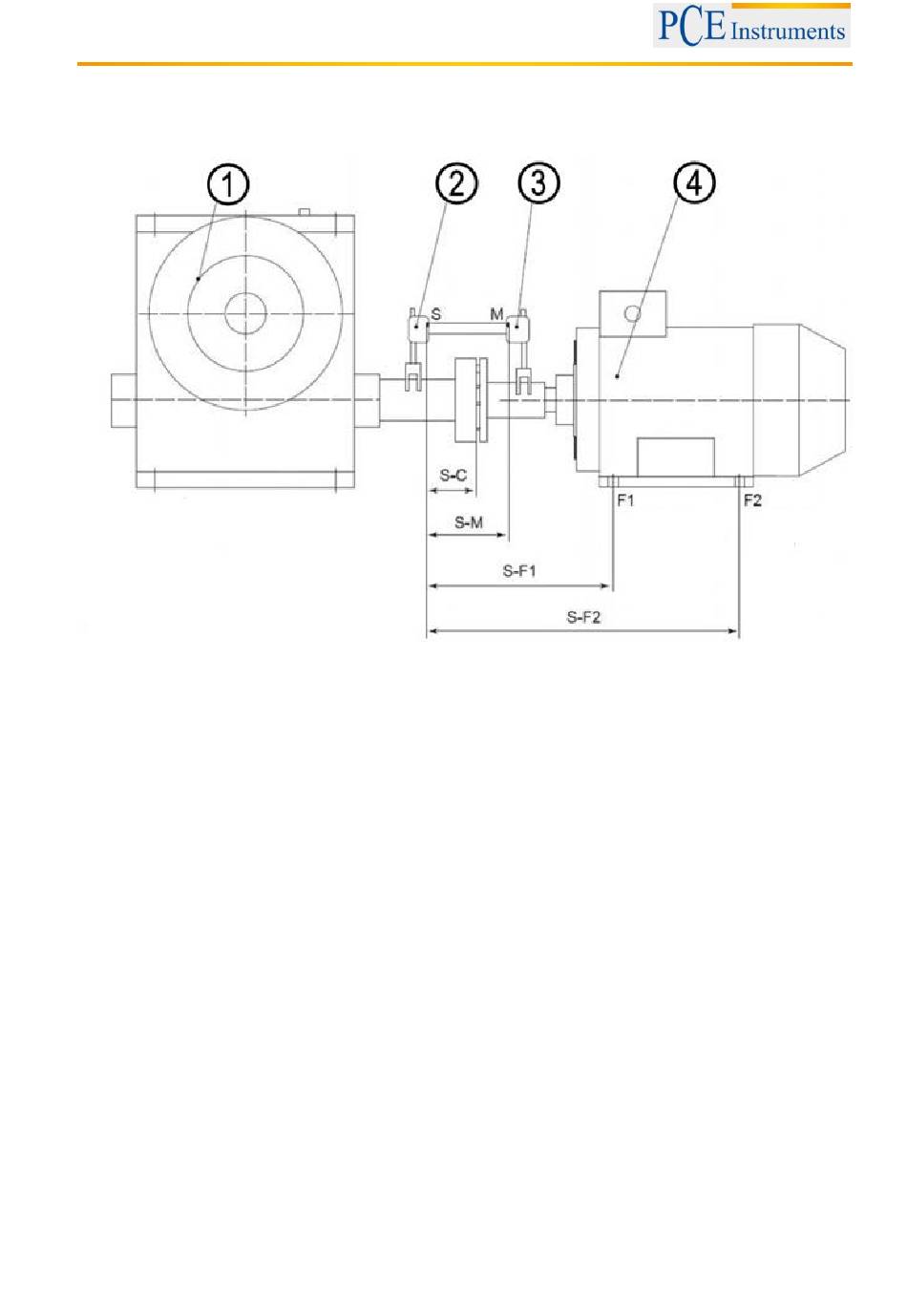

1 Stationary machine
2 Sensor S
3 Sensor M
4 Moveable machine
F1 Front machine base
F2 Rear machine base
S-M
distance between the measurement sensors
S-C
distance between sensor S and the middle of the coupling
S-F1
distance between sensor S and the machine base F1
S-F2
distance between sensor S and the machine base F2 (needs to be larger than S-F1). If
the machine has three pairs of machine bases, the value can be adjusted after the
measurement. After a new measurement, you receive the corrective values for the third
pair of machine base.
