8.2
Bores and centre line programme
8.2.1
Short explanation
This program is applied to measure the straightness of holes and drillings. For example, inner rings of ball
bearings (also those with changing diameters) or stators of machines can be measured. Due to the
multipoint function, measurements on up to 36 points in every angle for every bore are possible. Vertical
objects can also be measured (manual angle entry must be activated). In the following, objects with bores
to be measured are termed as plane.
Carry out bores centre line function
To start the program, select –„bores centre line" in the main menu under the sub item „Geometry" and
press
. The main screen of the program will appear.
8.2.2

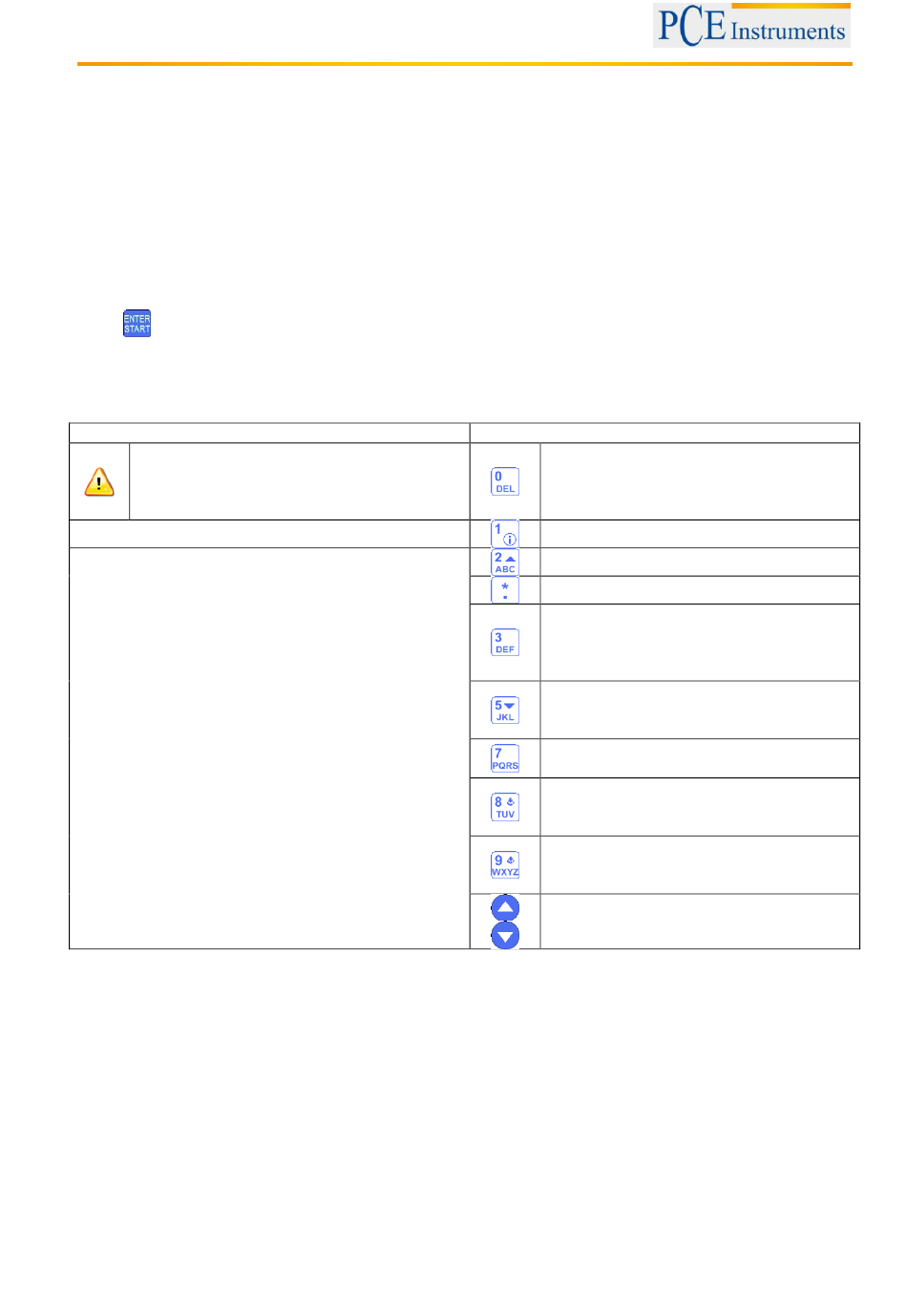

Main screen of the program (configuration of planes and changing of parameters)
What should be noted in this window
The required dimensions should be entered
correctly (can be changed later on, if
recommended, measurement data will not
be influenced).
Functions in this window
-
Create/change/view row of holes
-
Set parameters
-
Enter dimensions
-
Start measurement
-
View misalignment results (available when
all required measurements are finished)
-
Save
-
Load
Manual
Shortcuts in this window
Start a new measurement
Enter amount of planes (holes)
Set or delete all distances equally
Set current distance
Enter hole diameter (optional). If only 3
measurement points are used, the entry
of the hole diameter increases the
accuracy of the measurement result
Change parameters (manual data entry
or of the sensor; manual angle entry
or of the inclinometer; filter settings, ...)
View results (available, if all required
measurements are finished)
Save results to a file (see chapter 10
"Handling of the Data Dialogue
window")
Load saved results from a file (see
chapter 10 "Handling of the Data
Dialogue window")
Select hole, to enter the distance (to the
next hole) and hole diameter.
