8.3.4

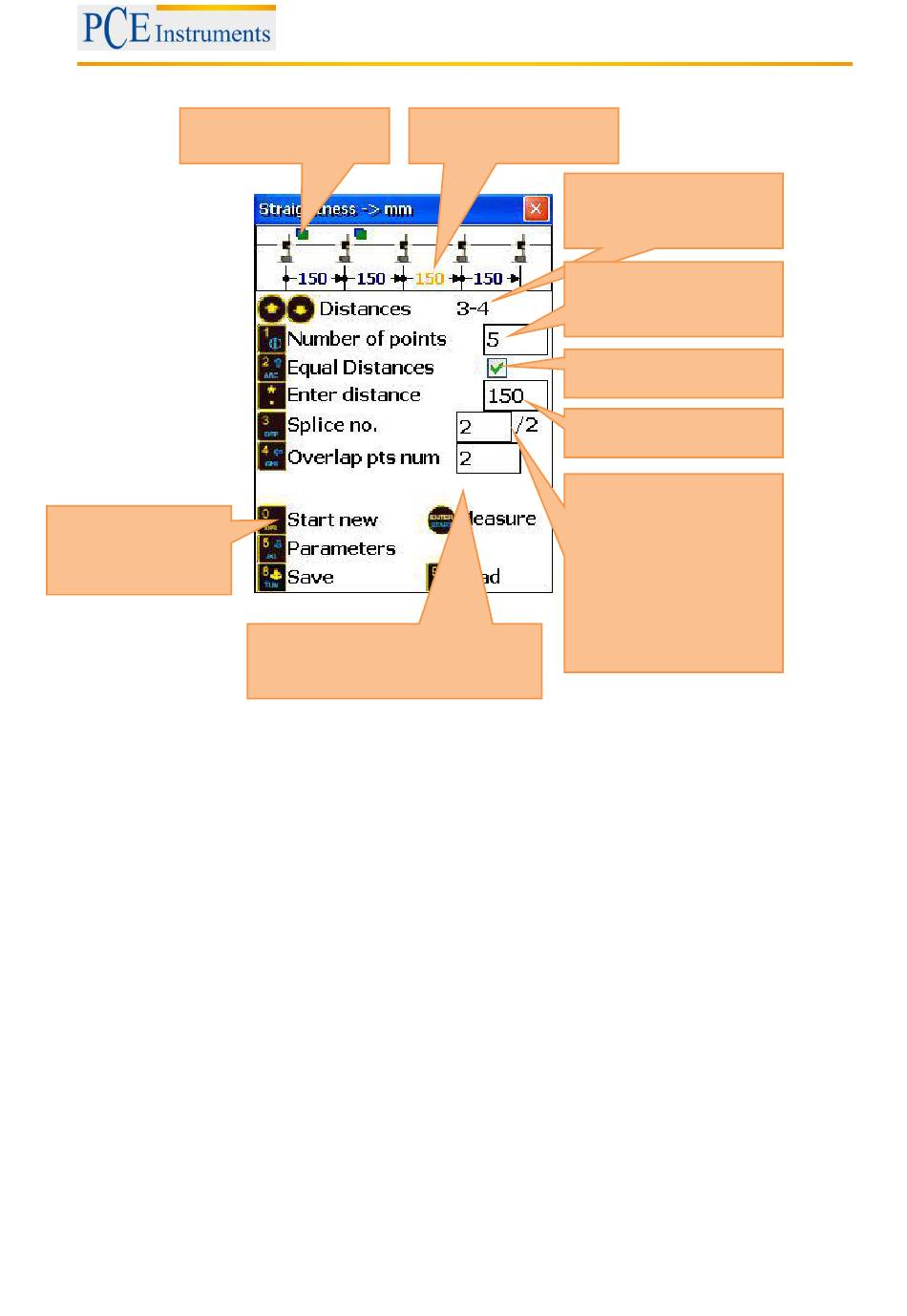

Screen overview

Overlap point
Start new
measurement
process (all data will
be deleted)
8.3.5

Splice explanation

If a measured object is longer than the effective length of the laser system (10 m between the sensors ), it
can be divided into parts (splices) and measured that way. A part can consist of 3 up to 300 single
measurement points where parts overlap in 2 up to 8 points (end of the previous part with the beginning
of the current part). These overlaps are necessary to carry out a straightness measurement of the whole
object correctly. If the effective length of the laser is longer than the measured object, there is no need to
use parts (splices).
Manual
Number of the overlap points (only
visible, if there are at least two parts
Currently selected
distance
Selected and next
measurement number
measurement points in
the part (Splice)
Same-distances
Value of the current
Current number of the
part and / total number of
the parts (only visible, if
there are at least two
75
Number of the
checkbox
distance
parts)
