9. Construction of the model aircraft

Before starting with the assembly of the model, prepare an appropriate surface.
In order to achieve excellent flight performance, your model is manufactured with a light plastic foam. However, this
material has a sensitive surface. Even minor carelessness during assembly and later during operation of the model
may very quickly result in ugly dents, scratches or other surface damage.
Therefore, proceed carefully.
a) Removing and installing the canopy
The canopy is held in place with a pin at the front and a magnet at the back.
To remove the canopy, lift it at the back and pull it up and away.
To put the canopy on, first guide the canopy pin under the fuselage at the front and then place the canopy onto the
magnet at the back.
b) Mounting the tailplane

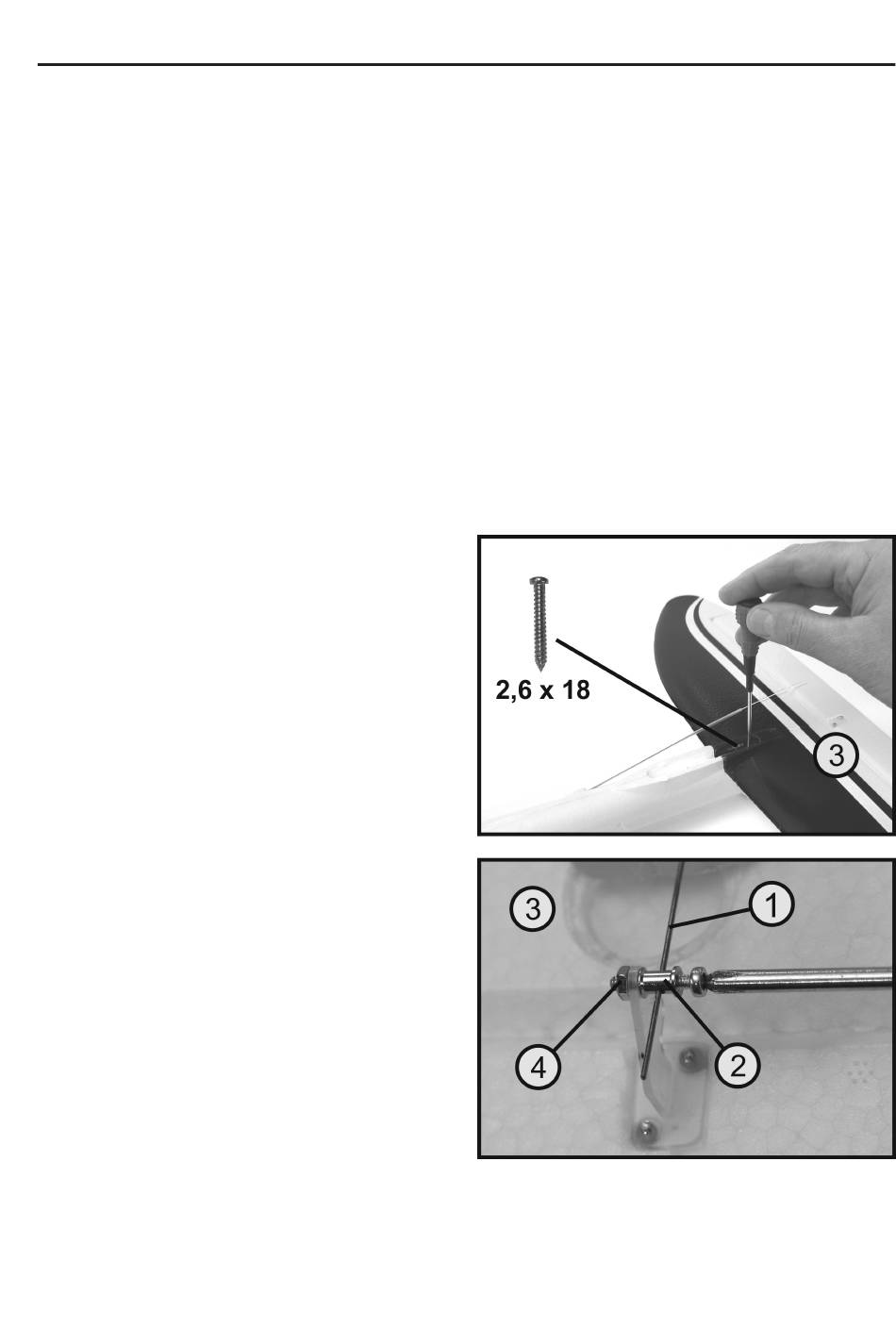

Thread the elevator linkage wire (1) into the screw nipple
(2) and place the tailplane (3) on the back of the fuselage.
Then insert one of the two 2.6 x 18 mm screws from above
and tighten with a cross-head screwdriver.
Proceed carefully to avoid damaging the screw and the
screw socket.
Put the elevator in the middle position and only slightly
tighten the screw on the nipple.
Figure 4
56
