13. Final assembly of the model
With the model's control functions set and checked, the model can be made ready for use.

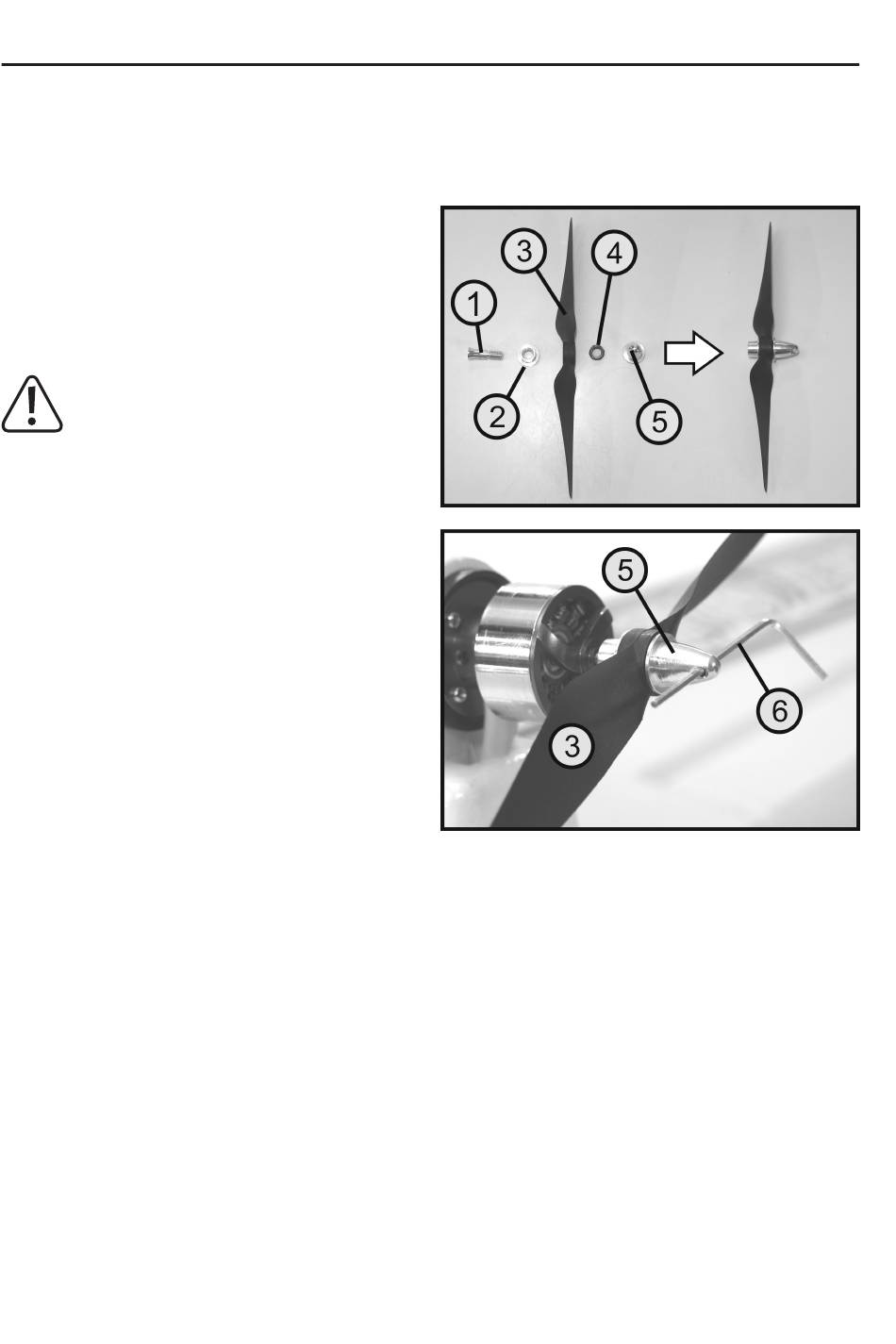

a) Installation of the propeller
The propeller driver must be disassembled before install-
ing the propeller. Use the clamping pin (1) and the clamp-
ing ring (2) to clamp the motor shaft.
To centre the propeller (3), insert an adapter ring (4) with
an inner diameter of 5 mm and an outer diameter of 8 mm
into it. Initially, screw the spinner cap (5) loosely.
Caution, important!
Make sure that the propeller is correctly aligned !
The more curved edges of the propeller blades
must point forwards in the direction of flight, i.e.
towards the clamping ring (see illustration of
the fully assembled propeller/driver unit).
Then put the propeller/driver unit onto the motor shaft and
carefully tighten the unit using the hex key (6).
