Paralleling UPS Devices

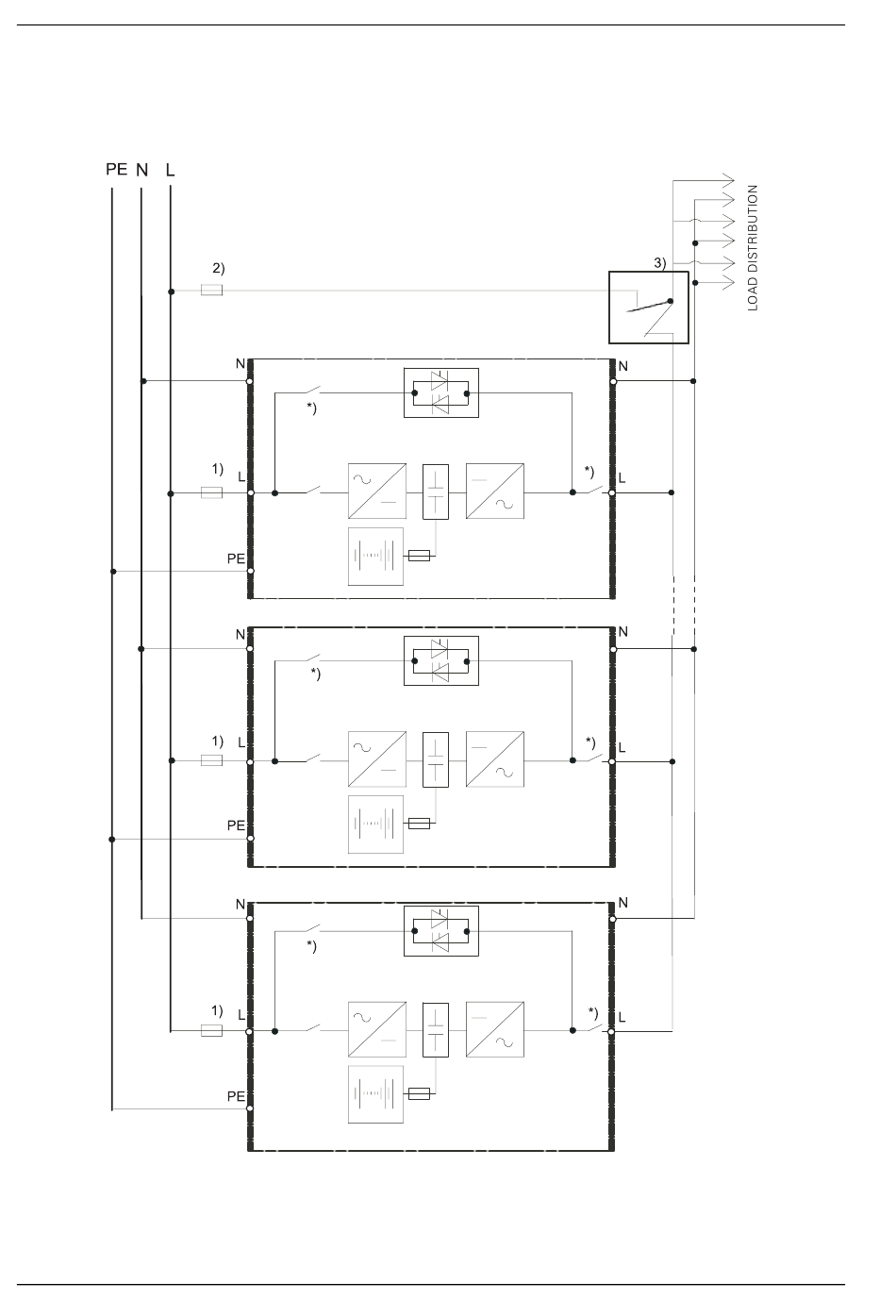

Fig. 25: Diagram of 3 block system, 1ph in -1ph out, 1 feeding mains
EN-56
1)Size of use: see "External protection devices"
2)Values determined by size of Ext. Service Bypass
3)Switch, fused switch or circuit breaker
BYPASS
BLOCK 3
BYPASS
BLOCK 2
BYPASS
BLOCK 1
User Handbook
CHLORIDE LINEAR Plus/RM
EXTERNAL
SERVICE
BYPASS
This breaker is not available on
*)
UPS Linear Plus RM. Instead of
this there is a common input
feeder close the input terminal
to
L.
