Installation
Terminal blocks for UPS
The 3 position maintenance switch includes the output breaker. Backfeed
Protection control terminals are also located on the rear panel.

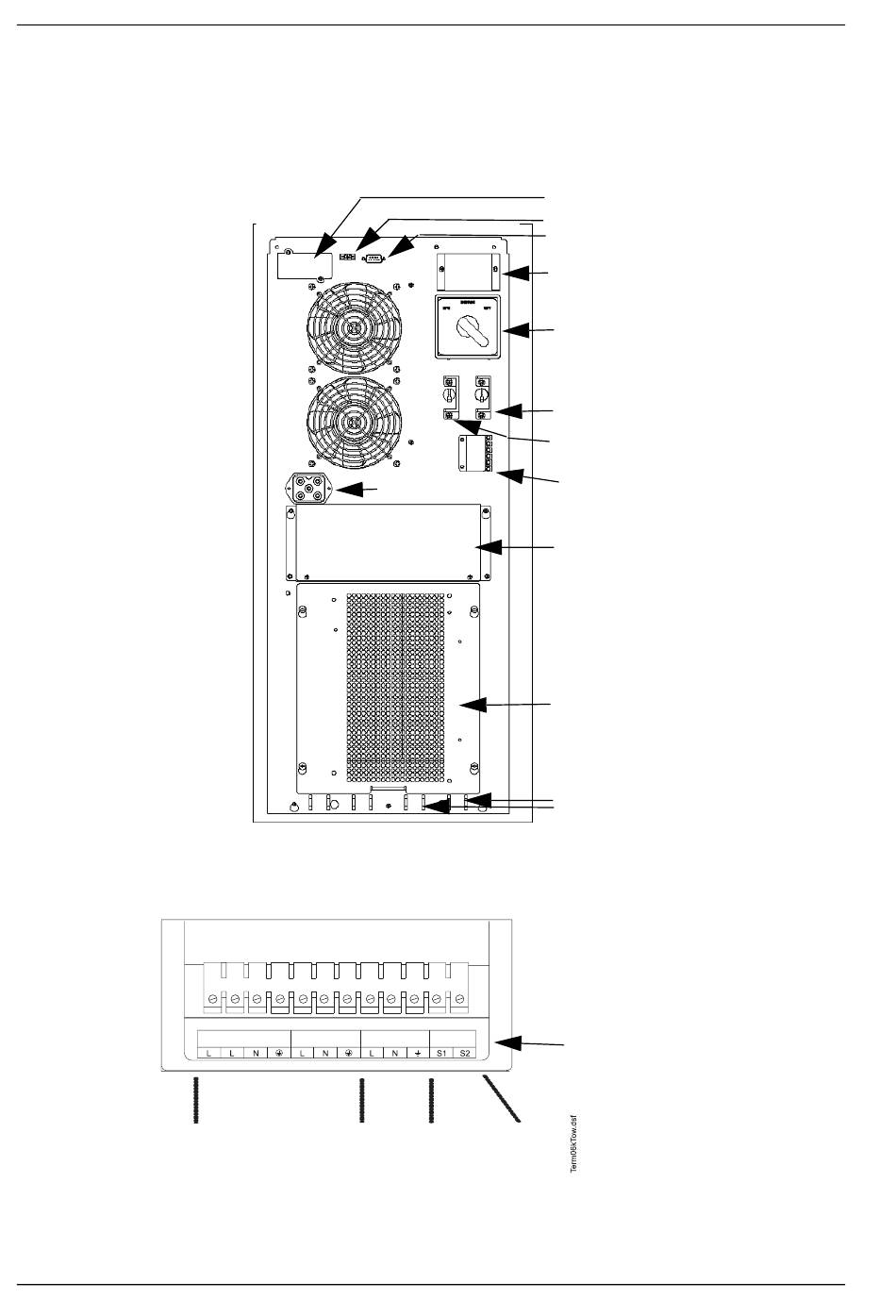

Fig. 9: Rear View Linear Plus 6 kVA
Fig. 10: Terminals Linear Plus 6 kVA
EN-24
Fans
Mains 2
Mains 1
Input
Terminals Area
Ext. battery
Parallel
Output
Output Parallel
connection
User Handbook
CHLORIDE LINEAR Plus/RM
Slot interface COM (card is option)
ESD contacts
Interface COM 3
Ports for parallel operation
(behind safety cover
)
3 position maintenance switch
includes output switch (safety
cover not illustrated)
Input circuit breaker (mains 1)
Input circuit breaker (Reserve / mains 2)
Backfeed protection terminals
Terminals area (behind safety cover)
Space for additional charger behind this
panel
Cable fixing
Note:
Single block: connect S1-S2
Parallel operation: open bridge S1-S2
