Operating the Device
Control panel Linear Plus
To show the principle of the panel the display text is shown of a 10 kVA
UPS.
"Menu Down" Button
"Select Esc" Button
"BYPASS" LED
(yellow)
"ON" LED (green)

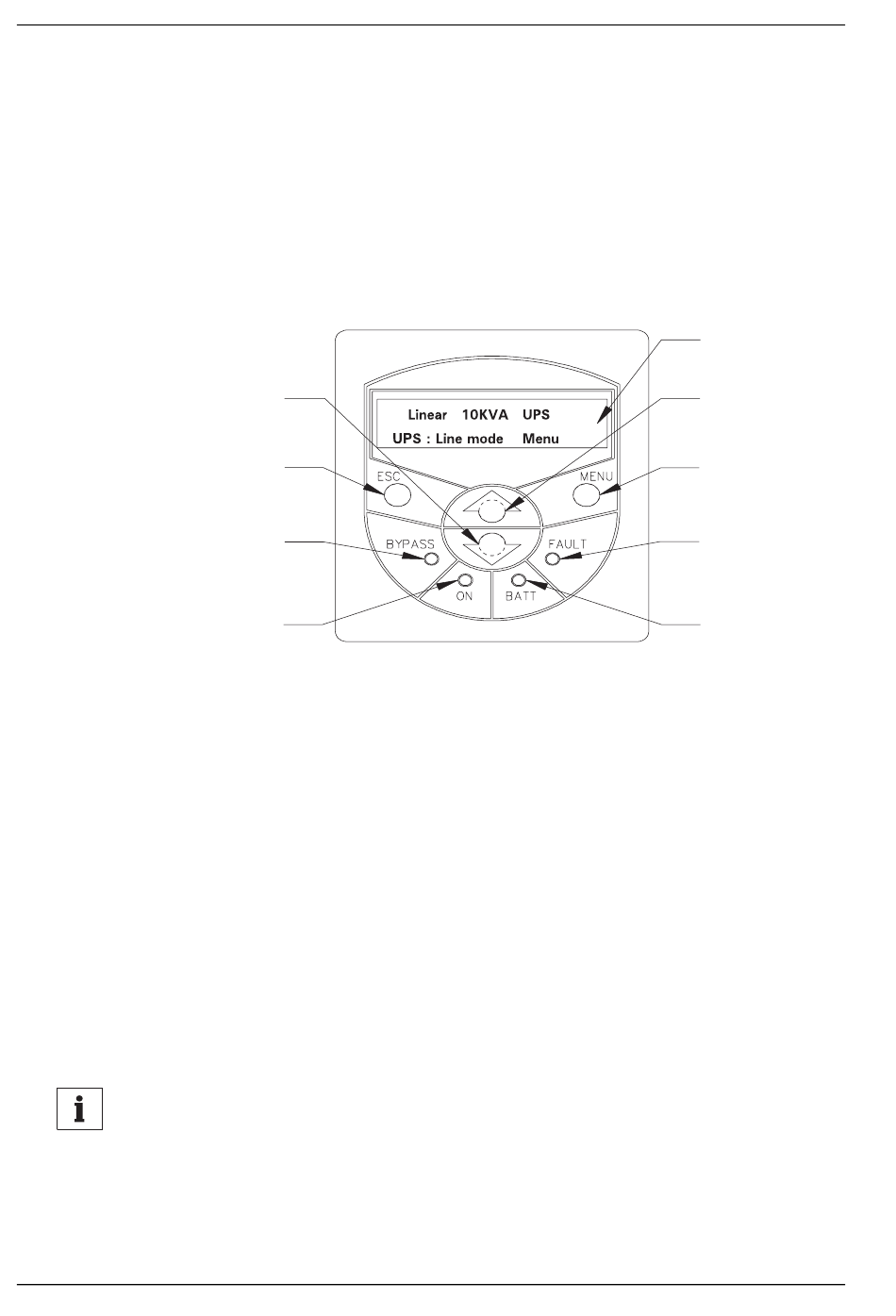

Fig. 19: Control Panel Linear Plus
Control and messages Linear Plus
Lighted LEDs
LEDs „OK" indicates „UPS running ONLINE",
LED „BYPASS" indicates „Load feeded from mains via automatic bypass" ,
LED „BATTERY" indicates „Load feeded from battery".
Flashing LED
If LED „BYPASS" is flashing, it is indicated that „Feeding reserve (bypass)
mains is out of tolerance".
Don't give command to „switch OFF" the UPS or to switch „from Online
to bypass" in this status, because load would not longer be supplied.
The display comprises the following of windows. Each window has a
dedicated number (see Fig. 20). By pressing the "Menu up" or "Menu
down" and "Select" buttons it is possible to scroll through the various
menus.
EN-36
User Handbook
CHLORIDE LINEAR Plus/RM
Display
"Menu Up" Button
"Select Menu" Button
"Fault" LED (red)
"BATT" LED (red)
