Normal and safe operating
The front panel can be turned to an oblique position. To achive this press
the panel in lower part. Release: see "Lock of front panel" on page EN-54.

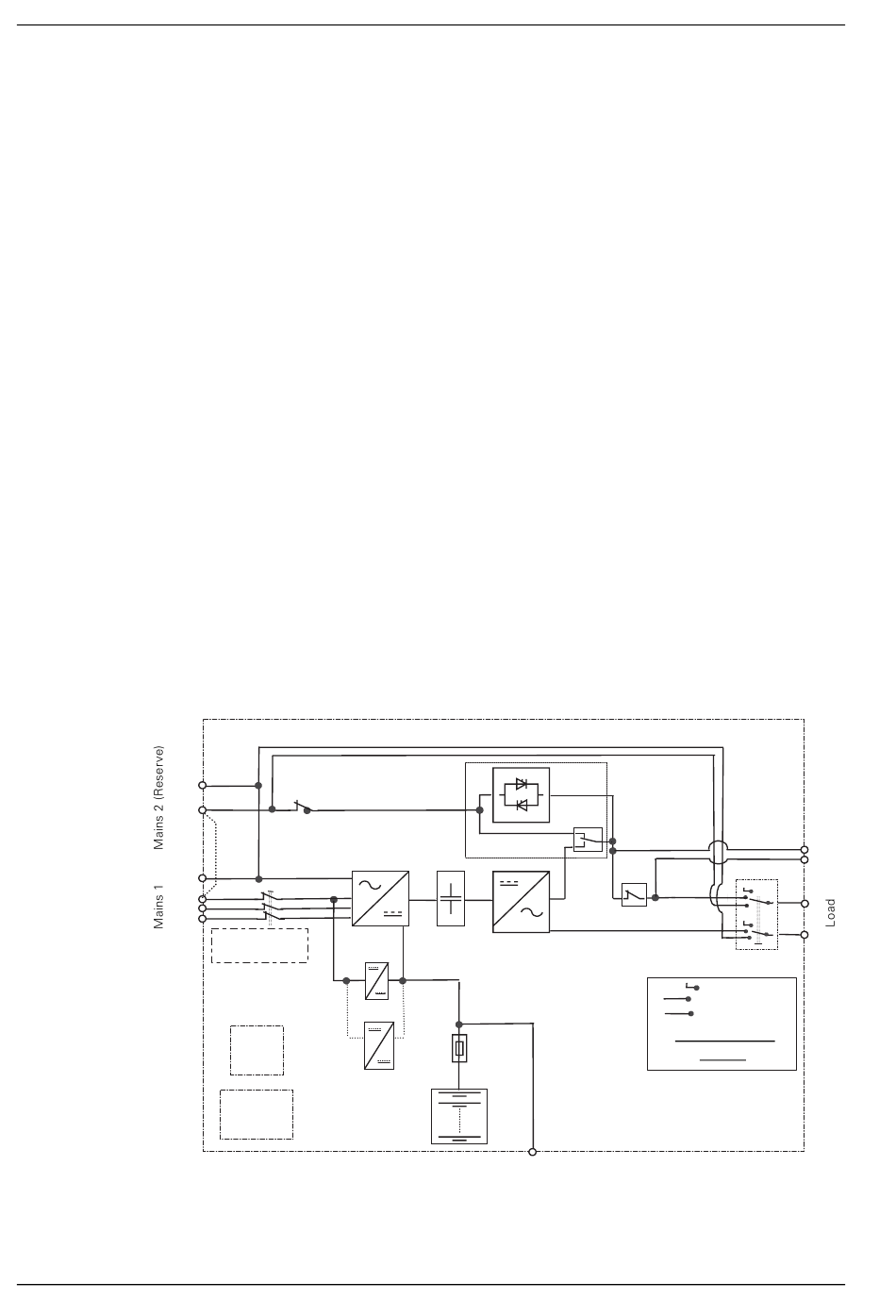

Block diagram Linear Plus (Tower UPS)
Linear Plus 6 and 10 kVA consists of the following main components:
• 2 mains supplies (mains and reserve)
• rectifier/booster, inverter and charger
• electronic bypass
• 2 input switches
• 3 position maintenance bypass switch
• paralleling contactor and TVSS filter
• integrated battery, expandable
• additional charger (option)
• backfeed protection logic inside
N
L
N
L
L
L
Fig. 17: Overview of Tower UPS Linear Plus components
