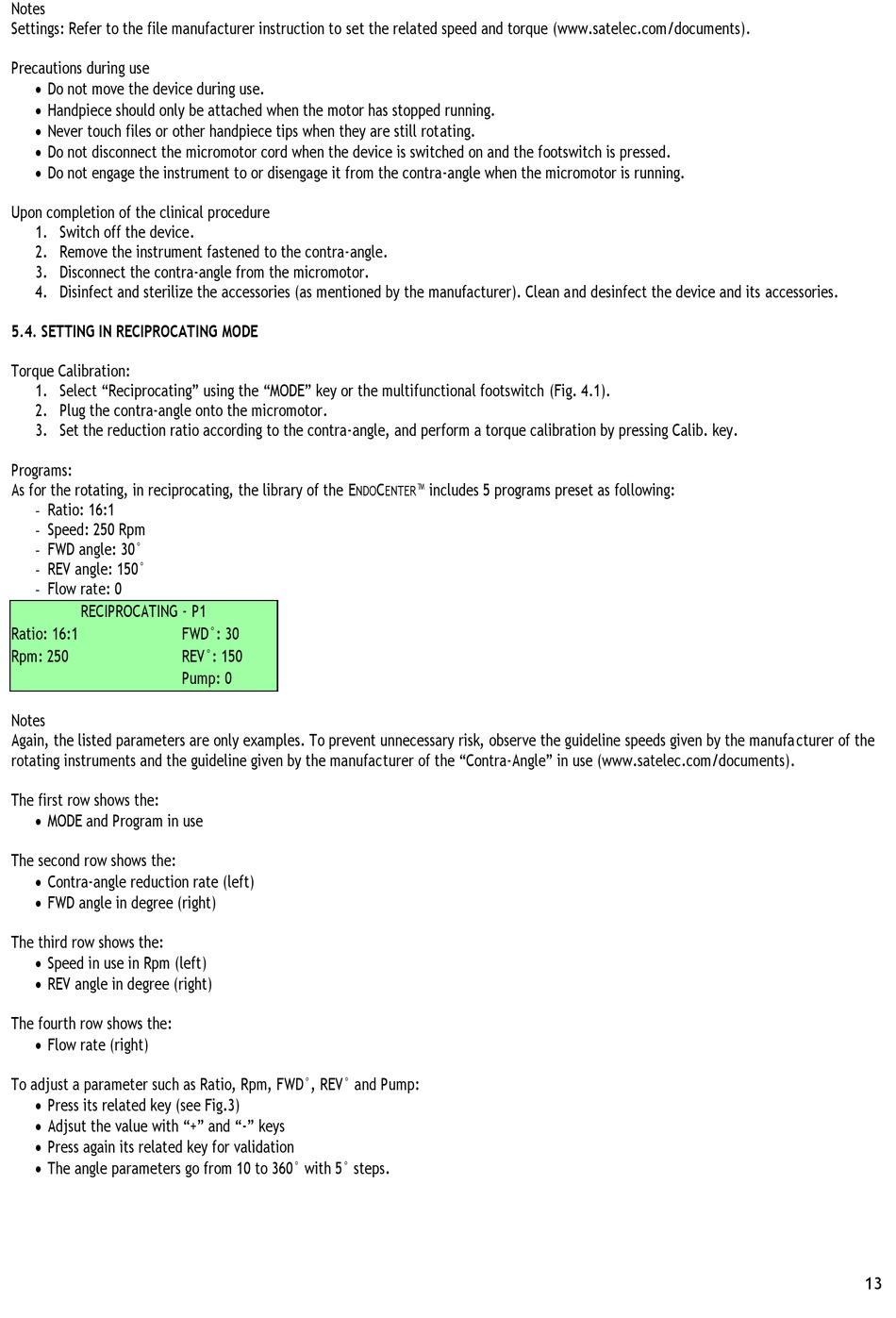

Notes
Settings: Refer to the file manufacturer instruction to set the related speed and torque (www.satelec.com/documents).
Precautions during use
 Do not move the device during use.
 Handpiece should only be attached when the motor has stopped running.
 Never touch files or other handpiece tips when they are still rotating.
 Do not disconnect the micromotor cord when the device is switched on and the footswitch is pressed.
 Do not engage the instrument to or disengage it from the contra-angle when the micromotor is running.
Upon completion of the clinical procedure
1. Switch off the device.
2. Remove the instrument fastened to the contra-angle.
3. Disconnect the contra-angle from the micromotor.
4. Disinfect and sterilize the accessories (as mentioned by the manufacturer). Clean and desinfect the device and its accessories.

5.4. SETTING IN RECIPROCATING MODE

Torque Calibration:
1. Select "Reciprocating" using the "MODE" key or the multifunctional footswitch (Fig. 4.1).
2. Plug the contra-angle onto the micromotor.
3. Set the reduction ratio according to the contra-angle, and perform a torque calibration by pressing Calib. key.
Programs:
As for the rotating, in reciprocating, the library of the E
- Ratio: 16:1
- Speed: 250 Rpm
- FWD angle: 30°
- REV angle: 150°
- Flow rate: 0
RECIPROCATING - P1
Ratio: 16:1
Rpm: 250
Notes
Again, the listed parameters are only examples. To prevent unnecessary risk, observe the guideline speeds given by the manufa cturer of the
rotating instruments and the guideline given by the manufacturer of the "Contra-Angle" in use (www.satelec.com/documents).
The first row shows the:
 MODE and Program in use
The second row shows the:
 Contra-angle reduction rate (left)
 FWD angle in degree (right)
The third row shows the:
 Speed in use in Rpm (left)
 REV angle in degree (right)
The fourth row shows the:
 Flow rate (right)
To adjust a parameter such as Ratio, Rpm, FWD°, REV° and Pump:
 Press its related key (see Fig.3)
 Adjsut the value with "+" and "-" keys
 Press again its related key for validation
 The angle parameters go from 10 to 360° with 5° steps.
FWD°: 30
REV°: 150
Pump: 0
C ™ includes 5 programs preset as following:
NDO ENTER
13
