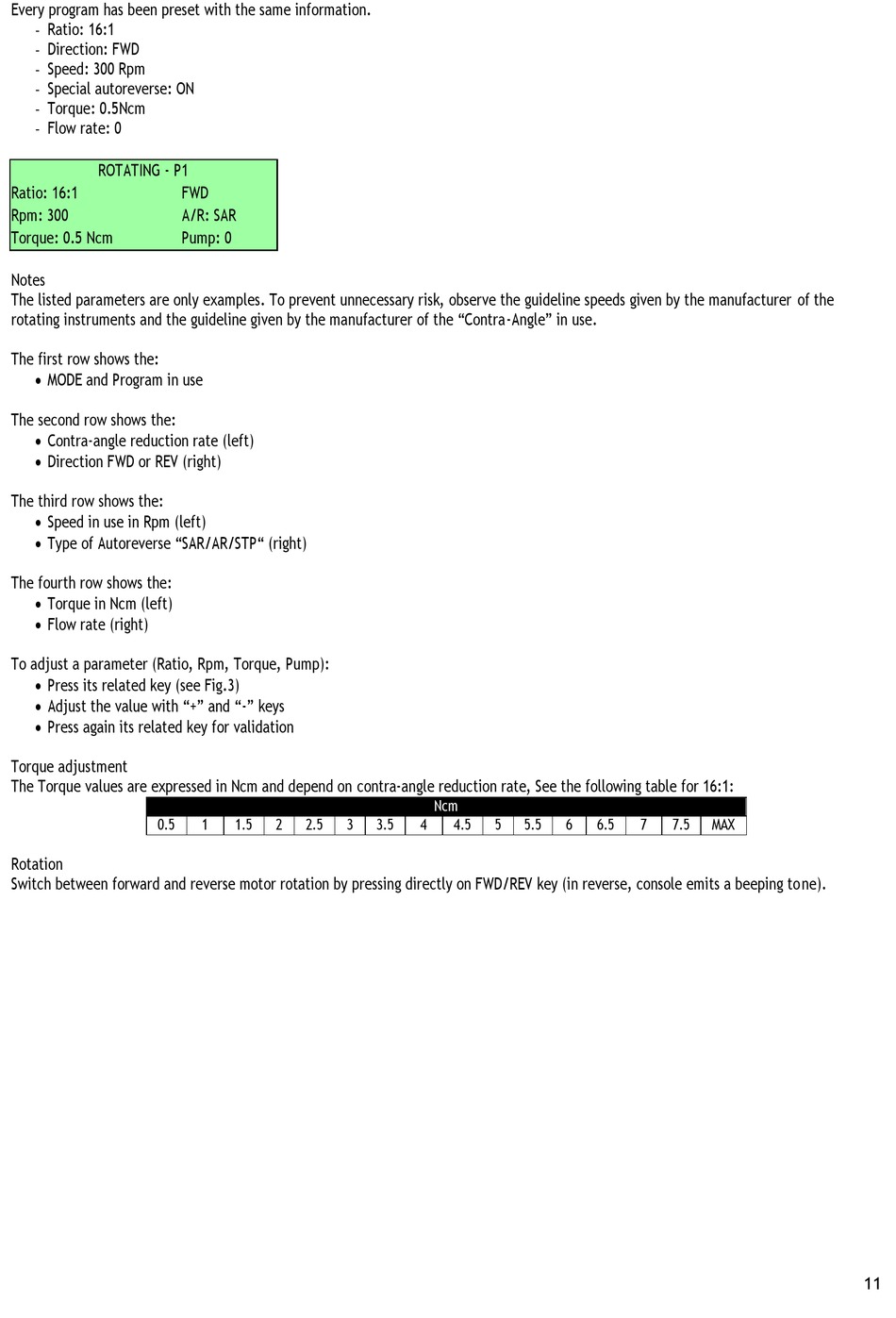

Every program has been preset with the same information.
- Ratio: 16:1
- Direction: FWD
- Speed: 300 Rpm
- Special autoreverse: ON
- Torque: 0.5Ncm
- Flow rate: 0
ROTATING - P1
Ratio: 16:1
Rpm: 300
Torque: 0.5 Ncm
Notes
The listed parameters are only examples. To prevent unnecessary risk, observe the guideline speeds given by the manufacturer of the
rotating instruments and the guideline given by the manufacturer of the "Contra-Angle" in use.
The first row shows the:
 MODE and Program in use
The second row shows the:
 Contra-angle reduction rate (left)
 Direction FWD or REV (right)
The third row shows the:
 Speed in use in Rpm (left)
 Type of Autoreverse "SAR/AR/STP" (right)
The fourth row shows the:
 Torque in Ncm (left)
 Flow rate (right)
To adjust a parameter (Ratio, Rpm, Torque, Pump):
 Press its related key (see Fig.3)
 Adjust the value with "+" and "-" keys
 Press again its related key for validation
Torque adjustment
The Torque values are expressed in Ncm and depend on contra-angle reduction rate, See the following table for 16:1:
0.5
Rotation
Switch between forward and reverse motor rotation by pressing directly on FWD/REV key (in reverse, console emits a beeping tone).
FWD
A/R: SAR
Pump: 0
1 1.5 2 2.5 3
Ncm
3.5 4 4.5 5 5.5 6 6.5 7 7.5 MAX
