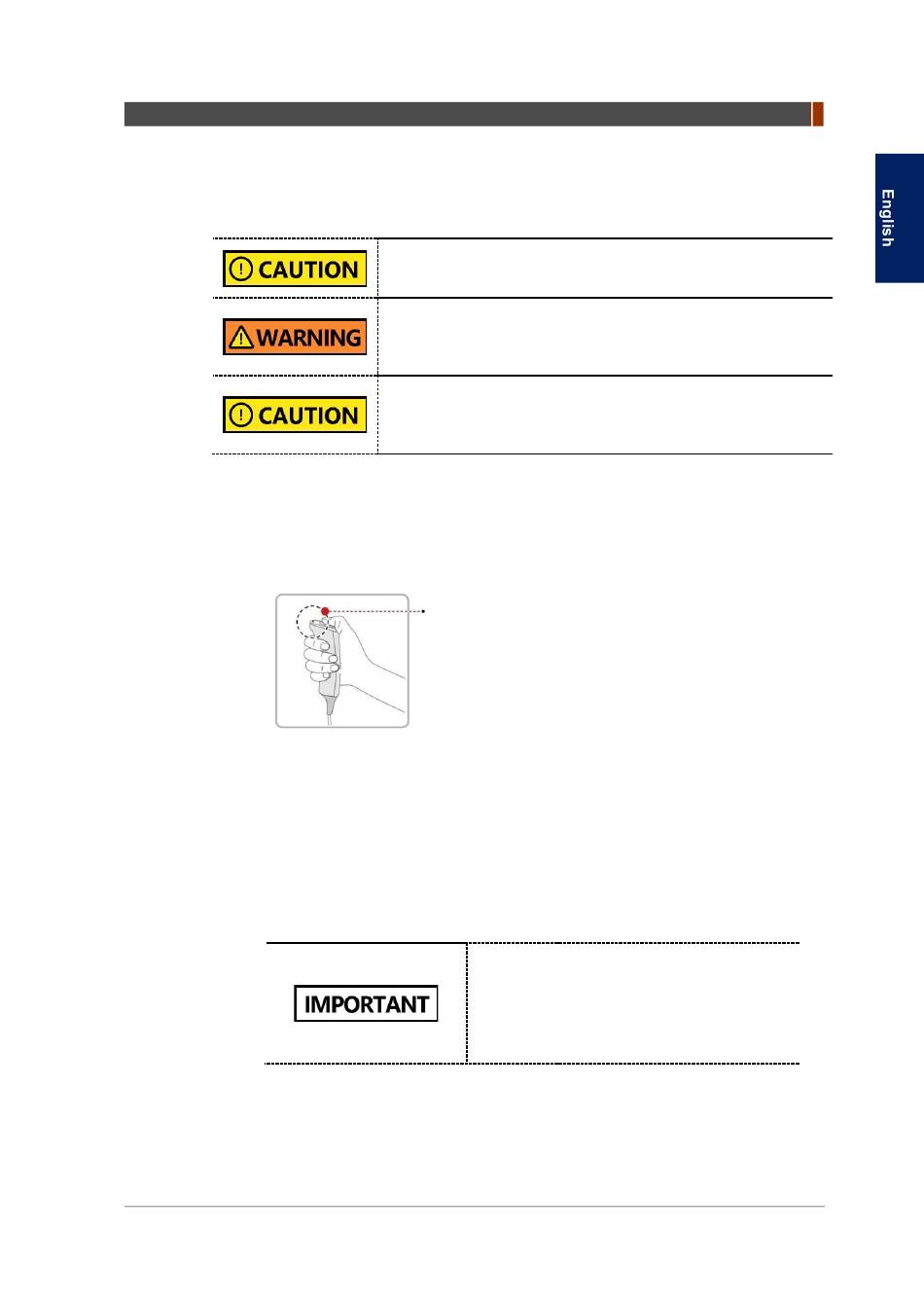

Acquiring Images

5.4
Follow the steps below to acquire an X-ray image.
Click Ready on the console software. X-ray emission does not start yet.
1.
Press the exposure switch when the message information window says,
2.
"Please press and hold the X-ray exposure switch until image capturing
is completed."
When you press the exposure switch,
▪
▪
▪
Release the exposure switch when the message information window says,
3.
"Image capturing is complete."
Green X 12 TM (Model: PHT-75CHS) User Manual
DO NOT use the PC while capturing an image. This can
cause a problem with equipment or software's operation.
In an emergency, release the exposure switch and press
the emergency stop switch. The equipment immediately
stops after pressing the switch.
Stay in communication with the patient during the image
capture. The user must be able to communicate with the
patients visually or verbally for their safety.
Yellow: X-ray On
The LED on the vertical unit turns yellow.
The LED on the exposure switch flickers yellow.
The X-ray exposure status on the console software turns yellow.
DO NOT release the exposure switch until
you see the message. Early release of the
exposure switch can disturb the image
capture.
5. How to Acquire CEPH Images (Optional)
73
