Acquiring Images

7.3
Follow the steps below to acquire an X-ray image.
Click Ready on the console software. X-ray emission does not start yet.
1.

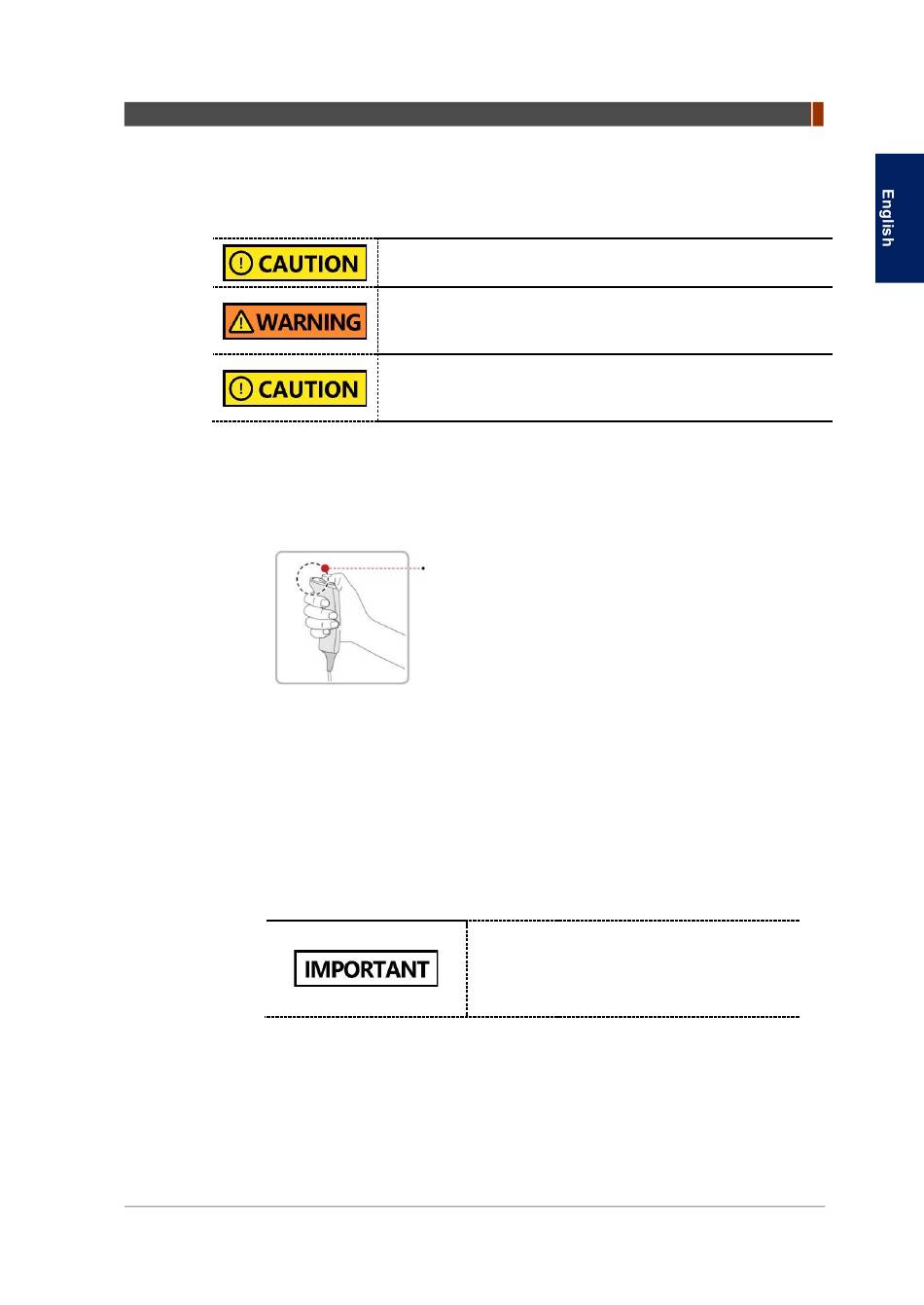

Press the exposure switch when the message information window says,
2.
"Please press and hold the X-ray exposure switch until image capturing
is completed."
When you press the exposure switch,
▪
▪
▪
Release the switch when you see a message on the message information
3.
window, saying "Image capturing is complete."
Green X 12 TM (Model: PHT-75CHS) User Manual
DO NOT use the PC while capturing an image. This can
cause a problem with equipment or software's operation.
Release the exposure switch and press the emergency
stop switch in an emergency. The equipment immediately
stops its operation.
Ensure to keep communication with the patient either
visually or verbally during the image capture for his or her
safety.
Yellow: X-ray On
The LED on the vertical unit turns yellow.
The LED on the exposure switch flickers yellow.
The X-ray exposure status on the console software turns yellow.
DO NOT release the switch until you see
the message. Image acquisition can be
interrupted in the middle if you release the
switch before the image capture ends.
7. How to Acquire 3D Model Scan Images
107
