7. How to Acquire 3D Model Scan Images

Model Positioning

7.2

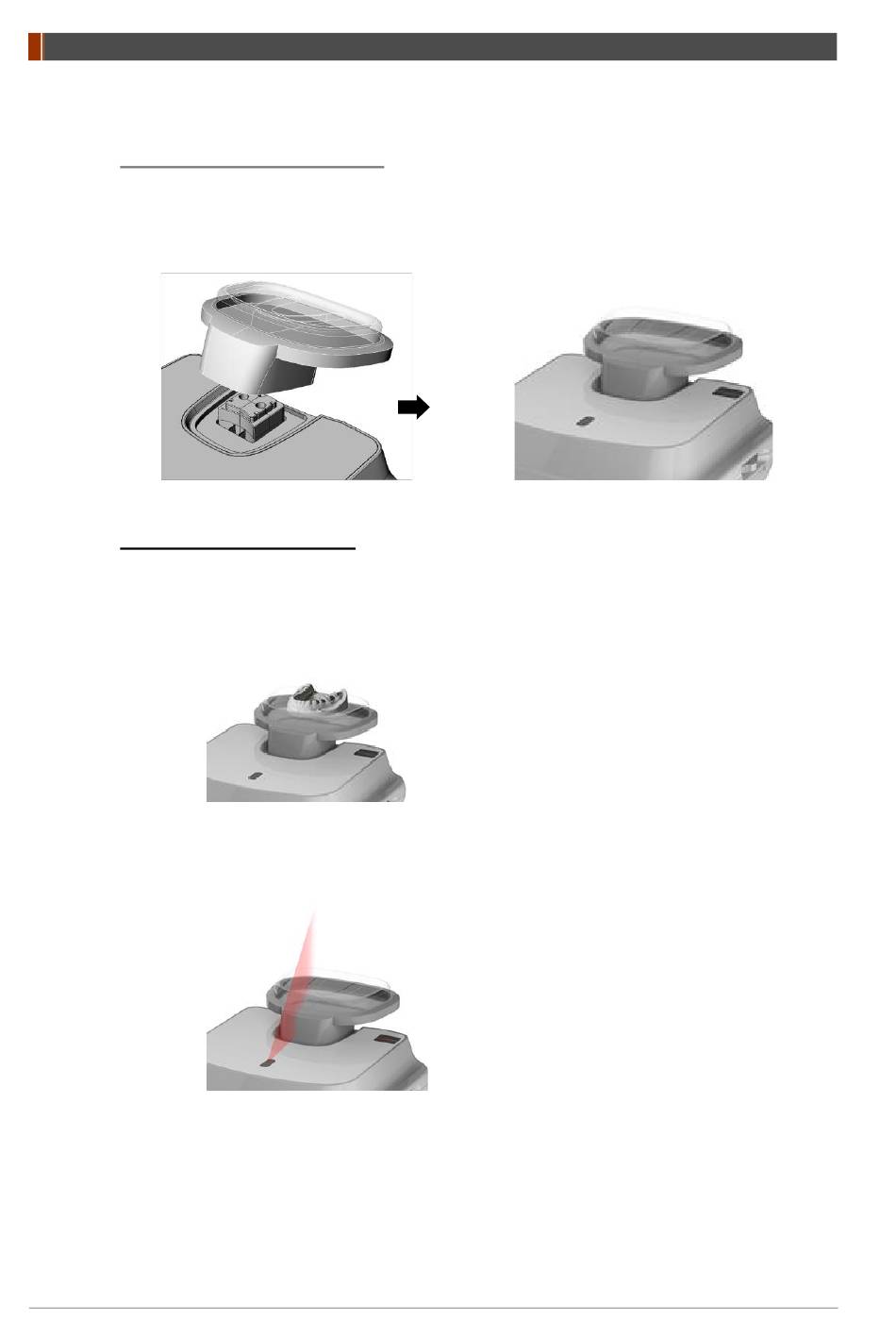

Installing a Model Scan Jig
Remove the Temple Supports and the chinrest.
1.
Insert the MODEL scan Jig.
2.
Positioning Laser Beam
Put the Plaster Cast on the MODEL Scan Jig. (Whether the Plaster Cast is for
1.
Maxilla or Mandibular, place it flat side down.)
Align the Mid-sagittal plane Laser Beam to the center of the Plaster Cast. (To
2.
prevent the horizontal expansion of the image)
