5. How to Acquire CEPH Images (Optional)
Waters' View Mode
5.3.4
Follow the steps below to position the patient for the water's view mode:
Remove all metal objects that the patient wears.
1.
Turn the nasal positioner to the Water's view marker and fold the positioner up.
2.
Use the column up/down button to adjust the equipment's height.
3.
Make a space between two ear rods for the patient's head.
4.
Ask the patient to stand straight, facing the X-ray sensor.
5.
Slid the ear rods until their tips gently touch the patient's outer ear canals.
6.

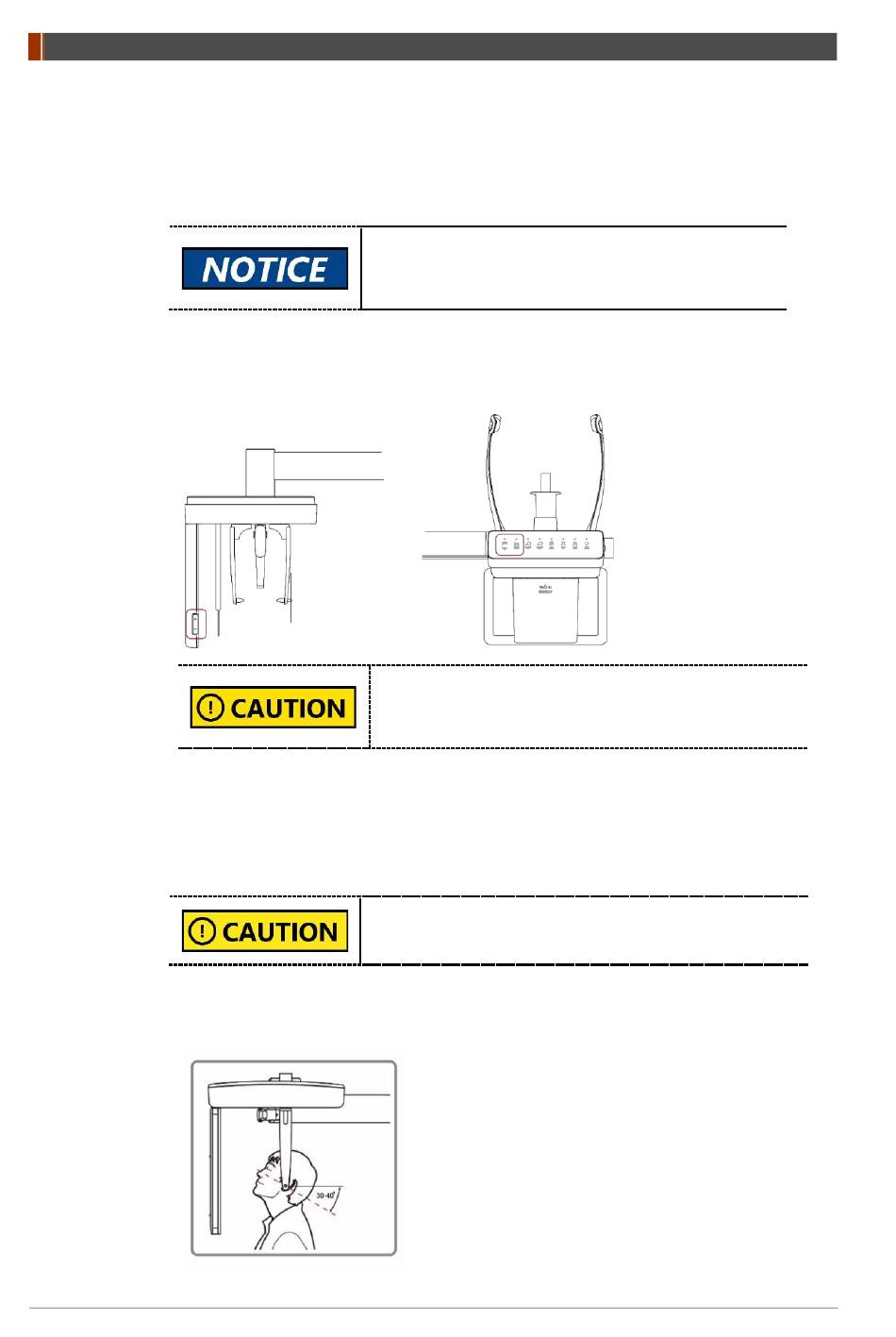

Ask the patient to tilt his or her neck back to 30˚~ 40, as shown in the image
7.
below.
70
Metal objects can cause ghosts or shadows on
the X-ray image and lower the image quality.
Ensure that the patient does not collide with the
equipment while in motion.
DO NOT slide ear rods until adjusting the
equipment's height is finished.
