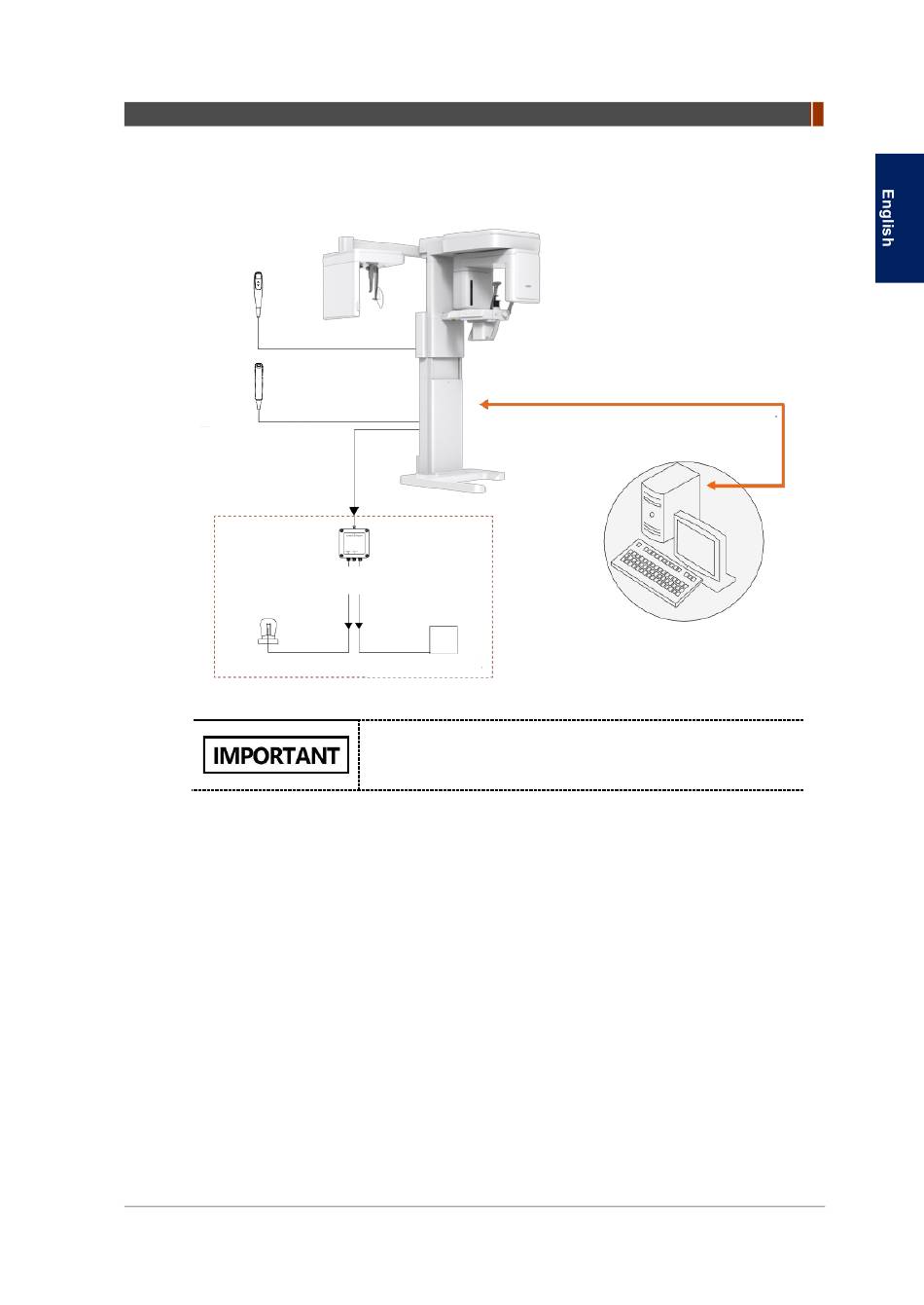

Imaging System Configuration

1.6
UP/DOWN switch
(Optional)
Exposure switch
Warning system panel
Warning lamp
Green X 12 TM (Model: PHT-75CHS) User Manual
Door interlock
(Optional)
Ensure to use the PC outside of the patient environment
such as X-ray (Radiology room).
1. Imaging System Overview
Fiber Optic Cable 10m (32.8"):
For PANO, CEPH (Optional) and CBCT
PC w/ imaging and image
viewer programs
13
