Ask the patient to enter the equipment and give the following instructions:
4.
▪ Grab handles with both hands and stand straight.
▪ Place the chin on the chinrest.
Gently bite on the bite block's groove with front teeth.
▪
Adjust the patient's position according to the laser beam's location.
5.
The vertical beam must be aligned with the patient's mid-sagittal
▪
plane. If necessary, center the patient's head.
▪ The horizontal beam must be aligned with the patient's Frankfurt
plane. Use the beam up/down button to change the beam's location.
Check if the shoulder beam touches the patient's shoulder. If
▪
necessary, ask the patient to lower his or her shoulder.

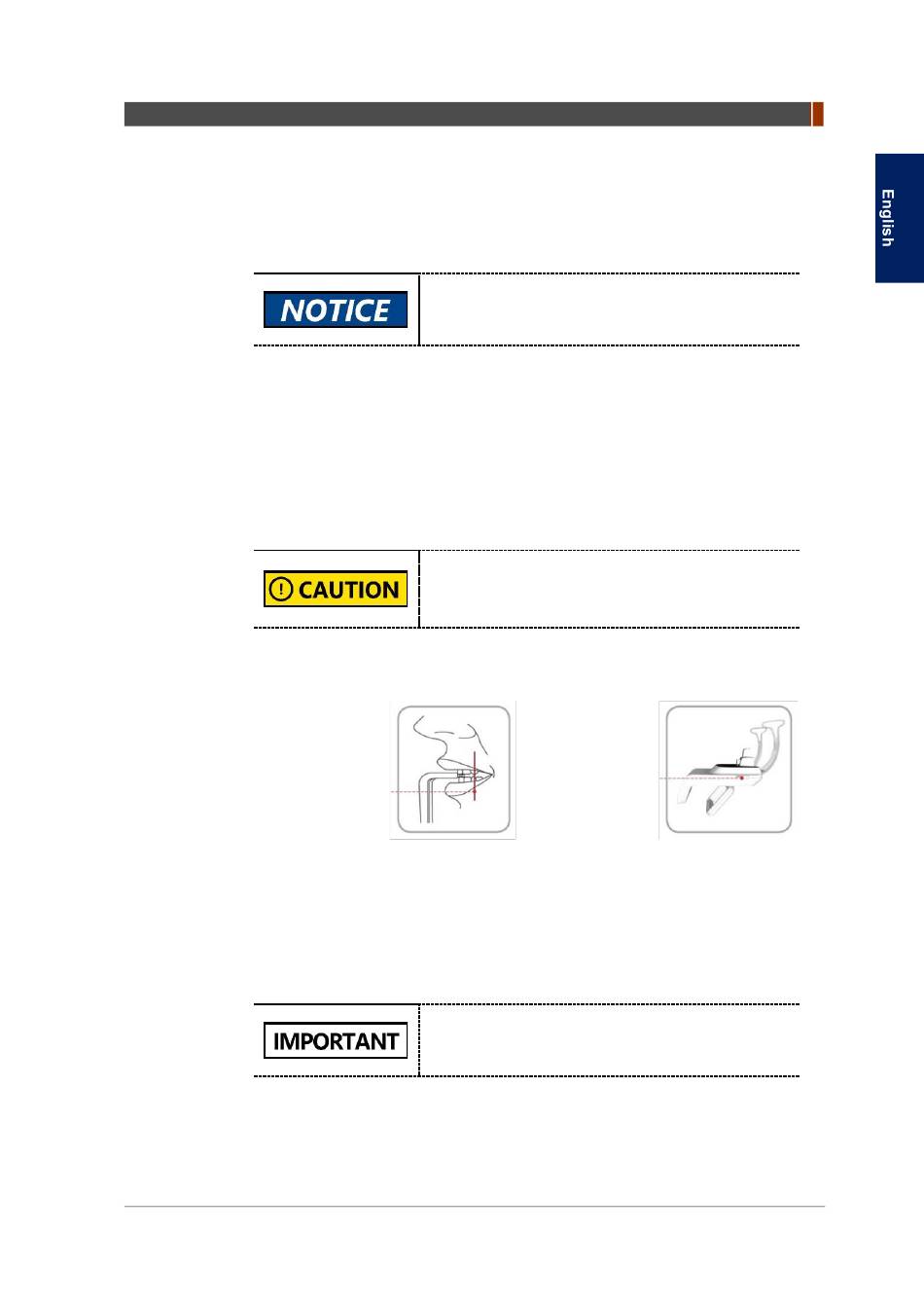

Check if the canine beam comes at the patient's canine tooth. If necessary,
6.
use the canine teeth beam lever to change the beam's location.
Canine Teeth Beam
Ask the patient to place his or her tongue on the roof of the mouth and close
7.
eyes.
Turn the temple supports knob to close the temple supports to secure the
8.
patient's head.
Leave the X-ray room and follow the instructions in 4.4 Acquiring Images.
9.
Green X 12 TM (Model: PHT-75CHS) User Manual
4. How to Acquire PANO Images
Instruct the patient to gently bite the bite block's
groove with his or her front teeth.
To prevent vision loss, ensure that the patient's
eyes do not meet the laser beam during
positioning.
Canine Teeth
Beam Lever
Review the patient's position before leaving the X-
ray room. If necessary, reposition the patient.
