4. How to Acquire PANO Images
TMJ Mode (LAT/ PA)
4.3.2
Follow the steps below to position the patient. In the TMJ mode, the system captures
images, following a sequence from TMJ open to TMJ close.
Insert the special bite A into the chinrest.
1.
Remove all metal objects that the patient wears.
2.
Ask the patient to wear a lead apron. If necessary, help the patient to put on
3.
the apron.
Use the column up/down button to adjust the column's height for the patient.
4.

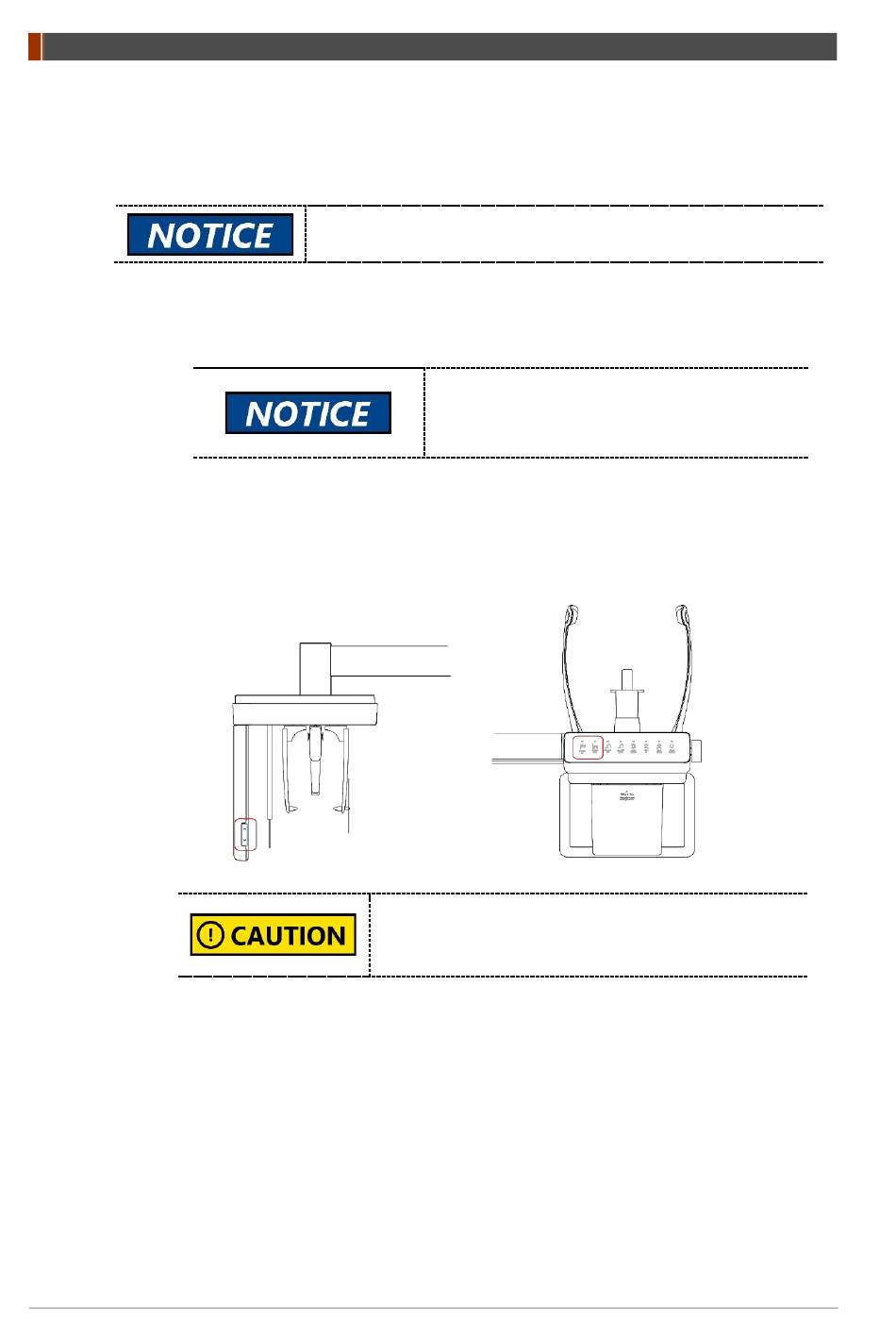

the buttons can be found in the following location.
Ask the patient to enter the equipment and give the following instructions:
5.
▪
▪
▪
52
When scanning for the TMJ mode, position the patient first
for the TMJ open mode, then for the TMJ close mode.
Ensure that the patient does not collide with the
equipment while in motion.
Stand straight.
Grab handles with both hands.
Place the chin on the chinrest.
Green X 12
Metal objects can cause ghosts or shadows
on the X-ray image and lower the image
quality.
(Model: PHT-75CHS) User Manual
