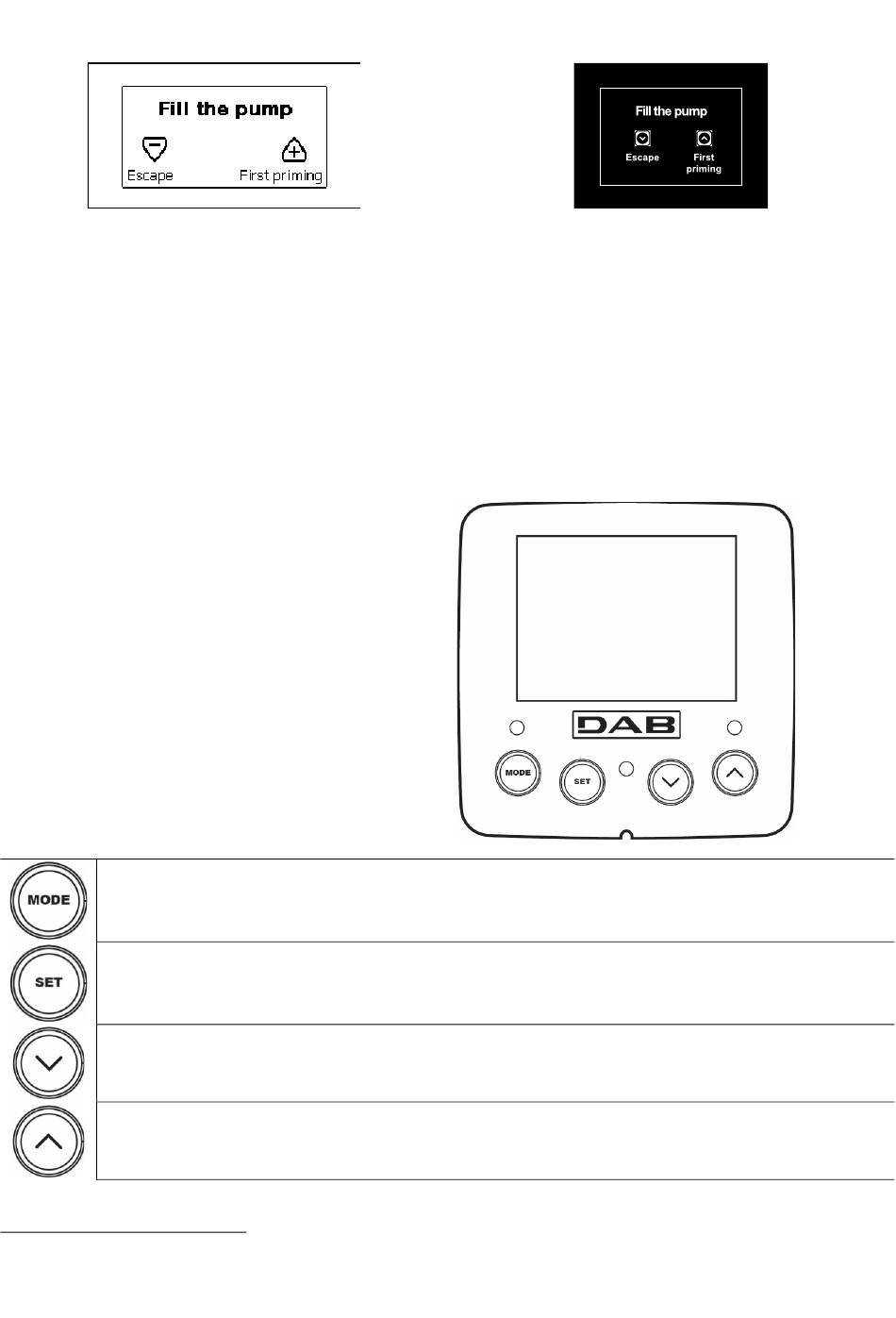

Figure 11.1: Priming PopUp
When "˄" is pressed the pump enters the priming procedure: it starts working for a maximum time of 5 minutes during which the safety block for
dry operation is not tripped. The priming time depends on various parameters, the most influential of which are the depth of the water level from
which it is drawing, the diameter of the suction pipe
smaller than 1" and that it is well sealed (with no holes or joins from which it can take in air), the product has been studied to manage to prime in
water conditions up to 8m in depth in a time of less than 5 minutes. As soon as the product detects a regular flow in delivery, it leaves the priming
procedure and starts its regular work. The utility opened in delivery from which the pumped water is coming out can be closed. If after 5 minutes
of the procedure the product is still not primed, the interface display sends a failure message. Disconnect the power supply, load the product
adding new water, wait 10 minutes and repeat the procedure from the moment you put the plug in the socket.
Press "˅" to confirm that you do not want to start the priming procedure. The product remains in alarm status.
Operation
Once the electropump is primed, the system starts regular operation according to the configured parameters: it starts automatically when the tap is
turned on, supplies water at the set pressure (SP), keeps the pressure constant even when other taps are turned on, stops automatically after time
T2 once the switching off conditions are reached (T2 can be set by the user, factory value 10 sec).
4. THE KEYPAD AND THE DISPLAY
The user interface is composed of a keypad with 320x240 pixel LCD
display and with POWER, COMM, ALARM warning LEDs as can be
seen in Fig.12.
The display shows the values and the statuses of the device, with
indications on the functionality of the various parameters.
The functions of the keys are summed up in Table 5.
The MODE key allows you to move on to the next items in the same menu. Holding it down for at least 1 sec allows you to skip
to previous menu item.
The SET key allows you to leave the current menu.
Decreases the current parameter (if it is an editable parameter).
Increases the current parameter (if it is an editable parameter).
(2) Applicable to firmware versions ≤ 4.x.x
(3) Applicable to firmware releases ≥ 4.3.x with integrated connectivity
(4) Applicable to firmware releases ≥ 4.4.x with integrated connectivity and Multiple Groups functions
ENGLISH
(2)
and the water-tightness of the suction pipe. On condition that a suction pipe is used that is no
Figure 12
Table 5
48
Figure 11.2: Priming PopUp
(3) (4)
