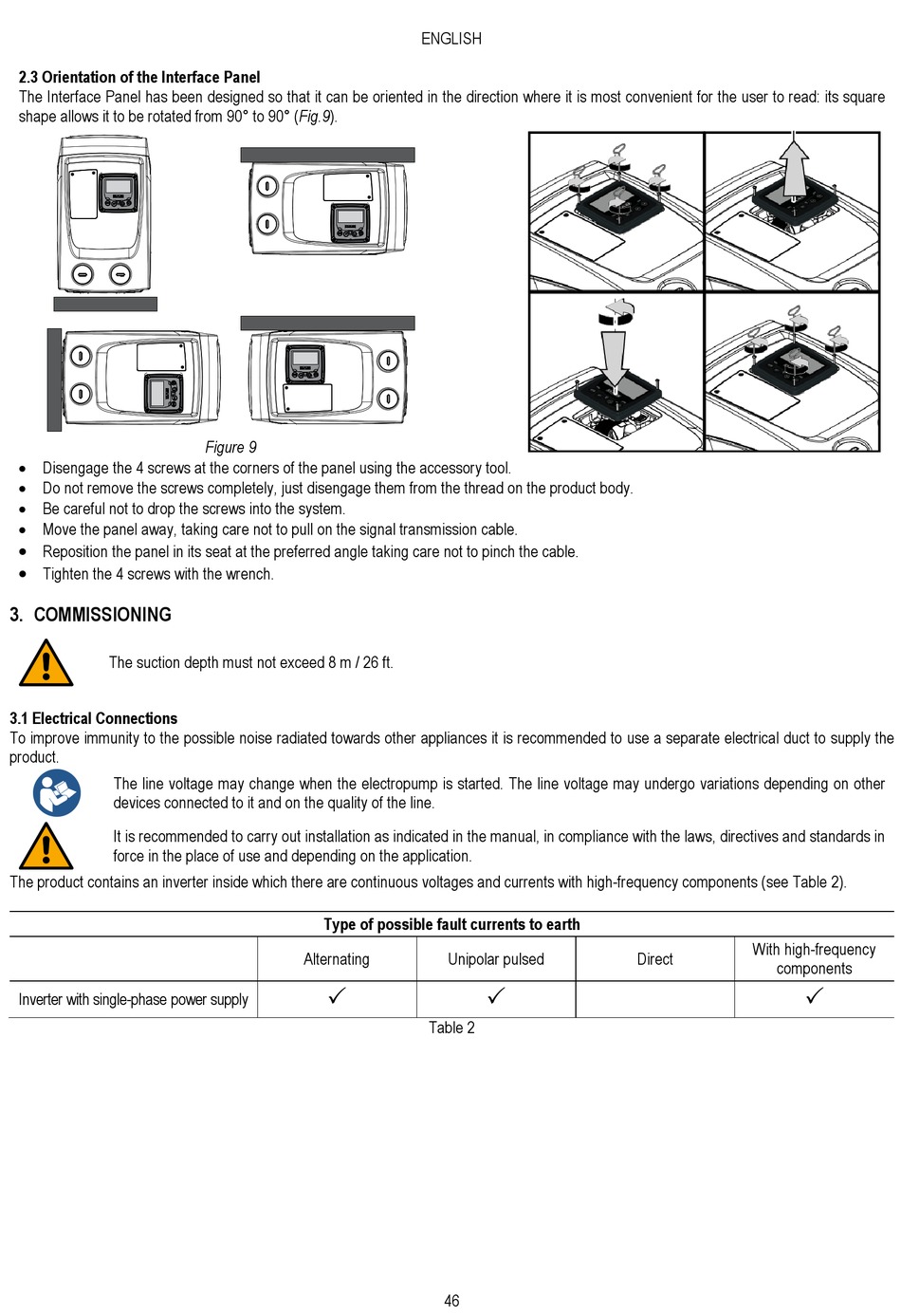

2.3 Orientation of the Interface Panel
The Interface Panel has been designed so that it can be oriented in the direction where it is most convenient for the user to read: its square
shape allows it to be rotated from 90° to 90° (Fig.9).
• Disengage the 4 screws at the corners of the panel using the accessory tool.
• Do not remove the screws completely, just disengage them from the thread on the product body.
• Be careful not to drop the screws into the system.
• Move the panel away, taking care not to pull on the signal transmission cable.
•
Reposition the panel in its seat at the preferred angle taking care not to pinch the cable.
•
Tighten the 4 screws with the wrench.
3. COMMISSIONING
The suction depth must not exceed 8 m / 26 ft.
3.1 Electrical Connections
To improve immunity to the possible noise radiated towards other appliances it is recommended to use a separate electrical duct to supply the
product.
The line voltage may change when the electropump is started. The line voltage may undergo variations depending on other
devices connected to it and on the quality of the line.
It is recommended to carry out installation as indicated in the manual, in compliance with the laws, directives and standards in
force in the place of use and depending on the application.
The product contains an inverter inside which there are continuous voltages and currents with high-frequency components (see Table 2).
Inverter with single-phase power supply
Figure 9
Type of possible fault currents to earth
Alternating

ENGLISH
Unipolar pulsed

Table 2
46
With high-frequency
Direct
components

