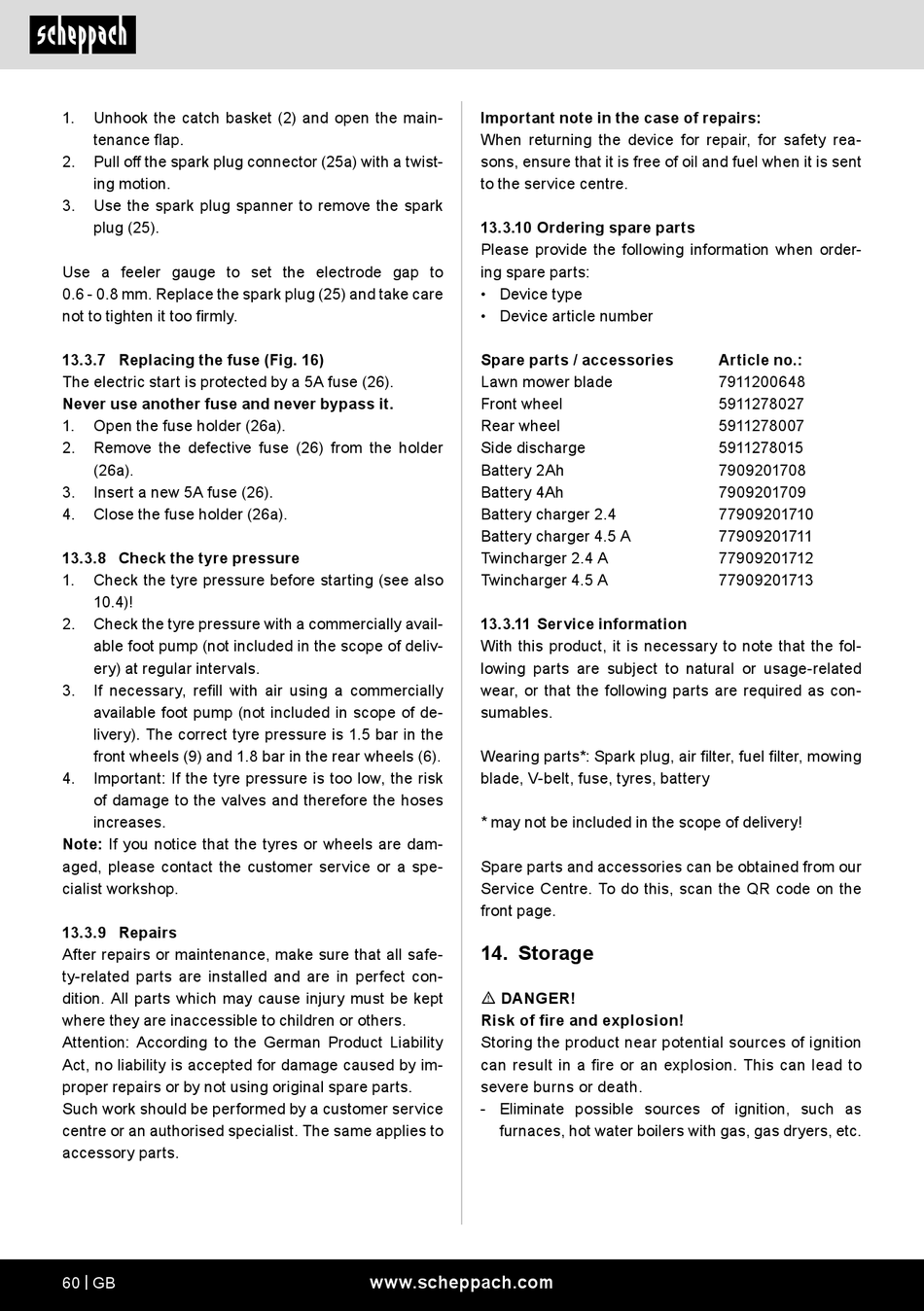

1.
Unhook the catch basket (2) and open the main-
tenance flap.
2.
Pull off the spark plug connector (25a) with a twist-
ing motion.
3.
Use the spark plug spanner to remove the spark
plug (25).
Use a feeler gauge to set the electrode gap to
0.6 - 0.8 mm. Replace the spark plug (25) and take care
not to tighten it too firmly.
13.3.7 Replacing the fuse (Fig. 16)
The electric start is protected by a 5A fuse (26).
Never use another fuse and never bypass it.
1.
Open the fuse holder (26a).
2.
Remove the defective fuse (26) from the holder
(26a).
3.
Insert a new 5A fuse (26).
4.
Close the fuse holder (26a).
13.3.8 Check the tyre pressure
1.
Check the tyre pressure before starting (see also
10.4)!
2.
Check the tyre pressure with a commercially avail-
able foot pump (not included in the scope of deliv-
ery) at regular intervals.
3.
If necessary, refill with air using a commercially
available foot pump (not included in scope of de-
livery). The correct tyre pressure is 1.5 bar in the
front wheels (9) and 1.8 bar in the rear wheels (6).
4.
Important: If the tyre pressure is too low, the risk
of damage to the valves and therefore the hoses
increases.
Note: If you notice that the tyres or wheels are dam-
aged, please contact the customer service or a spe-
cialist workshop.
13.3.9 Repairs
After repairs or maintenance, make sure that all safe-
ty-related parts are installed and are in perfect con-
dition. All parts which may cause injury must be kept
where they are inaccessible to children or others.
Attention: According to the German Product Liability
Act, no liability is accepted for damage caused by im-
proper repairs or by not using original spare parts.
Such work should be performed by a customer service
centre or an authorised specialist. The same applies to
accessory parts.
60 | GB
Important note in the case of repairs:
When returning the device for repair, for safety rea-
sons, ensure that it is free of oil and fuel when it is sent
to the service centre.
13.3.10 Ordering spare parts
Please provide the following information when order-
ing spare parts:
• Device type
• Device article number
Spare parts / accessories
Lawn mower blade
Front wheel
Rear wheel
Side discharge
Battery 2Ah
Battery 4Ah
Battery charger 2.4
Battery charger 4.5 A
Twincharger 2.4 A
Twincharger 4.5 A
13.3.11 Service information
With this product, it is necessary to note that the fol-
lowing parts are subject to natural or usage-related
wear, or that the following parts are required as con-
sumables.
Wearing parts*: Spark plug, air filter, fuel filter, mowing
blade, V-belt, fuse, tyres, battery
* may not be included in the scope of delivery!
Spare parts and accessories can be obtained from our
Service Centre. To do this, scan the QR code on the
front page.
14. Storage
m DANGER!
Risk of fire and explosion!
Storing the product near potential sources of ignition
can result in a fire or an explosion. This can lead to
severe burns or death.
- Eliminate possible sources of ignition, such as
furnaces, hot water boilers with gas, gas dryers, etc.
www.scheppach.com
Article no.:
7911200648
5911278027
5911278007
5911278015
7909201708
7909201709
77909201710
77909201711
77909201712
77909201713
