D-6 Compaq StorageWorks RAID Array 4100 Benutzerhandbuch
2
StorageWorks
link
fault
reset link link link link
power
fault fault fault fault
4

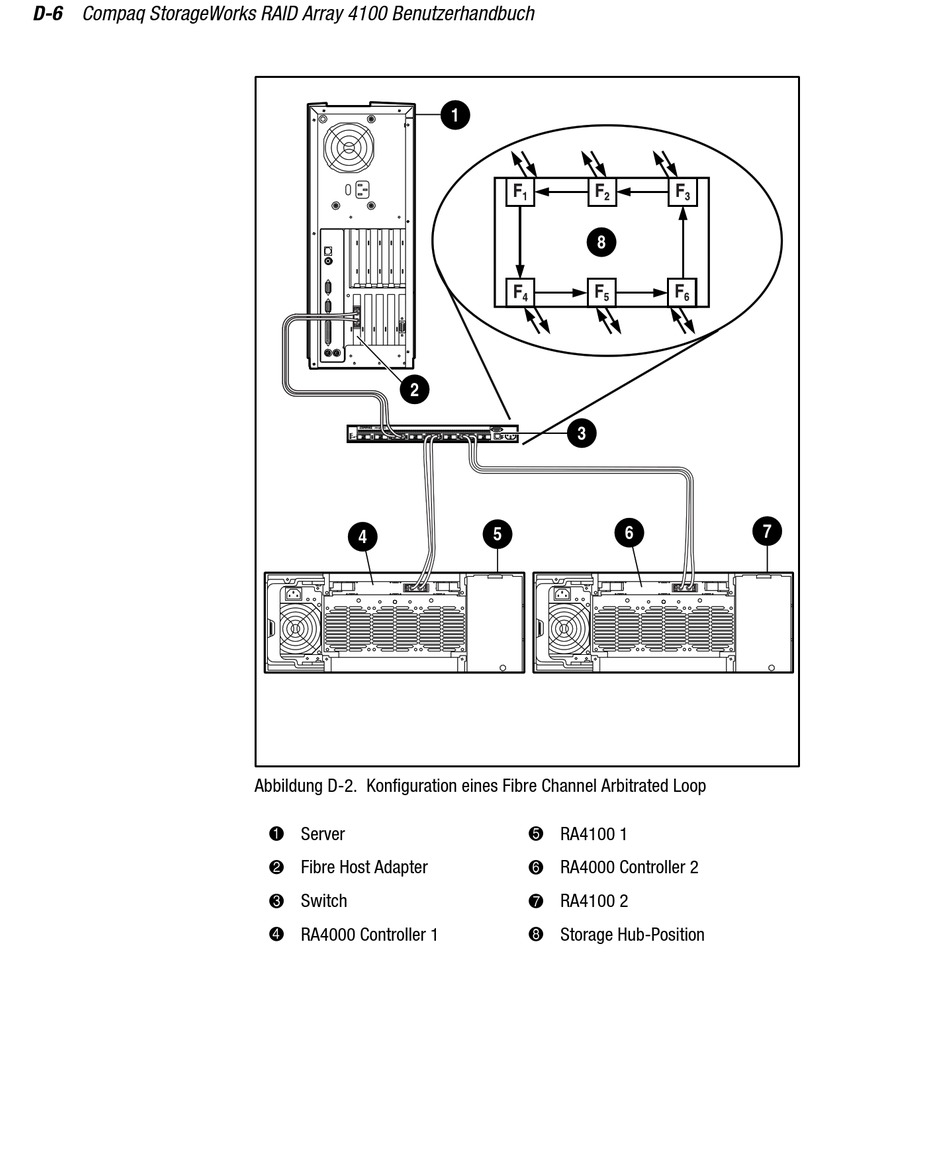

Abbildung D-2. Konfiguration eines Fibre Channel Arbitrated Loop
1 Server
2 Fibre Host Adapter
3 Switch
4 RA4000 Controller 1
1
8
3
RS-232
act
link link link
link
fault fault fault
Ethernet
5
5 RA4100 1
6 RA4000 Controller 2
7 RA4100 2
8 Storage Hub-Position
7
6
