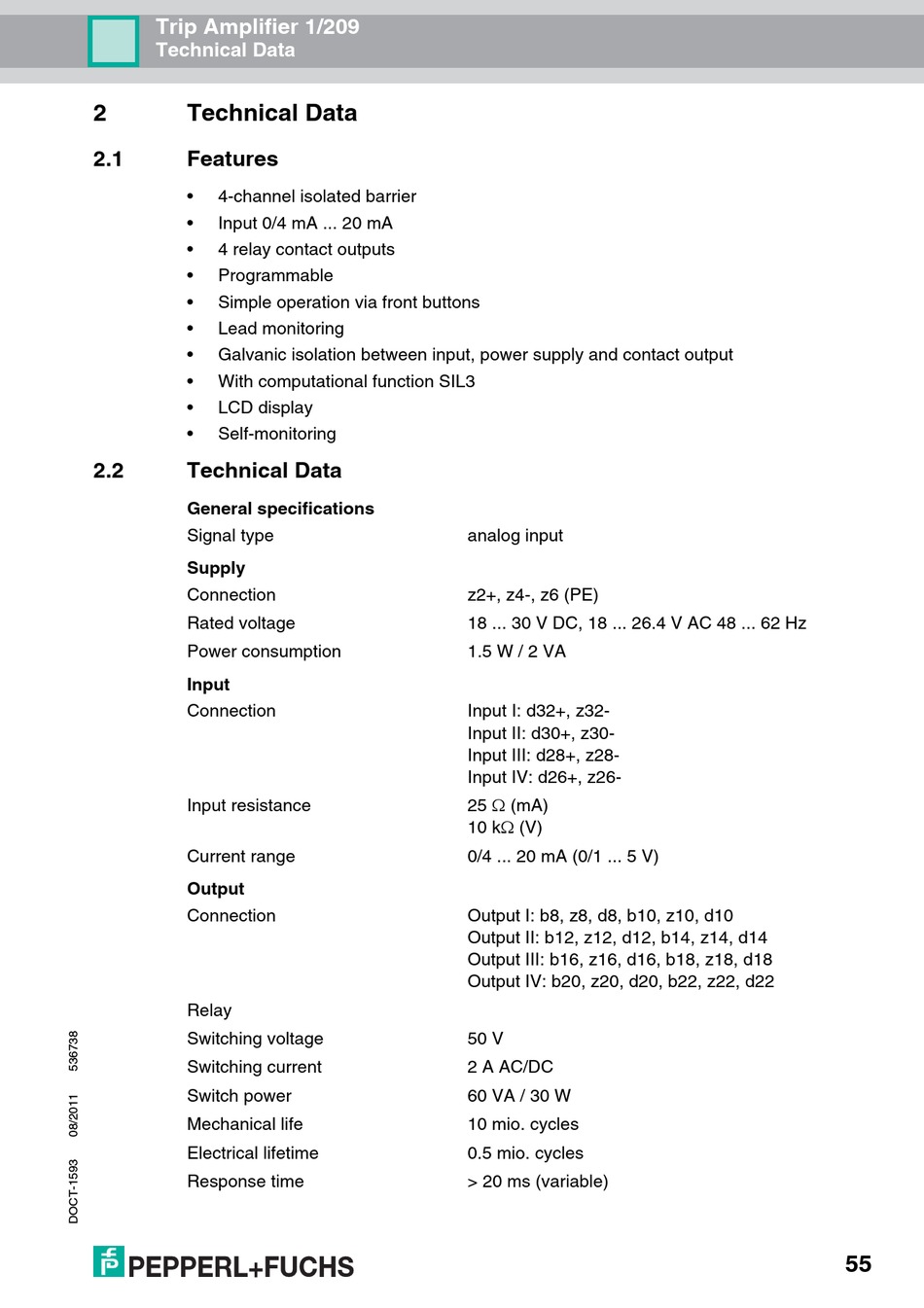

Trip Amplifier 1/209
Technical Data
2
Technical Data
2.1
Features
•
4-channel isolated barrier
•
Input 0/4 mA ... 20 mA
•
4 relay contact outputs
•
Programmable
•
Simple operation via front buttons
•
Lead monitoring
•
Galvanic isolation between input, power supply and contact output
•
With computational function SIL3
•
LCD display
•
Self-monitoring
2.2
Technical Data
General specifications
Signal type
Supply
Connection
Rated voltage
Power consumption
Input
Connection
Input resistance
Current range
Output
Connection
Relay
Switching voltage
Switching current
Switch power
Mechanical life
Electrical lifetime
Response time
analog input
z2+, z4-, z6 (PE)
18 ... 30 V DC, 18 ... 26.4 V AC 48 ... 62 Hz
1.5 W / 2 VA
Input I: d32+, z32-
Input II: d30+, z30-
Input III: d28+, z28-
Input IV: d26+, z26-
25 (mA)
10 k (V)
0/4 ... 20 mA (0/1 ... 5 V)
Output I: b8, z8, d8, b10, z10, d10
Output II: b12, z12, d12, b14, z14, d14
Output III: b16, z16, d16, b18, z18, d18
Output IV: b20, z20, d20, b22, z22, d22
50 V
2 A AC/DC
60 VA / 30 W
10 mio. cycles
0.5 mio. cycles
> 20 ms (variable)
55
