13 Kiwa function (low input
pressure signal)
PR=0
Remote pressure sensor
disabled
PR=1
Use of remote pressure
sensor
The activation of the function relating to this box + any other function in safety mode triggers a system stop. In this case, the system displays
(1)
the highest priority stoppage cause.
The numbers separated by commas indicate the possible setting values for the function concerned.
(2)
Instead, as regards the control unit, if there is a loss of communication it lights relay 1 depending on the settings of O1 (see tab. 21) considering
the lack of communication an error condition.

7.1.4 Control unit function setup

The default value of all the inputs and the remote pressure sensor is DISABLE, so before they can be used, they must be activated by the user;
see par. 9.6 - Setup of auxiliary digital inputs IN1, IN2, IN3, IN4, pressure sensor par. 9.5 - PR: Remote pressure sensor.
The outputs are enabled by default, see output functions par. 9.6 - Setup of outputs OUT1, OUT2.
The outputs are enabled by default, see output functions point 9.6 - Setup of outputs OUT1, OUT2.
If no control unit has been associated, the input, output and remote pressure sensor functions are ignored and have no effect, regardless of their
setups. The control unit parameters (inputs, outputs and pressure sensors) can be set even if the connection is down or even not made.
If the control unit is associated (it is included in the e.sybox's wireless network) but is not present or not visible due to problems, when the
parameters related to these functions are set at a value other than disable they blink to indicate that they will not be able to fulfil their functions.

7.1.5 Association and disassociation of e.sybox and control unit

The procedure for associating a control unit to an e.sybox is the same as for associating an e.sybox:
locate the AS page of the installer menu and hold down the "+" key for 5 sec., until the blue LED blinks (whether the e.sybox is stand-alone or in
a group). After this, press the ► key for 5 sec. until the blue communication LED starts to blink. As soon as the connection has been established,
the LED becomes steady and the e.sylink symbol appears on the AS page of the e.sybox.
The procedure for disassociating the e.sylink is the same as for the e.sybox: locate the AS page of the installer menu and hold down the "-" key
for 5 sec; this will eliminate all the wireless connections present.

8. THE KEYPAD AND THE DISPLAY

The user interface is composed of a keypad with 128x240 pixel LCD display and with POWER, COMM, ALARM warning leds as can be seen in
Figure 13. The display shows the values and the statuses of the device, with indications on the functionality of the various parameters.
The functions of the keys are summed up in Table 7.
The MODE key allows you to move on to the next items in the same menu. Holding it down
for at least 1 sec allows you to skip to previous menu item.
The SET key allows you to leave the current menu.
Decreases the current parameter (if it is an editable parameter).
Increases the current parameter (if it is an editable parameter).
Holding down the "+" key or the "-" key allows the automatic increase/decrease of the parameter selected. After the "+" key or the "-" key has
been held down for 3 seconds, the automatic increase/decrease speed increases.
No action
No action
No action
Setpoint on remote sensor
ENGLISH
No action
No action

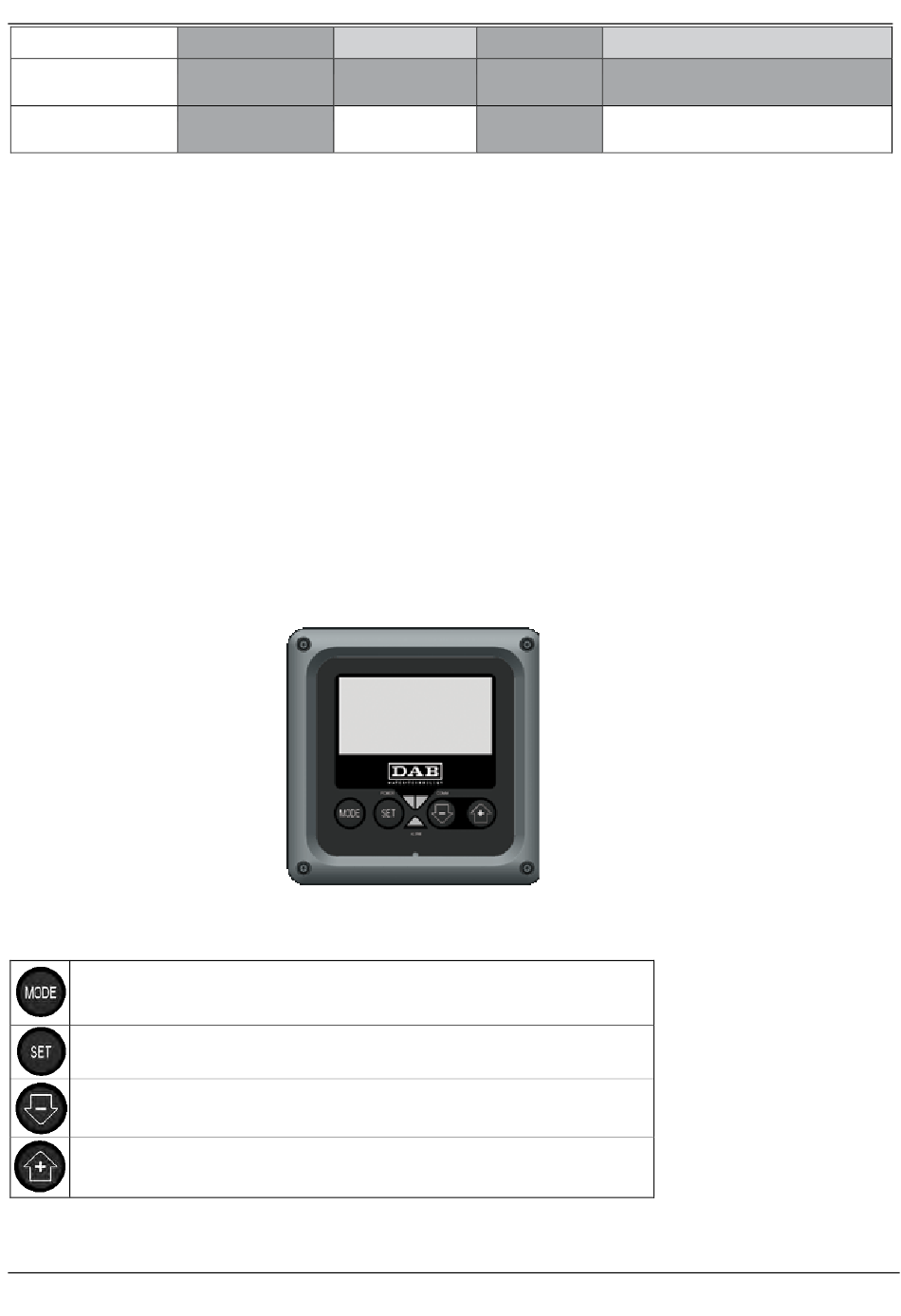

Figure 13: Aspect of the user interface
49
No action
No action
Table 7: Key functions
