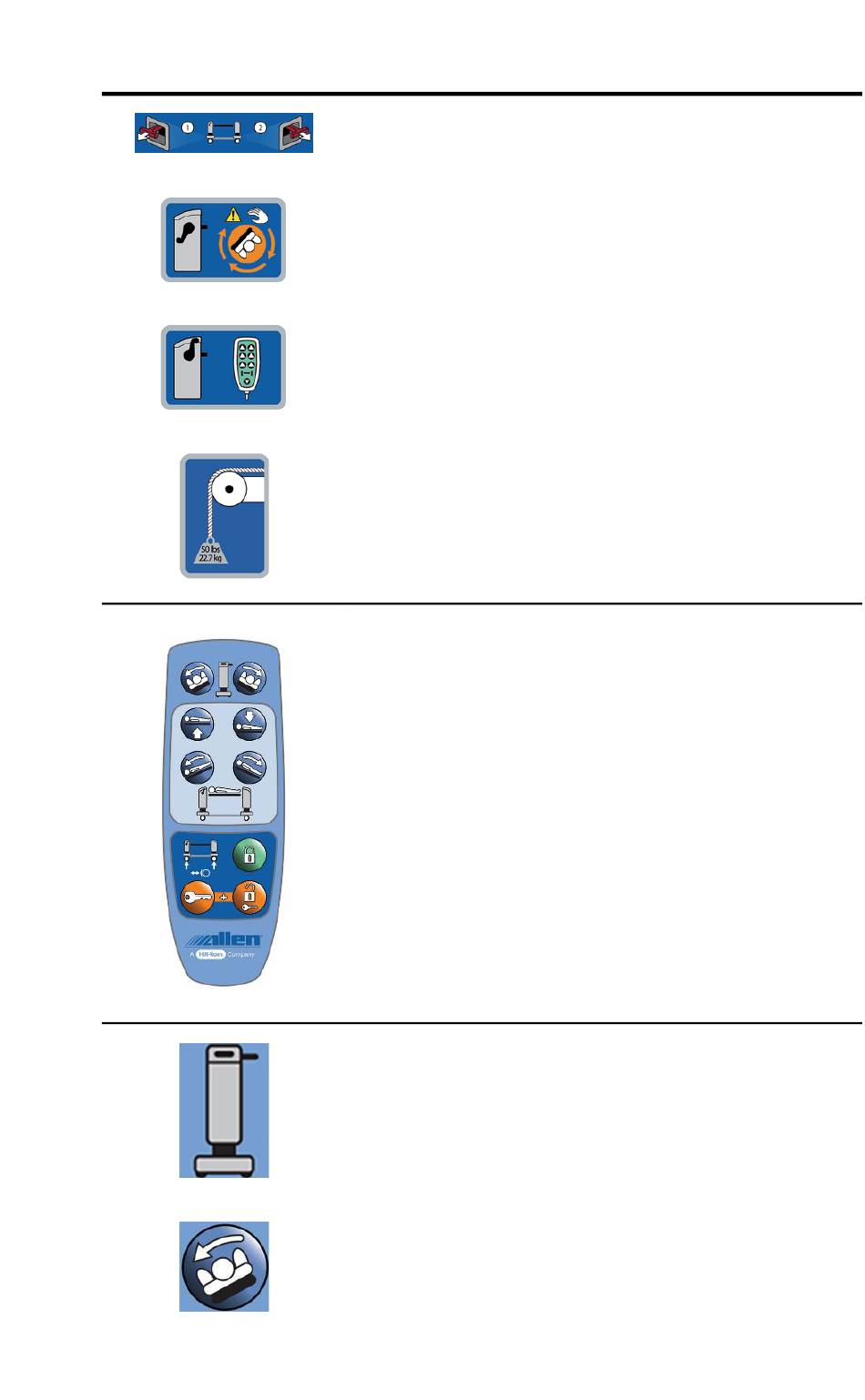

SYMBOL IDENTIFICATION
Description
Symbol
Identifies the emergency brake releases.
Shows that when the flip handle is in the lowered
position, the Allen Advance Table is in flip mode
(the top can be turned manually).
Shows that when the flip handle is in the raised
position, the Allen Advance Table can be
operated by the pendant.
Identifies the location of the cervical traction
assembly.
Pendant Symbols
Identifies the controls in the area as tilt controls.
This is not a control.
Tilt Left control - turns a support top up to 25°
counterclockwise.
Allen® Advance Table User Manual (80028190) 9
