2. Make sure the brakes on the Allen Advance Table are
locked (the locked indicator on the Allen Advance
Table display is green).
–
If the lower H-brackets are not
installed on each end of the Allen
Advance Table, perform the
following steps. Otherwise, go to
step –.

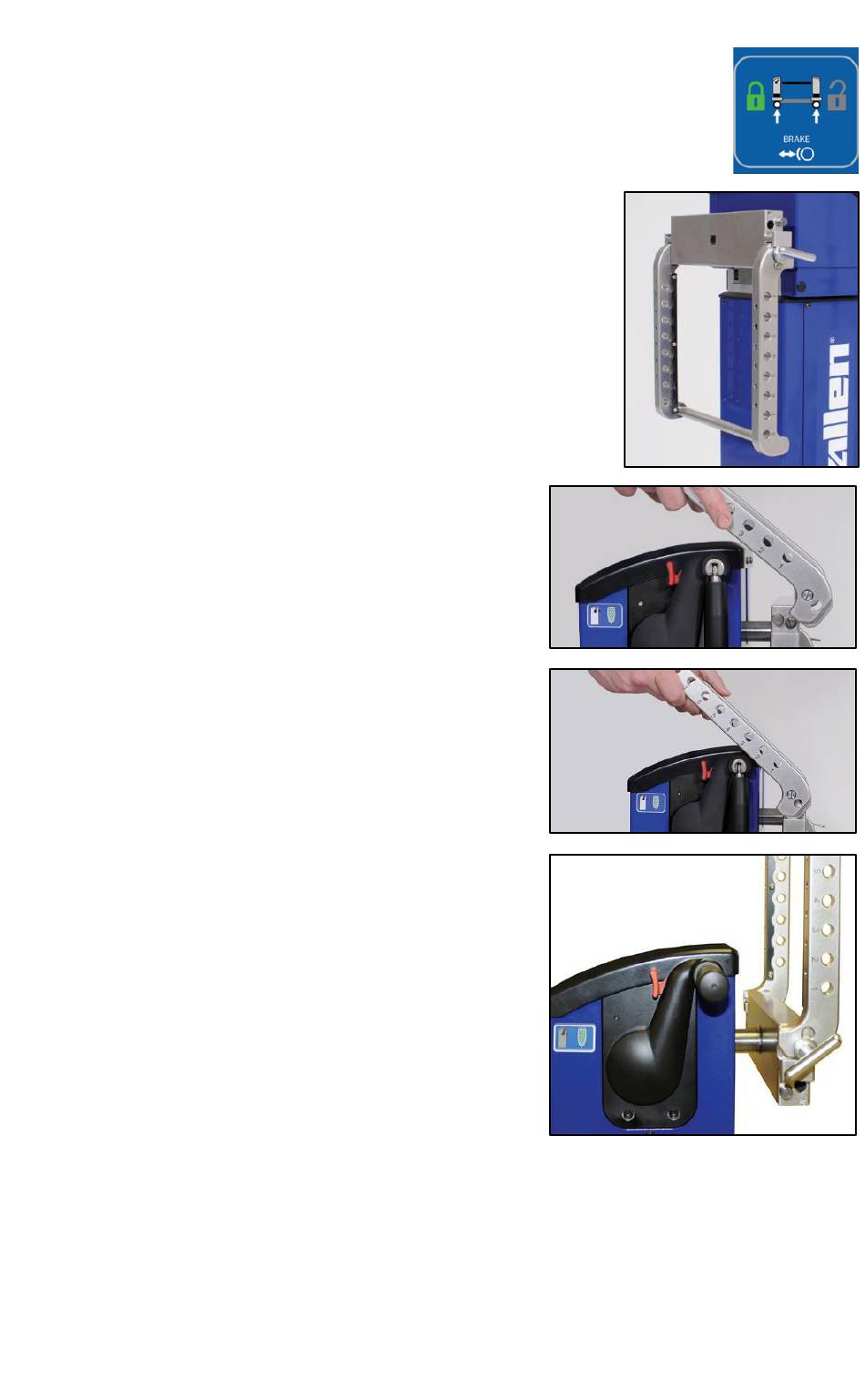

3. Hold the H-bracket so that the open
end is down, the J ends are towards
you, and the bracket is angled
towards you.
4. Attach the J ends of the
bracket to the bowtie bracket so that
the H-bracket fits into the notches on
the sides of the bowtie bracket.
5. Insert the cross pin into the
bracket, through the bowtie, and
through the other end of the H-
bracket.
WARNING:
Do not use the H-bracket without the cross pin installed correctly.
Otherwise, patient fall, injury, or equipment damage could occur.
