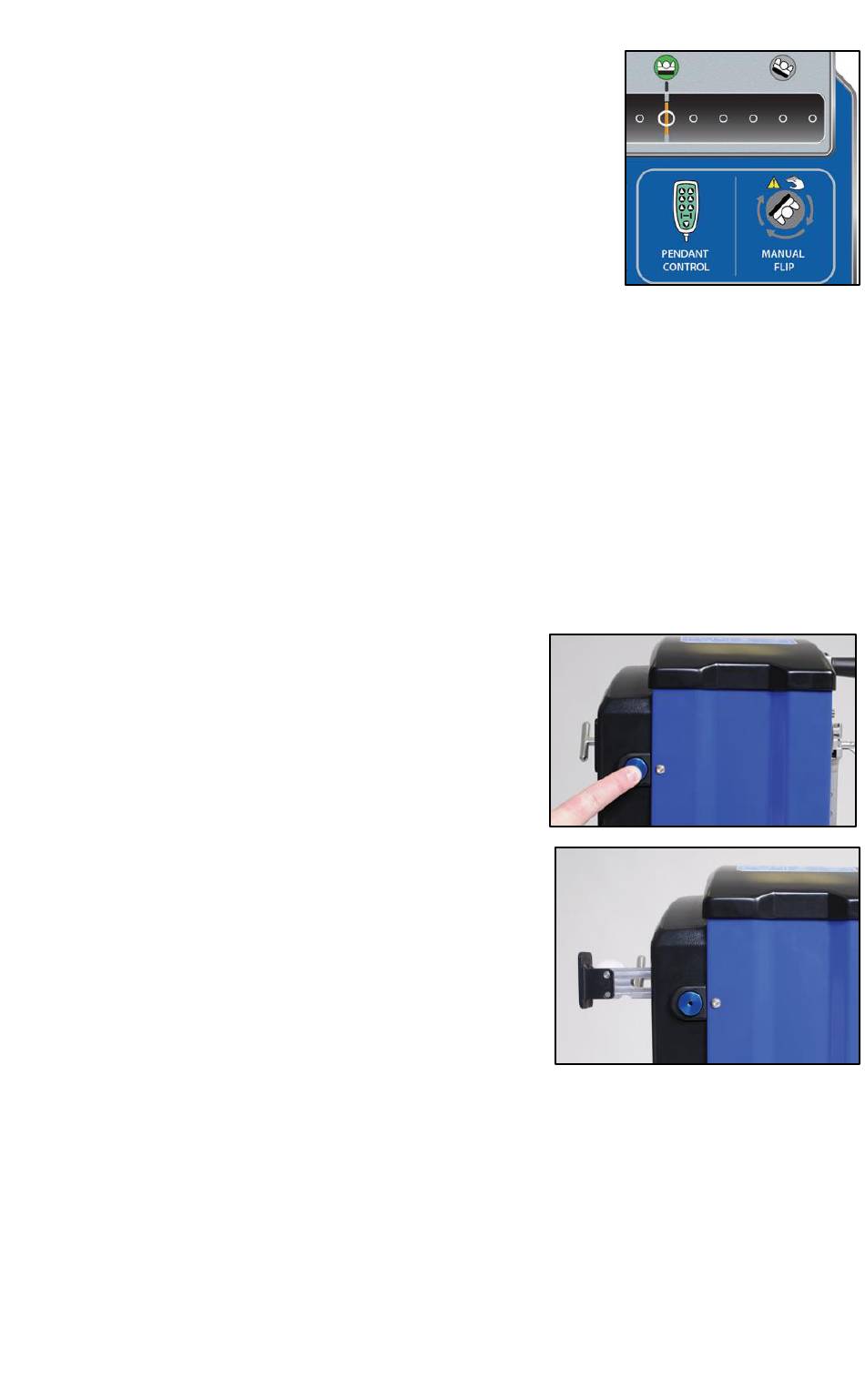

The Allen Advance Table is in pendant
control mode. (The pendant control
indicator on the Allen Advance Table
display is green.)
The patient and staff are fully prepared
for the transfer.
–
Make sure the Allen Advance Table
support top and the surface of the
transfer device are at the same height.
WARNING:
Observe all lines closely during the transfer. Always use good line
management techniques. Otherwise, patient fall, injury, or equipment
damage could occur.
–
Observe lines closely as you transfer the patient per facility
protocols.

ACCESS THE CERVICAL TRACTION ASSEMBLY

The cervical traction release control is a push button on the upper-left side
of the head-end column.
1. Push the cervical traction release
button. The assembly moves out from
the column.
–
Pull the assembly out from
the column, and make sure
the assembly is in the
locked-out position. The
cervical traction release
button will return to its
original position.
WARNING:
The maximum diameter of the traction rope should be 6.35 mm (0.25"). The
use of a traction rope that is greater than 6.35 mm (0.25") in diameter could
cause binding inside the cervical traction assembly . Patient injury could
occur as a result of inaccurate traction.
Allen® Advance Table User Manual (80028190)
Instructions for Use
39
