Instructions for Use
–

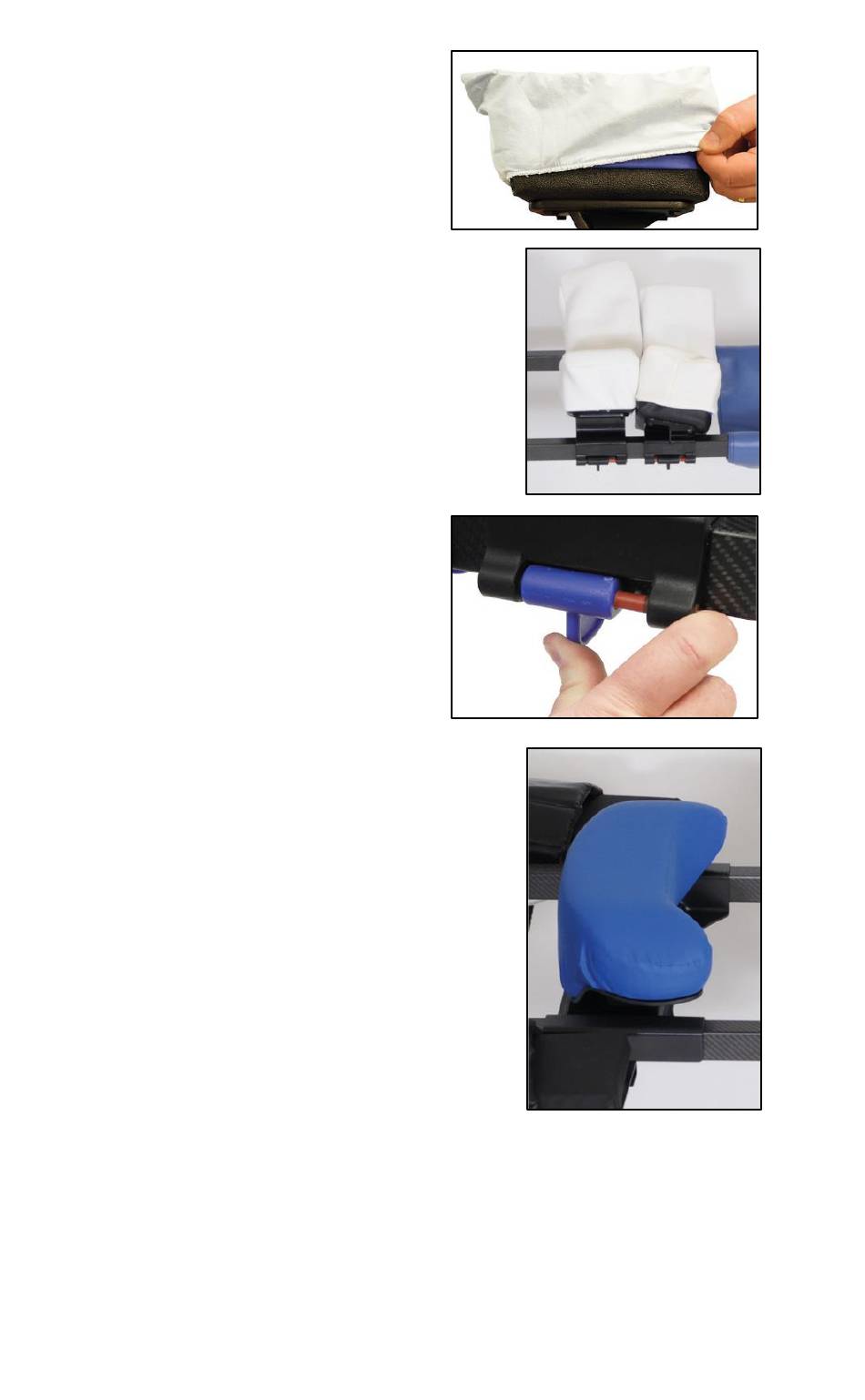

Install Allen® Ultra
Comfort™ Covers on to the
supports. Make sure that—
The foam side of the cover is on
the outside.
The covers are pulled over the
blue section of the support only.
The black section should not be
covered.
NOTE:
Allen® Support Pads are designed to
work with Allen® Ultra Comfort™
Covers only.
–
To remove a support from the
Allen Advance Table, slide
the blue clamp to the
unlocked position. When
unlocked, only the red area
will show on the pin.
Chest Support
1. Put the chest support in position on the Rail
Top at a location dependent on the patient's
gender:
Female—install the support so that it
will be above the breasts and below the
clavicle paying close attention to avoid
the brachial plexus.
Male—install the pad so that it will be
across the nipple area.
NOTE:
When the support is installed, the indent should be toward the foot end
of the Allen Advance Table.
–
Attach the Velcro® straps to hold the support in position.
– Install an Allen® Ultra Comfort™ Cover on to the support.
Make sure that—
The foam side of the cover is on the outside.
