Instructions for Use
–
Put the traction rope through
the hole in the center of the
bowtie. The rope will go
through the traction assembly
and out the left side of the
column, near the release.
–
Put the traction rope over and
around the pulley.
–

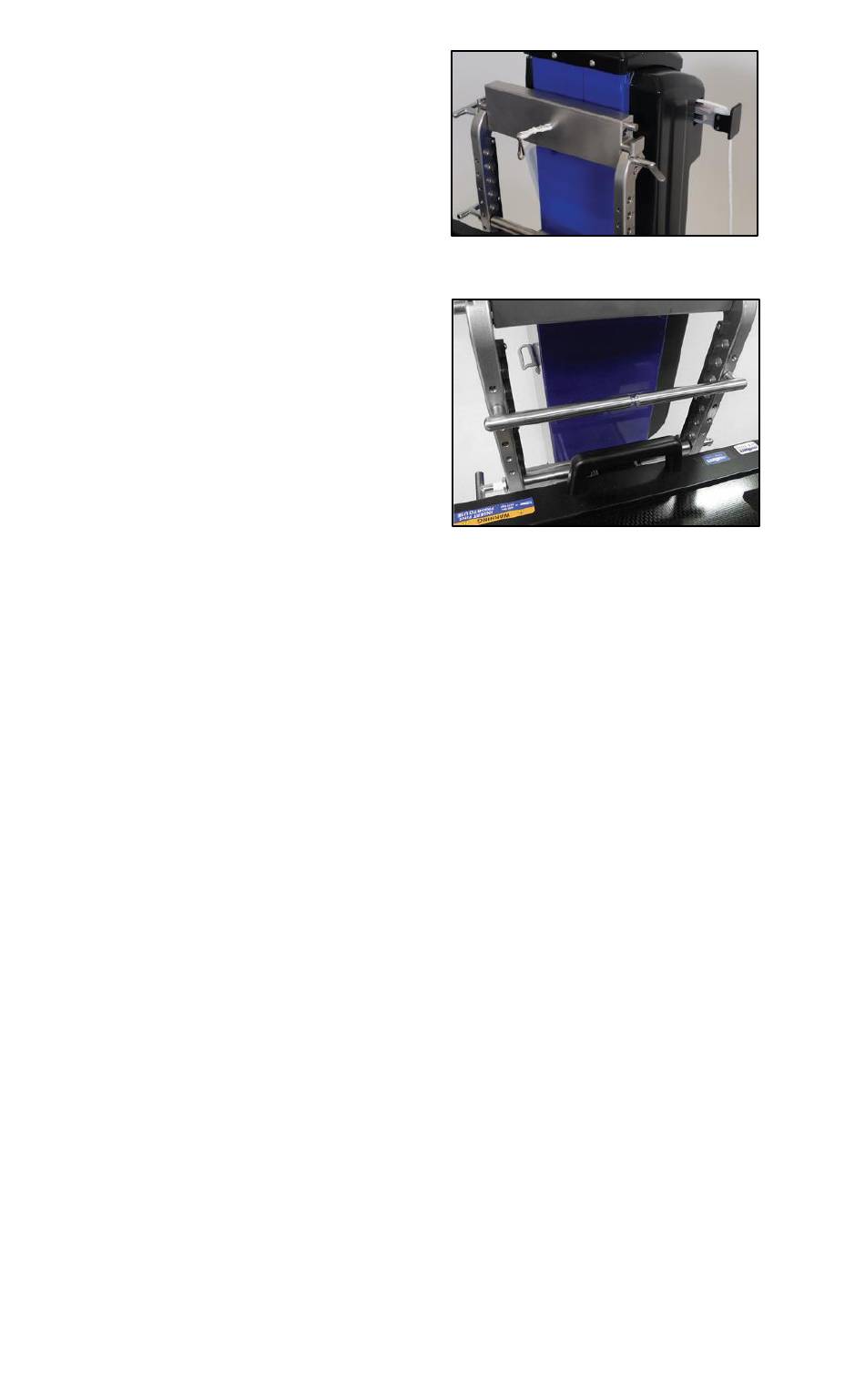

If desired, install the
optional cervical traction bar
on the support top-side of
the head-end H-bracket as
follows:
a. Determine the hole location for
the cervical traction bar.
NOTE:
The hole locations are numbered on the side of the H-brackets.
2. Put the bar into the H-bracket openings. Make sure that the bar is level
by verifying that each end of the bar is installed into the H -bracket at
the same numbered hole location.
3. Make sure the drop lock on each end of the bar moves to the side to
hold the bar in position.
4. Pull the traction rope from the bowtie down and underneath the bar.
NOTE:
The bar has an indentation to help keep the rope in position during
cervical traction.
WARNING:
The maximum weight load for the traction assembly is
(50 lbs). To exceed this weight could cause patient fall, injury, or equipment
damage.
WARNING:
Make sure the traction weight is in a safe position, free from possible
unintended movement. Otherwise, patient fall, injury, or equipment damage
could occur.
WARNING:
Do not press the Cervical Traction Release button while traction weight is
being applied. To do so could cause the assembly to retract and the traction
weight to move. Patient fall, injury, or equipment damage could occur.
– Use traction weight per facility protocols. Make sure that —
The traction weight is in a safe position such that it is free from
possible unintended movement.
