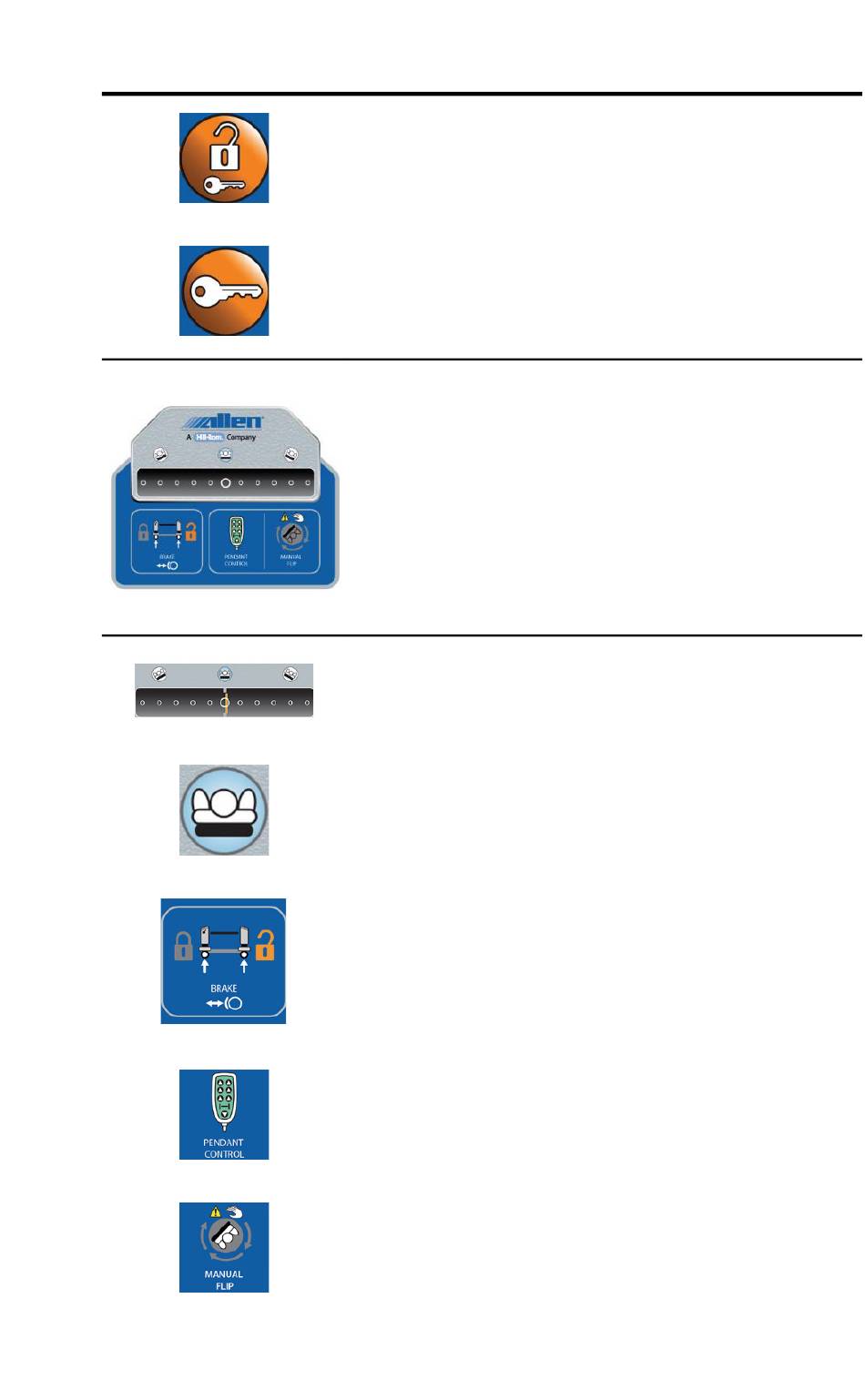

SYMBOL IDENTIFICATION
Description
Symbol
Unlock control - when pressed along with the
Key control, unlocks the brakes.
Key control - when pressed along with the unlock
control, unlocks the brakes.
Display Symbols
Tilt indicator area - shows how far the support top
is tilted to the left or right.
Tilt level indicator - when the indicator is green,
the patient is not tilted to the left or right.
Brake status indicators—the Locked indicator is
green when the brakes are locked; the Unlocked
indicator is yellow when the brakes are unlocked.
Pendant control indicator - green when the Allen
Advance Table is in pendant mode (the Allen
Advance Table can be operated using the pendant
controls).
Manual flip indicator - yellow when the Allen
Advance Table is in flip mode (the top can be
turned manually).
Allen® Advance Table User Manual (80028190) 11
