locked into place. Make sure that the anti-kickback pawls
move freely and are not stuck in the table insert slot.
WARNING
Use extra caution when cutting wood products having
slippery surface as the anti-kickback pawls may not
always be effective.
10. Blade guard installation (Fig. 10a-10c)
WARNING
KEEP GUARDS IN PLACE and in good working order for
all through cut operations. Reinstall the blade guard
immediately after finishing
operations which require removal of the blade guard.
Failure to heed this instruction could result in serious
personal injury.
◌ Unplug the saw.
◌ Hold the knobs (72) (one on either side of the blade
guard) and push the knobs forward to the front of the
blade guard and up until the pin comes out from the
slot in the mounting bracket (blade guard storage) (19)
at bottom front right side of the saw, then remove the
blade guard from the U-bracket (blade guard storage)
(19) at bottom middle right side of the saw (Fig. 10a).
◌ Hold and push knobs (72) forward to the front of the
blade guard. Place the pins (73, 74) on the blade
guard (1) into the slot B (75) and slot C (76) indicated
on theriving knife (16). (Fig. 10b)
◌ Pull blade guard fully back onto riving knife. Push pin
and release it to lock guard into position.
◌ If blade guard is not parallel to table when riving knife
is in uppermost position (through cuts), adjust the set
screw (77) as necessary. (Fig. 10c)
WARNING
After the installation, check the blade guard to ensure
that it is properly placed and workable before operation
the saw.
WARNING
When using the blade guard, lift the left and right blade
guard and make sure that they move independently and
contact the table surface. The blade guard can be raised
to adjust the cut line, but must be lowered to contact the
table surface before starting the saw.
WARNING
Make sure blade guard and anti-kickback pawls move
freely before starting the saw. Ensure the direction of
rotation by checking blade teeth point down at the front
side of saw table.
11. Outfeed support
11a-11b)
◌ Loosen and remove two stop screws (78) on the
extension poles (79) of the outfeed support (15).
◌ Loosen the locking knobs (80) under the working table
counterclockwise.
◌ Insert the rear extension poles (79) into the two holes
in the rear of the working table and into the extension
tube brackets that are located under the working table.
Position the outfeed support (15).
◌ Thread the locking knobs (80) into the holes under the
working table and tighten them.
◌ Thread the two stop screws (78) into the holes located
on ends of the extension poles (79) and tighten them.
12. Rip fence installation (Fig. 12a-12c)
◌ Push down the fence rails lock lever (37) toward the
any non-through
assembly installation
rear of the saw to unlock it.
◌ Open the rip fence lock levers (3) located on two ends
of the rip fence (18), then remove the rip fence (18)
from the front and rear fence rails (42, 49).
CAUTION
There are three position screws (81) (position A, B, C) on
the each front and rear fence rails (42, 49) to attach rip
fence. Position screws (81) (position A and B) use for rip
fence on the right of saw blade. Position screws (81)
(position C) use for rip fence on the left of saw blade. (Fig.
12b)
cut
◌ Align the fence slots (82) with the position screws
(front and back) on the fence rails.
◌ Push the slots (82) down onto the position screws and
secure the rip fence in place by pushing the rip fence
lock levers (3) down.
◌ Lock the fence rails lock lever (37).
CAUTION
The rip fence should be parallel to the saw blade. If not,
refer to the section "Aligning rip fence to blade" (Page
49).
CAUTION

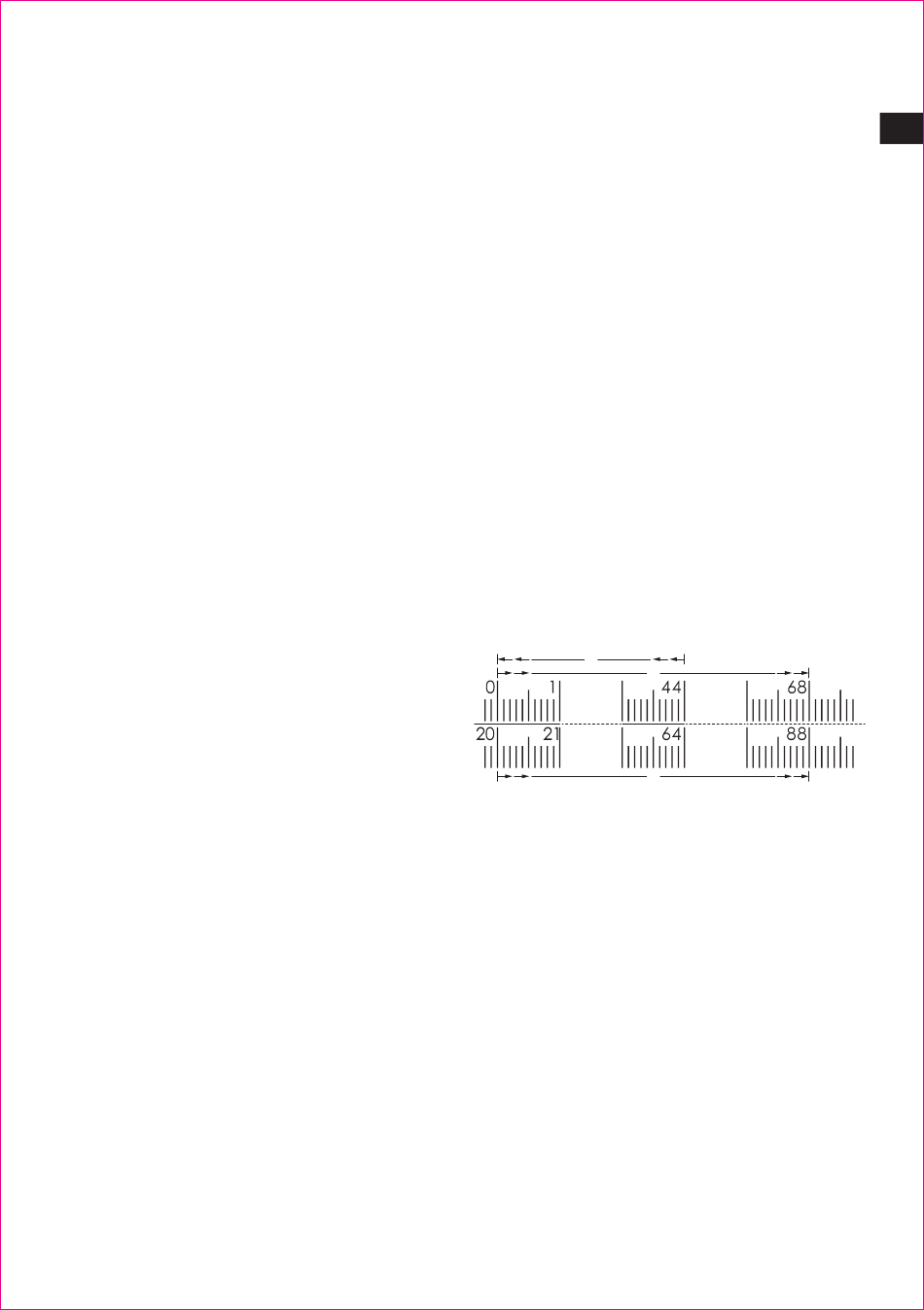

Three position screws (81) (position A, B, C) apply to
three different scales: Position screw (Position A): Begin
with 0 to 680 mm end. (Rip fence located on the right of
the blade)
Position screw (Position B): Begin with 200 mm to 880
mm end. (Rip fence located on the right of the blade)
Position screw (Position C): Begin with 0 to 440 mm end.
(Rip fence located on the left of the blade)
C
13. Mitre gauge installation (Fig. 13a-13b)
The mitre gauge (28) can be installed on each mitre
gauge groove (31) on either side of blade.
◌ Remove the mitre gauge (28) from mitre gauge
storage (47) located on inside of the right side of saw.
◌ Slide the guide rail (83) of the mitre gauge (28) into one
of the guide grooves (31) of the saw table intended for
this purpose.
(Fig.
14. To store the table saw accessories (Fig. 14a-14c)
◌ The table saw has two convenient storage areas (one
on either side and back of the saw) specifically
designed for the saw's accessories: rip fence (18),
blade guard (1), push stick (38), blade wrenches (14),
power cord (13), anti-kickback pawls (48) and mitre
gauge (28).
◌ When not in use, store accessories securely.
15. Folding the stand (Fig. 15a-15f)
◌ To fold the stand for moving, return fence rails and lock
the fence rails lock lever and return outfeed support to
inner position. Store the accessories securely.
◌ Grasp the stand support assembly (26) and lift it up
until two stand legs (11) (located on side of the wheel)
leaving off the ground, then fold in two stand legs (11).
To do this, push the lock pins (32) until they unlock the
