4.5. How To Reassemble the Displaying Unit

WARNING
To avoid compromising electrical safety, make sure not to leave any tools or other loose parts inside the displaying unit
when it is reassembled.
a) Reconnect the battery to the battery connector (see Figure 12 and Figure 27)
Ensure that the connector is inserted properly by observing that the white centre guide is touching the black
connector part
b) Reconnect the FPC cable
Reconnect the FPC cable to the main board. Also ensure the cable is still connected to I/O board on the back casing.
The following figure shows the location of FPC cable and FPC connectors.
Reconnect the FPC cable to the main board (see location 2 in Figure 28). Insert the FPC cable in the connector and
lock the white flat by flipping it down (see Figure 29). Make sure the golden leads on the printed circuit are facing
down and have good contact with the connector.
Make sure that the end of FPC cable is pushed all the way and parallel to the connectors. Check that the FPC cable is
still connected correly to the I/O board (See location 3 in Figure 28).
24

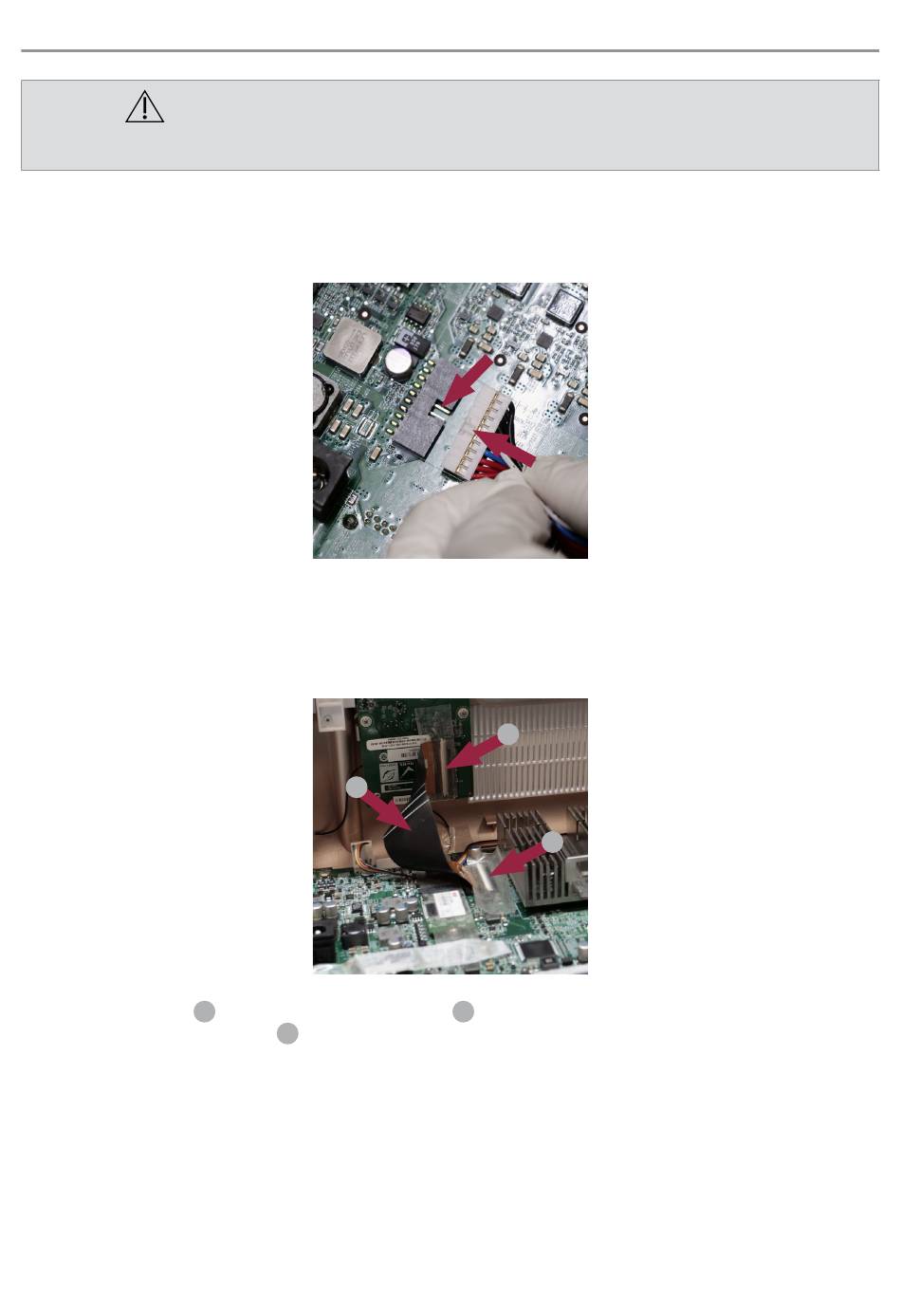

Figure 27 Reconnect the battery connector
1
Figure 28 The locations for FPC cable and FPC connectors.
1 FPC (Flexible Printed Circuit) cable,
3 FPC connection to I/O board on the back casing.
2
3
2 FPC connection to the main board
