c) Dispose the used VDI board following local guidelines for disposal of electronic waste
d) Insert the new VDI board into the main board connector
e) Insert and tighten the two black screws (max. torque 0.2Nm) holding the VDI board in place (see Figure 16)
f) Make sure the colour ring is the same colour as the indication on the VDI board (see Figure 19)
When remounting the back casing, be aware that the coloured spots on the VDI boards (Figure 19) are matching the
colours of the colour rings at which they are placed.
18

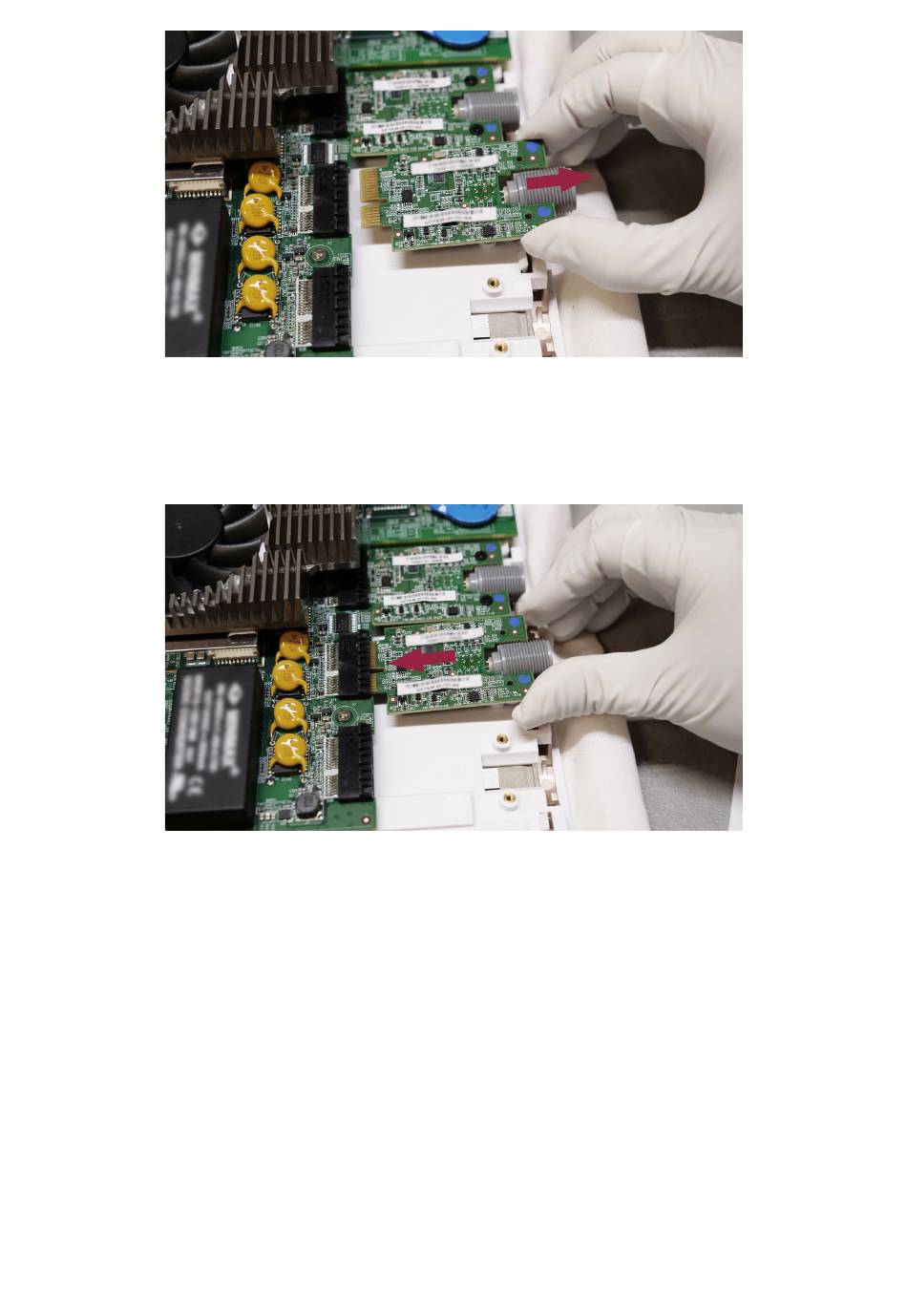

Figure 17 Remove the VDI board
Figure 18 Insert a new VDI board
