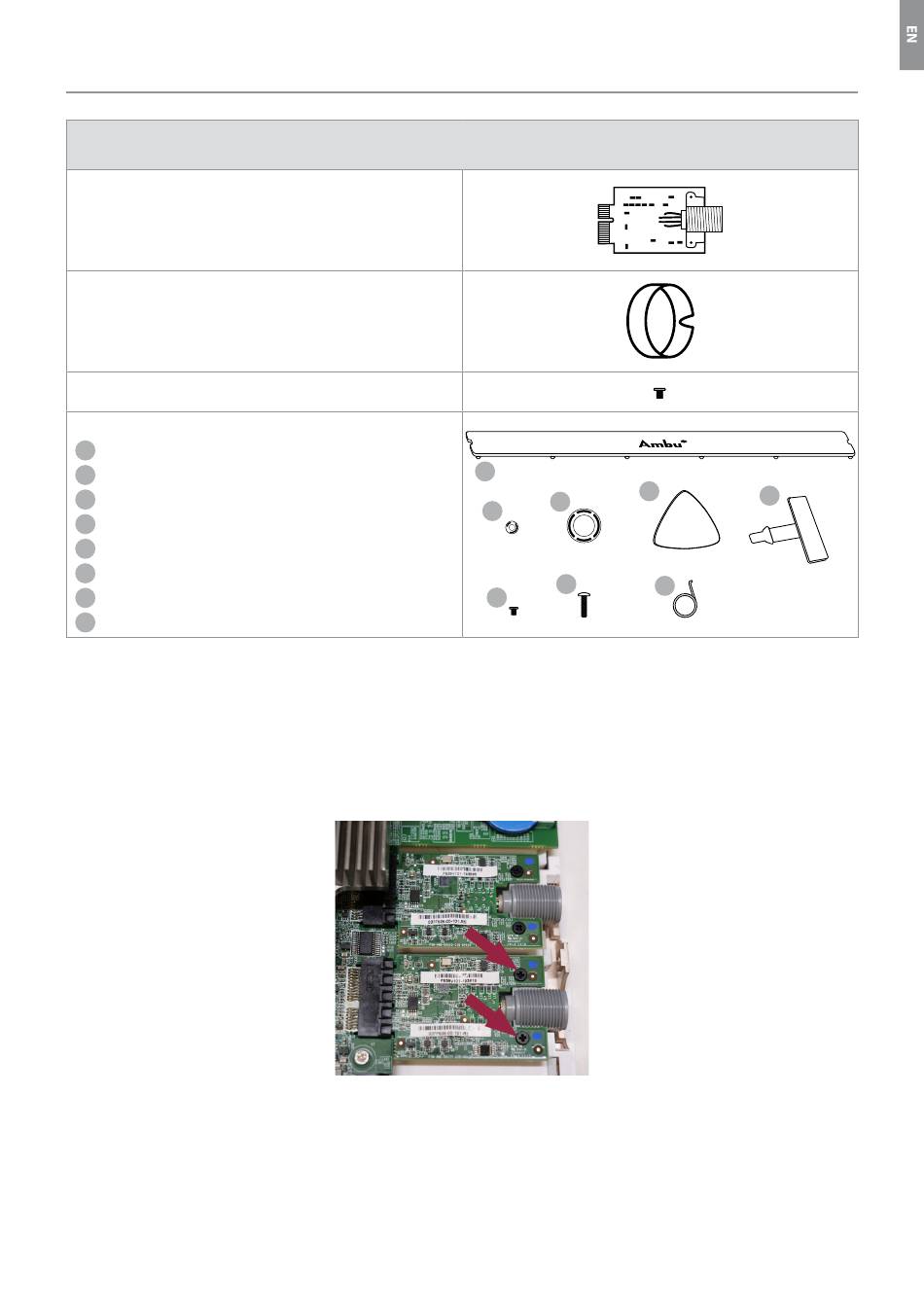

4.2. Visualization Device Interface Board Replacement

Ambu® aView™ 2 Visualization Device
Interface Kit - Blue
VDI board - Blue
Colour ring
Screws for VDI board (x2)
Replacement part kit:
1
Name plates (x2)
2
Screw cover (x2)
3
Visualization device connector cover (x2)
4
Plectrum tool (x1)
5
USB Cover (x1)
6
Screws for casing assembly (x10)
7
Screws for VESA the mounting bracket (x4)
8
Name plate removal tool (x1)
Additional Tools (not supplied)
Screwdriver (Phillips #0)
Replacing the VDI board
Refer to Figure 12 to identify the location of the VDI board.
a) Use the screwdriver to loosen the two black screws holding the VDI board (see Figure 16)
b) Pull the VDI board out of the main board connector
Figure 16 Remove the screws on the VDI board to be replaced
405014100
1
2
6
1 1
4
3
3
2
2
7
7
6
6
3
7
4
5
5
8
8
4
8
