Meaning Of The Leds; Fig. 23 Leds And Switch/Standby Button On The Front Of The Device - Knauer Azura DAD 2.1L Benutzerhandbuch

Legend
Left LED
1
Center LED
2
Right LED
3
Switch/Standby but-
4
ton
Standby
Note
Left LED
Center LED
Right LED
KNAUER
33 Operation

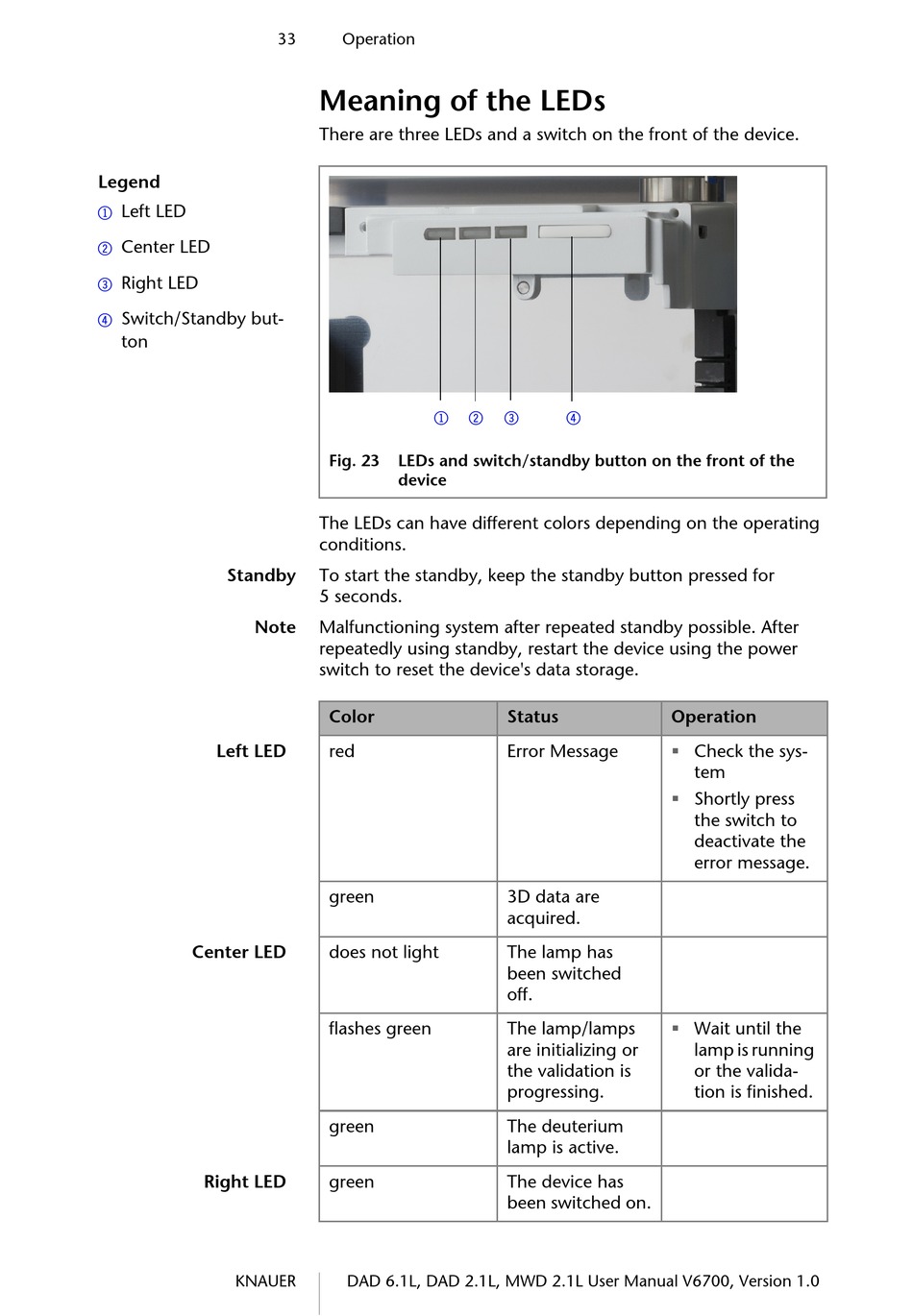

Meaning of the LEDs

There are three LEDs and a switch on the front of the device.
1 2 3
Fig. 23 LEDs and switch/standby button on the front of the
device
The LEDs can have different colors depending on the operating
conditions.
To start the standby, keep the standby button pressed for
5 seconds.
Malfunctioning system after repeated standby possible. After
repeatedly using standby, restart the device using the power
switch to reset the device's data storage.
Color
red
green
does not light
flashes green
green
green
DAD 6.1L, DAD 2.1L, MWD 2.1L User Manual V6700, Version 1.0
4
Status Operation

Error Message

3D data are
acquired.
The lamp has
been switched
off.

The lamp/lamps
are initializing or
the validation is
progressing.
The deuterium
lamp is active.
The device has
been switched on.
Check the sys-
tem
Shortly press
the switch to
deactivate the
error message.
Wait until the
lamp is running
or the valida-
tion is finished.
