Intended Use
Note
Description
Scope of application
Legend
Leak tray
1
Capillary guide
2
Lamp cover
3
Serial number
4
Leak Management
5
Switch/Standby button
6
Status LED
7
Flow cell
8
RS-232, service interface
KNAUER
6
Intended Use
Only use the device for applications that fall within the range of
the intended use. Otherwise, the protective and safety equip-
ment of the device could fail.
The detector is suitable for analytical, semipreparative, and pre-
parative applications.
The device can be used in the following areas:
Biochemistry analysis
Chemical analysis
Food analysis
Pharmaceutical analysis
Environmental analysis

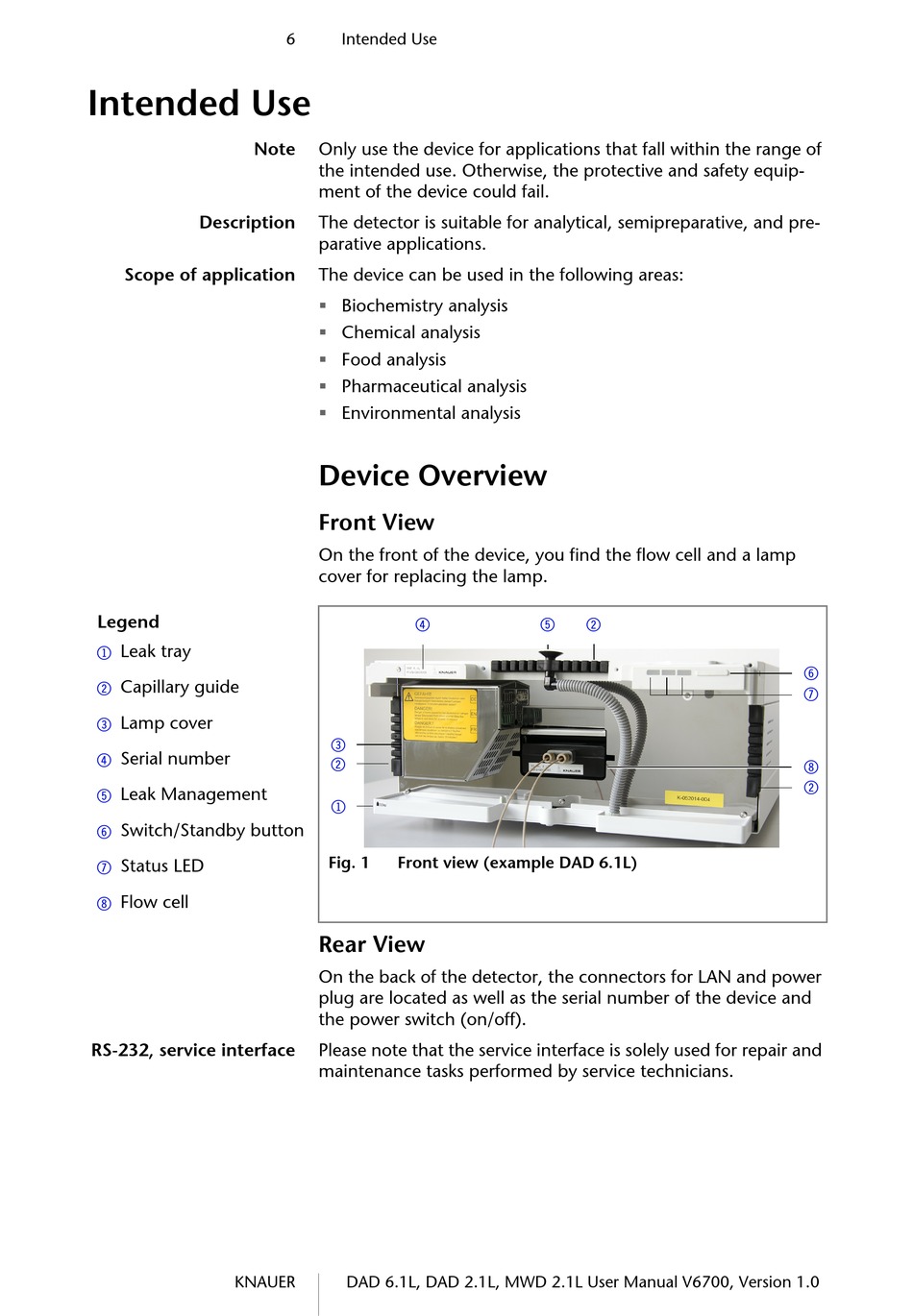

Device Overview
Front View
On the front of the device, you find the flow cell and a lamp
cover for replacing the lamp.
4
3
2
1
Fig. 1
Front view (example DAD 6.1L)
Rear View
On the back of the detector, the connectors for LAN and power
plug are located as well as the serial number of the device and
the power switch (on/off).
Please note that the service interface is solely used for repair and
maintenance tasks performed by service technicians.
DAD 6.1L, DAD 2.1L, MWD 2.1L User Manual V6700, Version 1.0
5
2
6
7
8
2
