Legend
Device information
1
Integrator outlets
2
LAN connector
3
Service Interface
4
Pin header
5
Fan
6
Connection and
7
power switch
DAD 6.1L
Note
Legend
USB port for the
1
Control Unit
Optical system
KNAUER
7 Intended Use
1 2

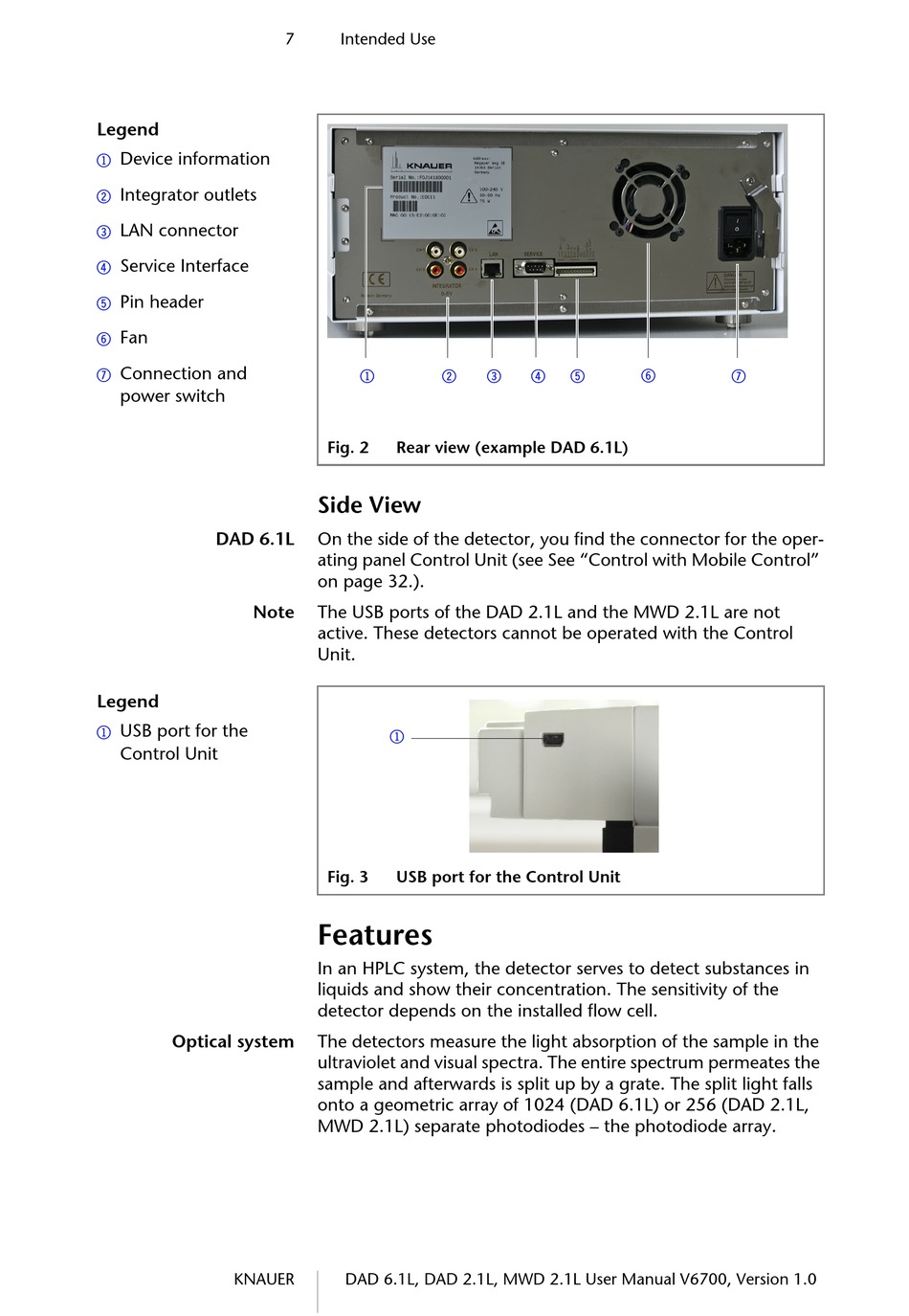

Fig. 2 Rear view (example DAD 6.1L)

Side View

On the side of the detector, you find the connector for the oper-
ating panel Control Unit (see See "Control with Mobile Control"
on page 32.).
The USB ports of the DAD 2.1L and the MWD 2.1L are not
active. These detectors cannot be operated with the Control
Unit.
1
Fig. 3 USB port for the Control Unit

Features

In an HPLC system, the detector serves to detect substances in
liquids and show their concentration. The sensitivity of the
detector depends on the installed flow cell.
The detectors measure the light absorption of the sample in the
ultraviolet and visual spectra. The entire spectrum permeates the
sample and afterwards is split up by a grate. The split light falls
onto a geometric array of 1024 (DAD 6.1L) or 256 (DAD 2.1L,
MWD 2.1L) separate photodiodes – the photodiode array.
DAD 6.1L, DAD 2.1L, MWD 2.1L User Manual V6700, Version 1.0
6
3 4 5 7
