Preparing the PDA Detector 2800 for Operation

Optical Path of the PDA Detector 2800

Fig. 2
Preparing the PDA Detector 2800 for Operation

Unpacking

Standard Delivery Smartline PDA Detector 2800

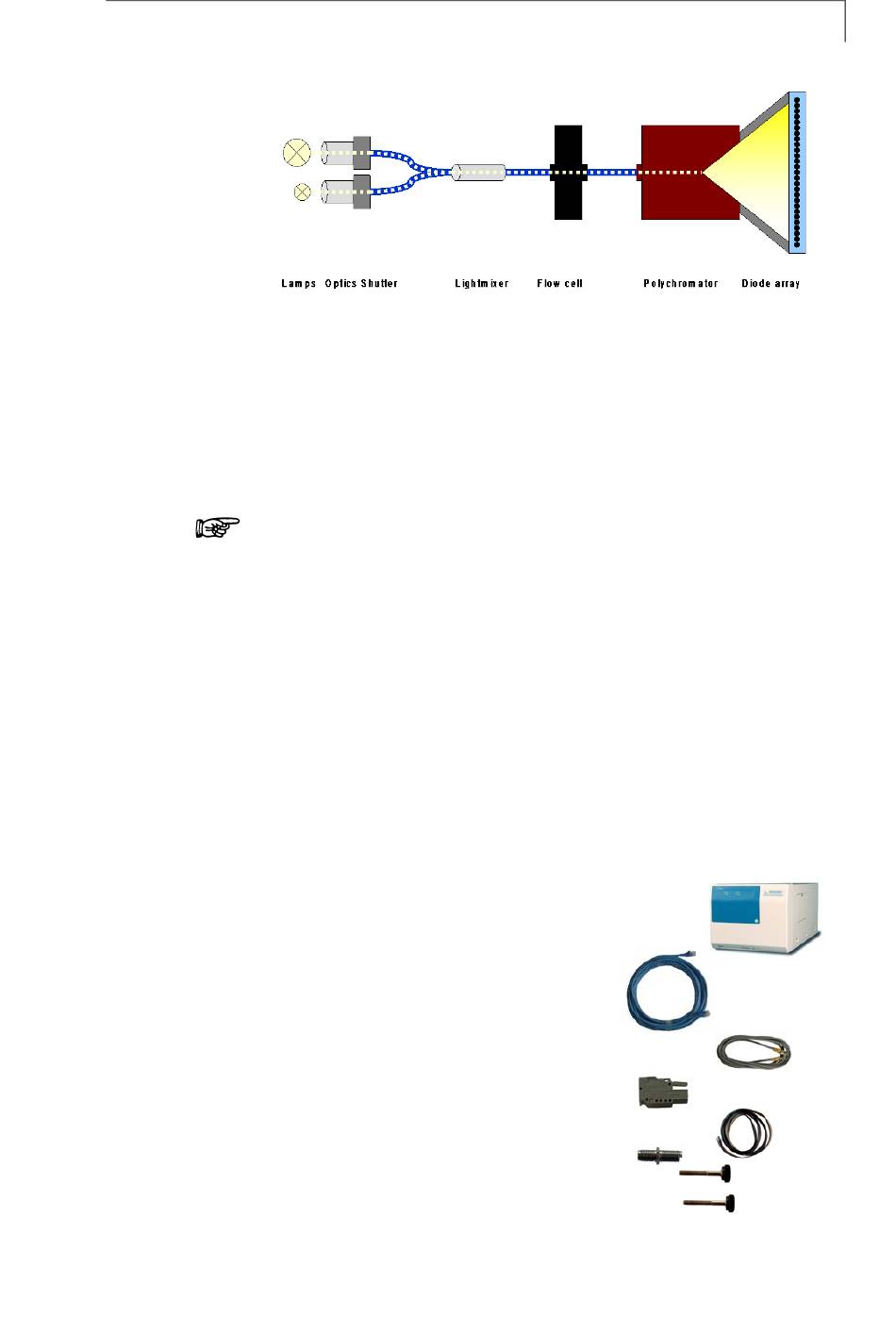

Optical path of the PDA Detector 2800 with two lamps (diagram)
The main parts of the KNAUER Smartline PDA Detector 2800 are shown
in Fig. 2. The light from both lamps (in the two lamps version) is focused
by separate optics, passes separate shutters and goes through two fiber
optical cables into the light mixer which provides perfectly balanced
mixing of ultraviolet, visible and near infrared light. All light then goes
through the flow cell and into the polychromator where it is split into a
spectrum of 190 to 1020 nm (one lamp version: 190 to 610 nm). The
whole spectrum is detected by a 1024 diodes (one lamp version: 512
diodes) diode array ( 0.8 nm per diode)..
The KNAUER Smartline PDA Detector 2800 UV has no halogen lamp,
just one shutter and no light mixer.
All KNAUER instruments are always packed carefully and safely for
transportation. After unpacking, please check the device and accessories
thoroughly for any damage that may have occurred during transport. If
necessary, put forward any claim for damages to the carrier.
Use the list "Standard delivery" and check if the PDA Detector 2800
delivery is complete. Please contact our service department if you are
missing something or if you need support.
1. Smartline PDA Detector 2800 with
fiber optical cables, without flow cell
2. Operation manual
3. Power supply cable
4. Ethernet patch cable, 3 m, RJ-45
(blue cable)
5. Cross linked Ethernet patch cable,
3 m, RJ-45 (yellow/grey cable)
6. Three WAGO connectors (2-pronged)
and mounting device
7. Two flat cables (10 pins)
8. SMA/SMA Connector
9. two screws for flow cell installation
5
