16.4.9 Prozeßdaten Systembus-Funktionsmodul (CAN1, CAN2)
Prozeßdaten-Eingangswörter
7
LO
HI
16.4-10
Prozeßdaten Systembus-Funktionsmodul (CAN1, CAN2)
CAN-IN1.W1.B0 ... CAN-IN1.W1.B15
16 Bit
CAN-IN1.W2.B0 ... CAN-IN1.W2.B15
16 Bit
16 Bit
16 Bit
CAN-IN2.W1.B0 ... CAN-IN2.W1.B15
16 Bit
CAN-IN2.W2.B0 ... CAN-IN2.W2.B15
16 Bit
16 Bit
16 Bit

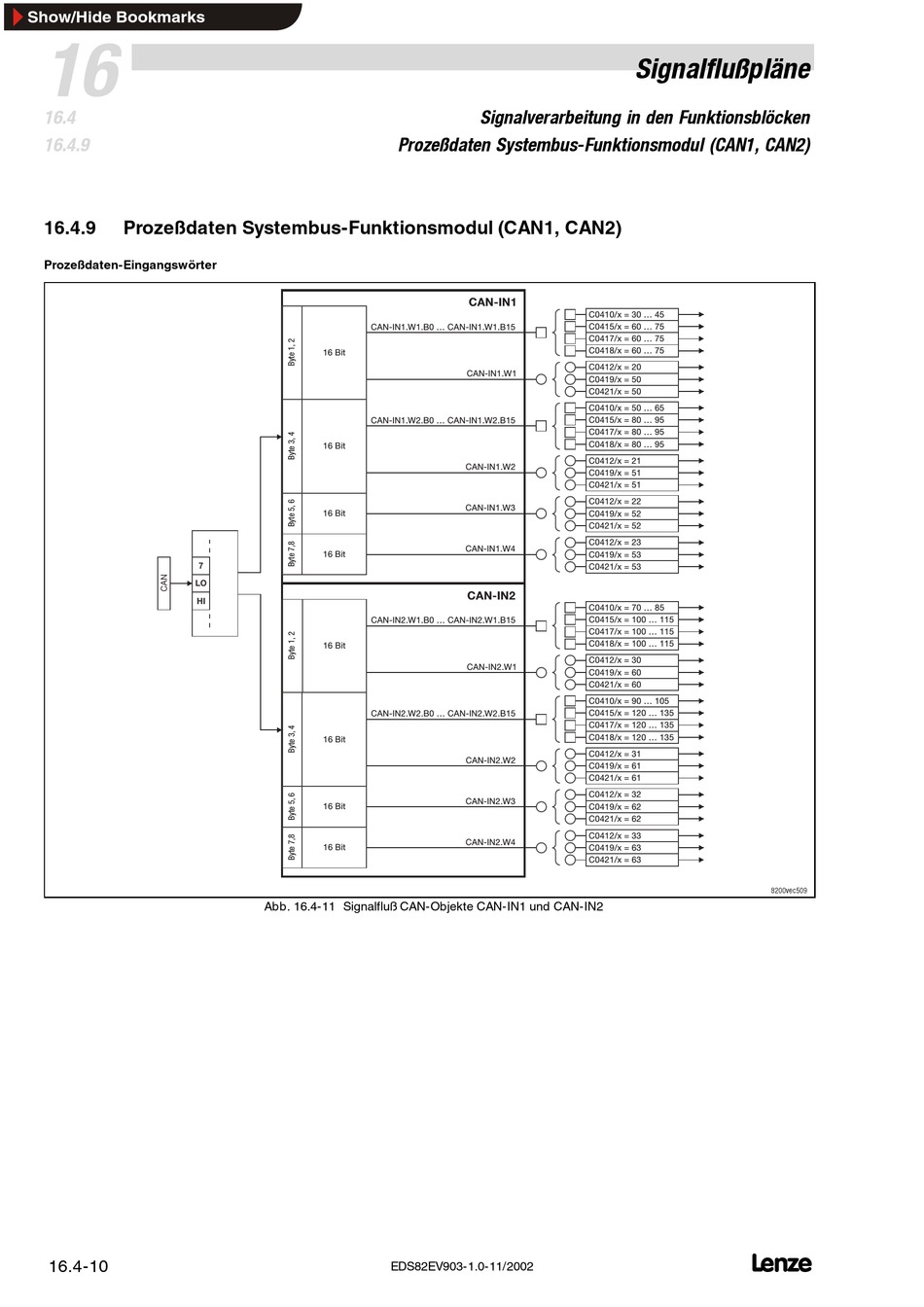

Abb. 16.4-11 Signalfluß CAN-Objekte CAN-IN1 und CAN-IN2
EDS82EV903-1.0-11/2002
Signalflußpläne
Signalverarbeitung in den Funktionsblöcken
CAN-IN1
C0410/x = 30 ... 45
C0415/x = 60 ... 75
C0417/x = 60 ... 75
C0418/x = 60 ... 75
C0412/x = 20
CAN-IN1.W1
C0419/x = 50
C0421/x = 50
C0410/x = 50 ... 65
C0415/x = 80 ... 95
C0417/x = 80 ... 95
C0418/x = 80 ... 95
C0412/x = 21
CAN-IN1.W2
C0419/x = 51
C0421/x = 51
C0412/x = 22
CAN-IN1.W3
C0419/x = 52
C0421/x = 52
C0412/x = 23
CAN-IN1.W4
C0419/x = 53
C0421/x = 53
CAN-IN2
C0410/x = 70 ... 85
C0415/x = 100 ... 115
C0417/x = 100 ... 115
C0418/x = 100 ... 115
C0412/x = 30
CAN-IN2.W1
C0419/x = 60
C0421/x = 60
C0410/x = 90 ... 105
C0415/x = 120 ... 135
C0417/x = 120 ... 135
C0418/x = 120 ... 135
C0412/x = 31
CAN-IN2.W2
C0419/x = 61
C0421/x = 61
C0412/x = 32
CAN-IN2.W3
C0419/x = 62
C0421/x = 62
C0412/x = 33
CAN-IN2.W4
C0419/x = 63
C0421/x = 63
8200vec509
