Ward Management Controller Clino System 99plus (SMC99plus)
4.4

Installation of the Field Bus Card (Part No. 72700E1)

The zone databus (SBUS) is used for networking the zone controllers and Ward Management Controller
99plus (Part No. 72700A1 / B1). This networking takes place via polymer optical fibre (POF).
Feldbus-Karte (Art.-Nr. 72700E1)
Field Bus Card (Part No. 72700E1)
SL
SR

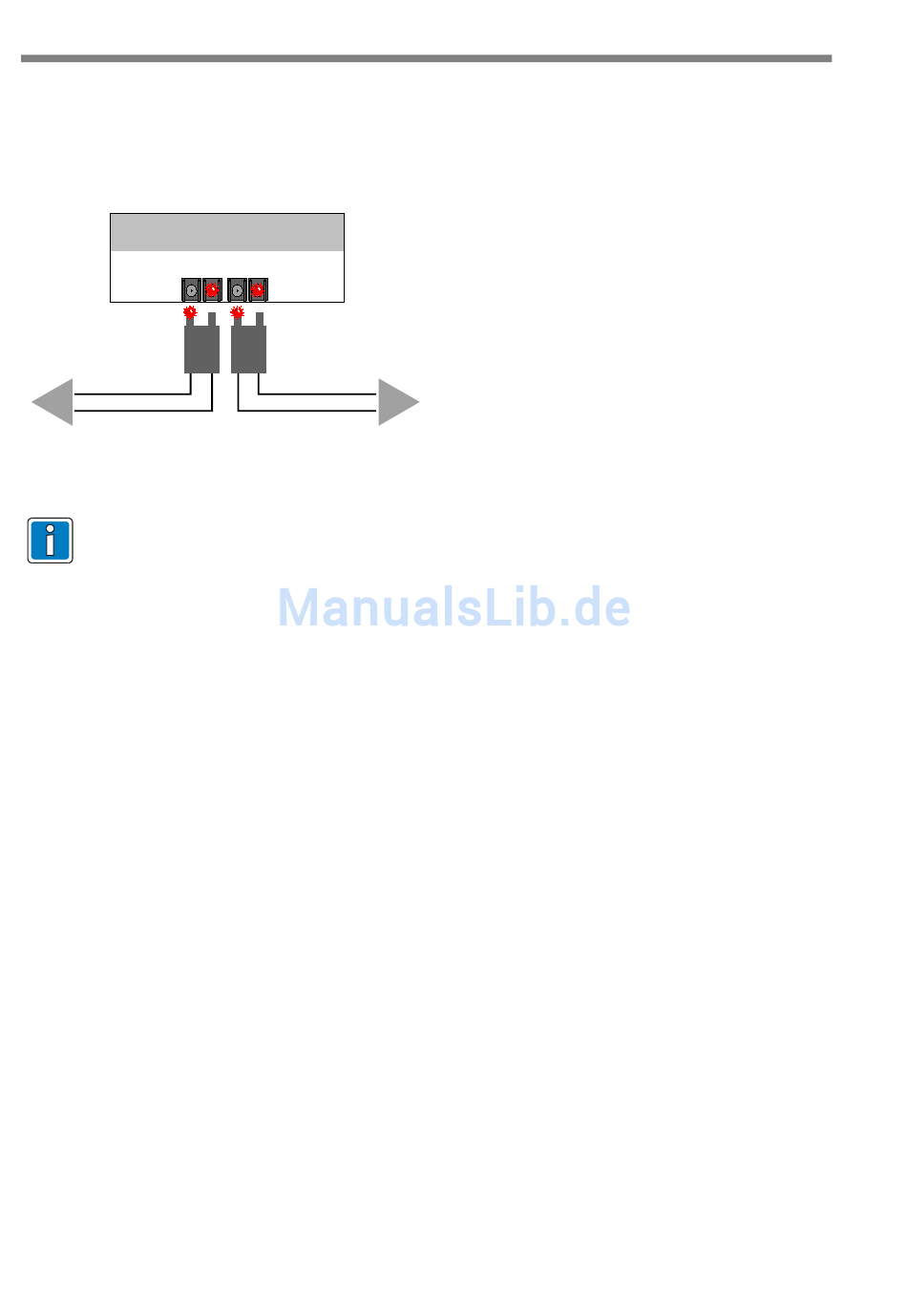

Fig. 32: SBUS connection example
• To avoid damage to the lines, do not pull on the cable to disconnect.
• If the Field Bus Card is installed but not functioning, a patch cable must be connected in a loop
to prevent the reporting of bus system faults.
• For more information about the SBUS system, see section 1.3.
74
SR
SL
FB 89470B1 / 10.13
