Ward Management Controller Clino System 99plus (SMC99plus)
3. Redundant (local and station)
The redundant power supply takes place locally and from the station. Priority is given here to the local
connection.
Stations-Management-Controller (Art.-Nr. 72700B1)
Ward Management Controller (Part No. 72700B1)
24 V DC
24 V DC
emergency
GND
power supply

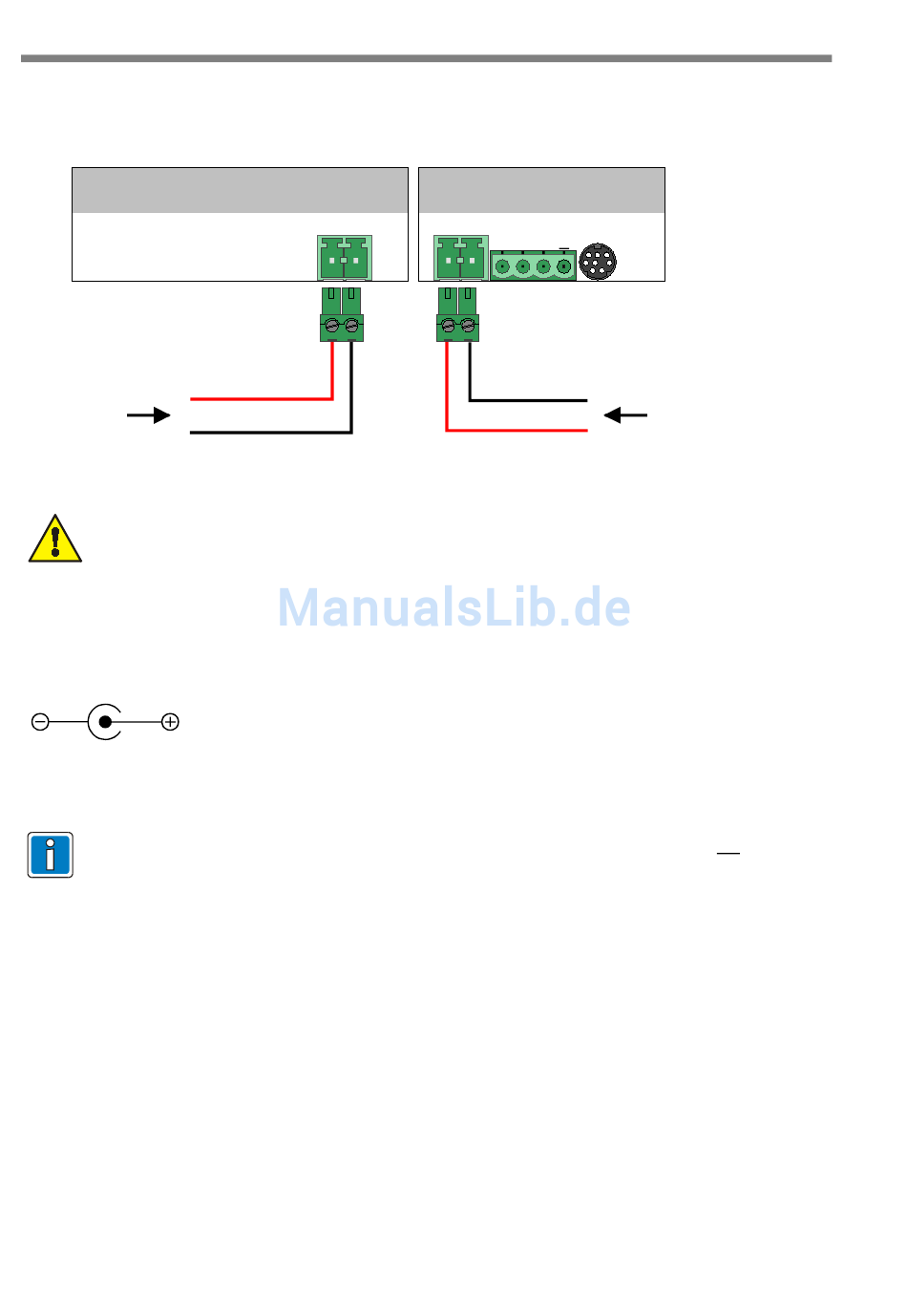

Fig. 26: Redundant power supply
The jumper PL3 must be inserted for >Local power supply and Station (redundant)<. For more
information, see section 2.4.
4. Mains adapter 24 V DC, according to EN 60601-1-1
The power supply takes place via the mains adapter (Part No. 72700Z1) with plug type P1J.
Fig. 34: Power supply via mains adapter
In accordance with DIN EN 0834:2000:4, supply of power via the mains adapter is not permissible
as the sole form of power supply because the connection can be unplugged.
70
Feldbus-Karte (Art.-Nr. 72700C1)
Field Bus Card (Part No. 72700C1)
4 6 4 6
ZA ZB A A
GND
power supply
24 V DC
from the station
