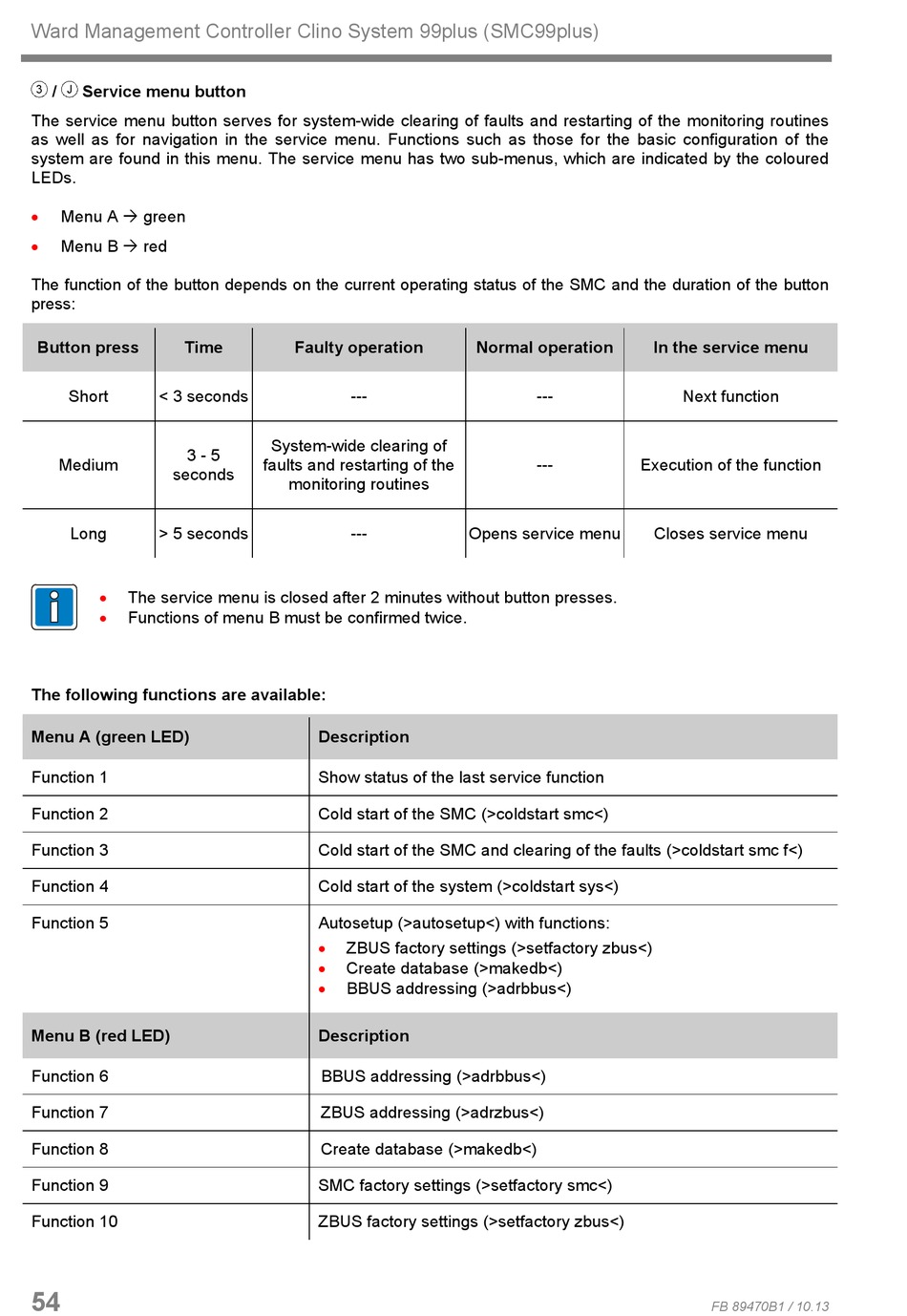

Ward Management Controller Clino System 99plus (SMC99plus)
/ Service menu button
3 J
The service menu button serves for system-wide clearing of faults and restarting of the monitoring routines
as well as for navigation in the service menu. Functions such as those for the basic configuration of the
system are found in this menu. The service menu has two sub-menus, which are indicated by the coloured
LEDs.
• Menu A  green
• Menu B  red
The function of the button depends on the current operating status of the SMC and the duration of the button
press:
Button press Time
Short < 3 seconds
3 - 5
Medium
seconds
Long > 5 seconds
• The service menu is closed after 2 minutes without button presses.
• Functions of menu B must be confirmed twice.
The following functions are available:
Menu A (green LED)
Function 1
Function 2
Function 3
Function 4
Function 5
Menu B (red LED)
Function 6
Function 7
Function 8
Function 9
Function 10
54
Faulty operation
---
System-wide clearing of
faults and restarting of the
monitoring routines
---
Description
Show status of the last service function
Cold start of the SMC (>coldstart smc<)
Cold start of the SMC and clearing of the faults (>coldstart smc f<)
Cold start of the system (>coldstart sys<)
Autosetup (>autosetup<) with functions:
• ZBUS factory settings (>setfactory zbus<)
• Create database (>makedb<)
• BBUS addressing (>adrbbus<)
Description
BBUS addressing (>adrbbus<)
ZBUS addressing (>adrzbus<)
Create database (>makedb<)
SMC factory settings (>setfactory smc<)
ZBUS factory settings (>setfactory zbus<)
Normal operation
---
--- Execution of the function
Opens service menu
In the service menu
Next function
Closes service menu
