Ward Management Controller Clino System 99plus (SMC99plus)
3.3

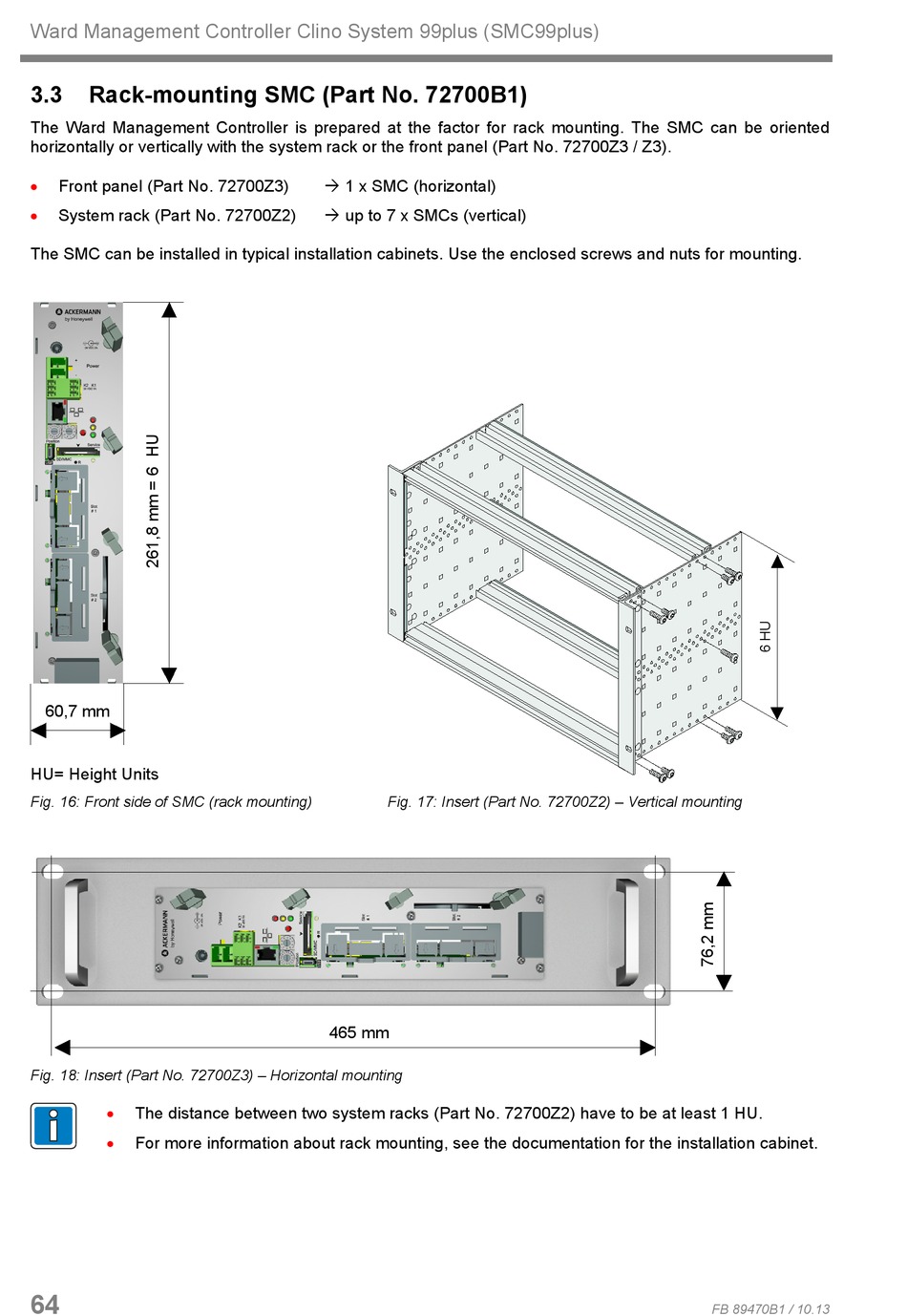

Rack-mounting SMC (Part No. 72700B1)

The Ward Management Controller is prepared at the factor for rack mounting. The SMC can be oriented
horizontally or vertically with the system rack or the front panel (Part No. 72700Z3 / Z3).
• Front panel (Part No. 72700Z3)
• System rack (Part No. 72700Z2)
The SMC can be installed in typical installation cabinets. Use the enclosed screws and nuts for mounting.
60,7 mm
HU= Height Units
Fig. 16: Front side of SMC (rack mounting)
Fig. 18: Insert (Part No. 72700Z3) – Horizontal mounting
• The distance between two system racks (Part No. 72700Z2) have to be at least 1 HU.
• For more information about rack mounting, see the documentation for the installation cabinet.
64
 1 x SMC (horizontal)
 up to 7 x SMCs (vertical)
Fig. 17: Insert (Part No. 72700Z2) – Vertical mounting
465 mm
FB 89470B1 / 10.13
