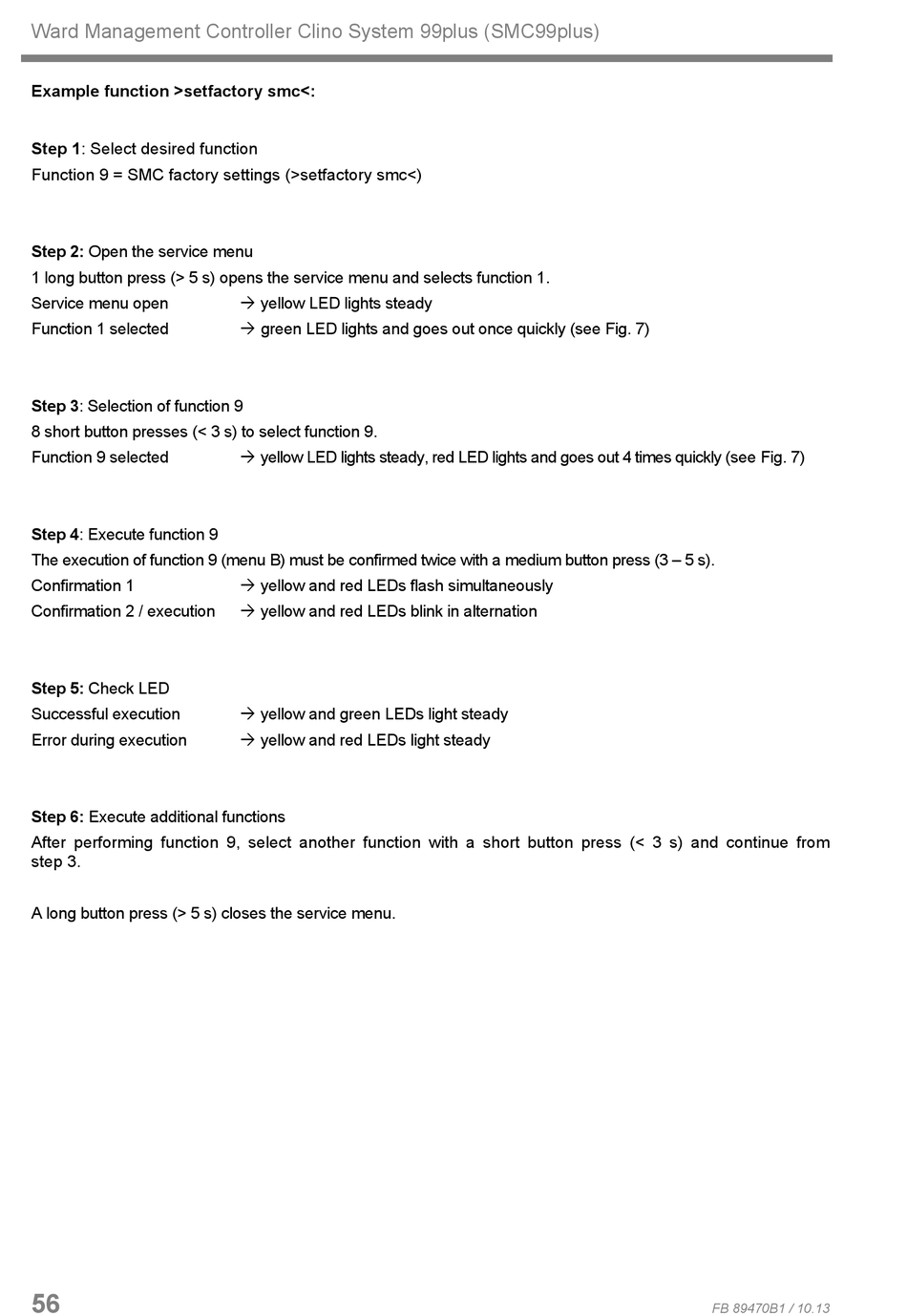

Ward Management Controller Clino System 99plus (SMC99plus)
Example function >setfactory smc<:
Step 1: Select desired function
Function 9 = SMC factory settings (>setfactory smc<)
Step 2: Open the service menu
1 long button press (> 5 s) opens the service menu and selects function 1.
Service menu open
Function 1 selected
Step 3: Selection of function 9
8 short button presses (< 3 s) to select function 9.
Function 9 selected
Step 4: Execute function 9
The execution of function 9 (menu B) must be confirmed twice with a medium button press (3 – 5 s).
Confirmation 1
Confirmation 2 / execution
Step 5: Check LED
Successful execution
Error during execution
Step 6: Execute additional functions
After performing function 9, select another function with a short button press (< 3 s) and continue from
step 3.
A long button press (> 5 s) closes the service menu.
56
 yellow LED lights steady
 green LED lights and goes out once quickly (see Fig. 7)
 yellow LED lights steady, red LED lights and goes out 4 times quickly (see Fig. 7)
 yellow and red LEDs flash simultaneously
 yellow and red LEDs blink in alternation
 yellow and green LEDs light steady
 yellow and red LEDs light steady
FB 89470B1 / 10.13
