4.2

Installation of an SMC (Part No. 72700A1 / B1)

4.2.1 Connecting the power supply

The power supply to the Ward Management Controller is realised according to either building-specific or
standards-based requirements:
1. Local
2. From the station
3. Redundant (local and station)
4. Via the mains adapter
1. Local
The power is supplied exclusively locally via the connection terminal of the SMC.
Stations-Management-Controller (Art.-Nr. 72700B1)
Ward Managment Controller (Part No. 72700B1)
4 6
GND
24 V DC

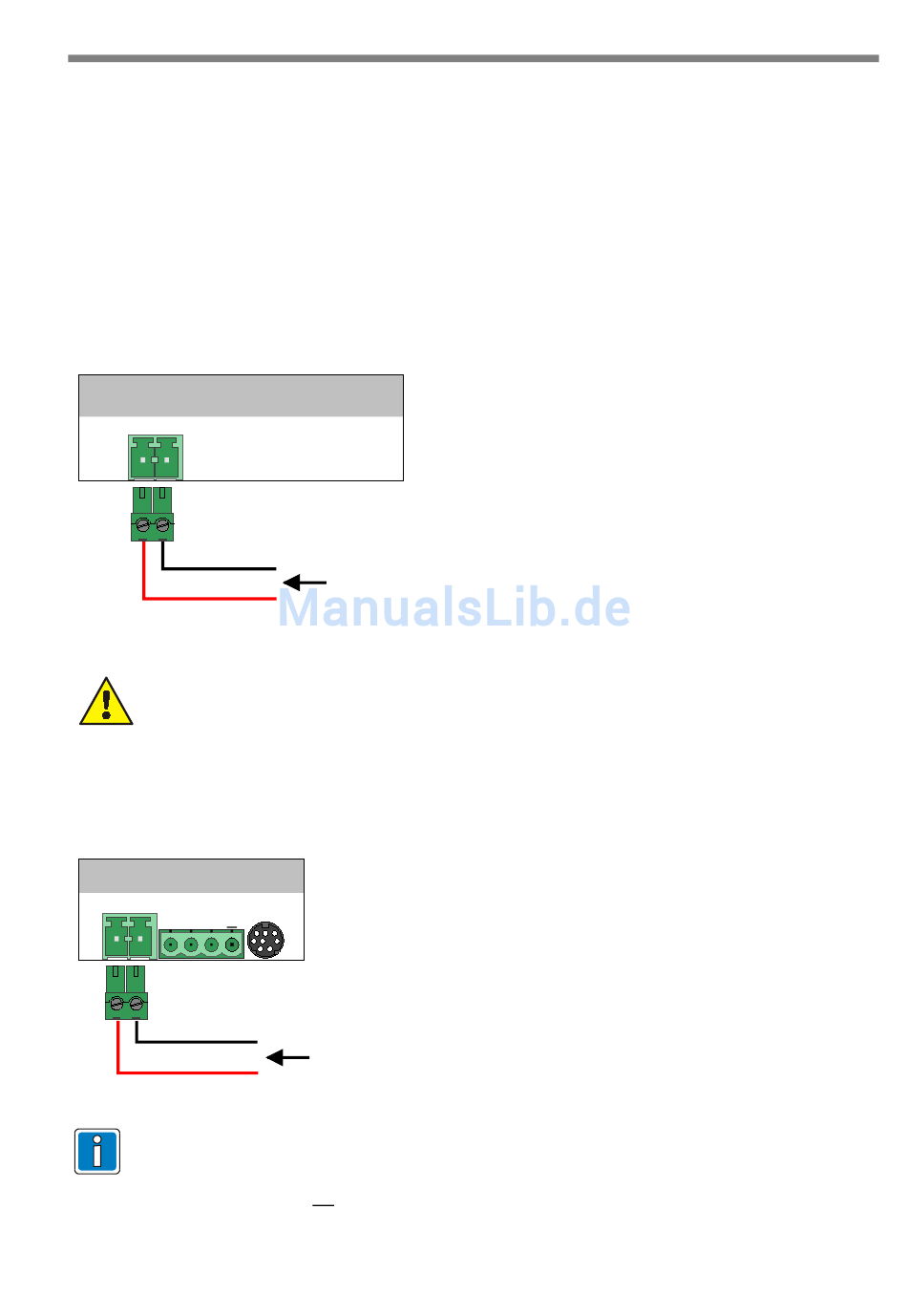

Fig. 24: Local power supply
• In accordance with the applicable standards and regulations, the power supply may only be
connected by a qualified electrician in accordance with the >Installation Instructions<.
• The jumper PL3 must be inserted for >Local power supply<. For more information, see
section 2.4.
2. From the station
The power is supplied via the mains adapter / UPS to the station via the connection terminals of the Field
Bus Card 99plus.
Feldbus-Karte (Art.-Nr. 72700C1)
Field Bus Card (Part No. 72700C1)
4 6
ZA ZB A A
GND
24 V DC
Fig. 25: Power supply from the station
• The jumper PL3 must be inserted for >Local power supply<. For more information, see section
2.4
• The power supply to the station must lie within the technical specifications and may only be
used for this SMC. No connection to another SMC is permitted.
FB 89470B1 / 10.13
Ward Management Controller Clino System 99plus (SMC99plus)
24 V DC
emgergency
power supply
power supply
from the station
69
