Ward Management Controller Clino System 99plus (SMC99plus)
/ Reset button
12 M
The reset button restarts the SMC and is protected against accidental operation. The button must be
pressed with an appropriate object ≤ 2 mm such as a paper clip, pin, etc.
/ Field Bus Cards LEDs
13 H
Every installation slot for the Field Bus Cards has two green LEDs that indicate the current operating status
of the connected bus lines.

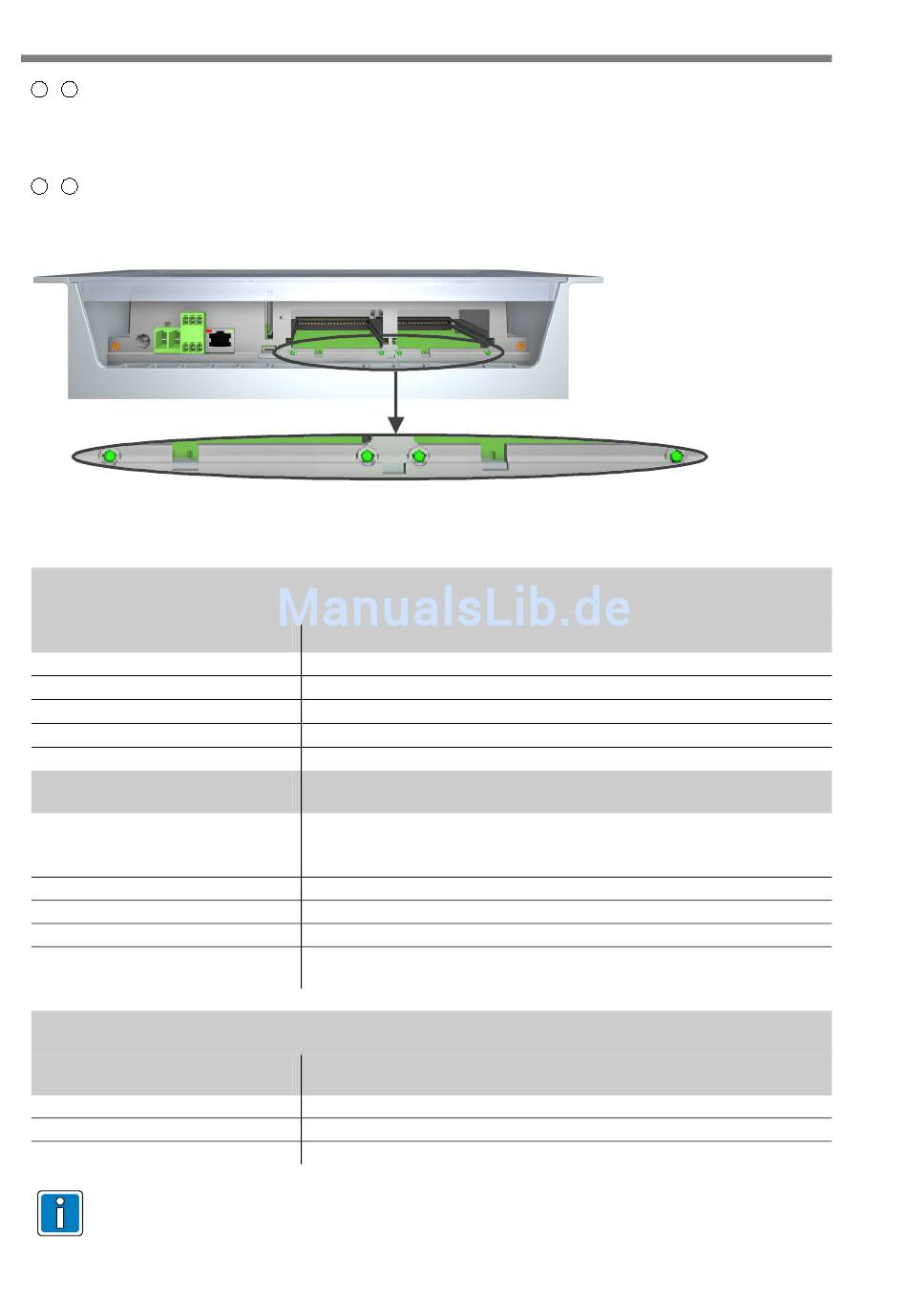

Fig. 10: Field Bus Cards LEDs
The LEDs indicate the current operating status of the buses.
1. Installation slot
LED left
Steady on
Steady off
Flashing (1 s frequency)
Flashing (200 ms frequency)
Flashing (500 ms frequency)
LED right
Steady on
Steady off
Flashing (1 s frequency)
Flashing (200 ms frequency)
Flashing (500 ms frequency)
2. Installation slot
LED left / LED right
Steady on
Steady off
Flashing (200 ms frequency)
The LED indicators only function while a Field Bus Card is inserted.
58
Audio databus (ABUS) status
ABUS in test mode (test data sequence)
ABUS not active
Multi-station announcement via ABUS active
Data transport active on ABUS
Nurse call conversation active on ABUS
Corridor databus (ZBUS) status
• ZBUS deactivated
• No database active
• No service commands active
ZBUS in normal operation
ZBUS in emergency functioning mode (too many faults)
ZBUS service function active
ZBUS in service mode, see >servmode<
(documentation Part No. 89465A1)
Zone databus (SBUS) status
SBUS is open
SBUS is closed (loop mode)
SBUS is in basic mode
FB 89470B1 / 10.13
