Ward Management Controller Clino System 99plus (SMC99plus)
6

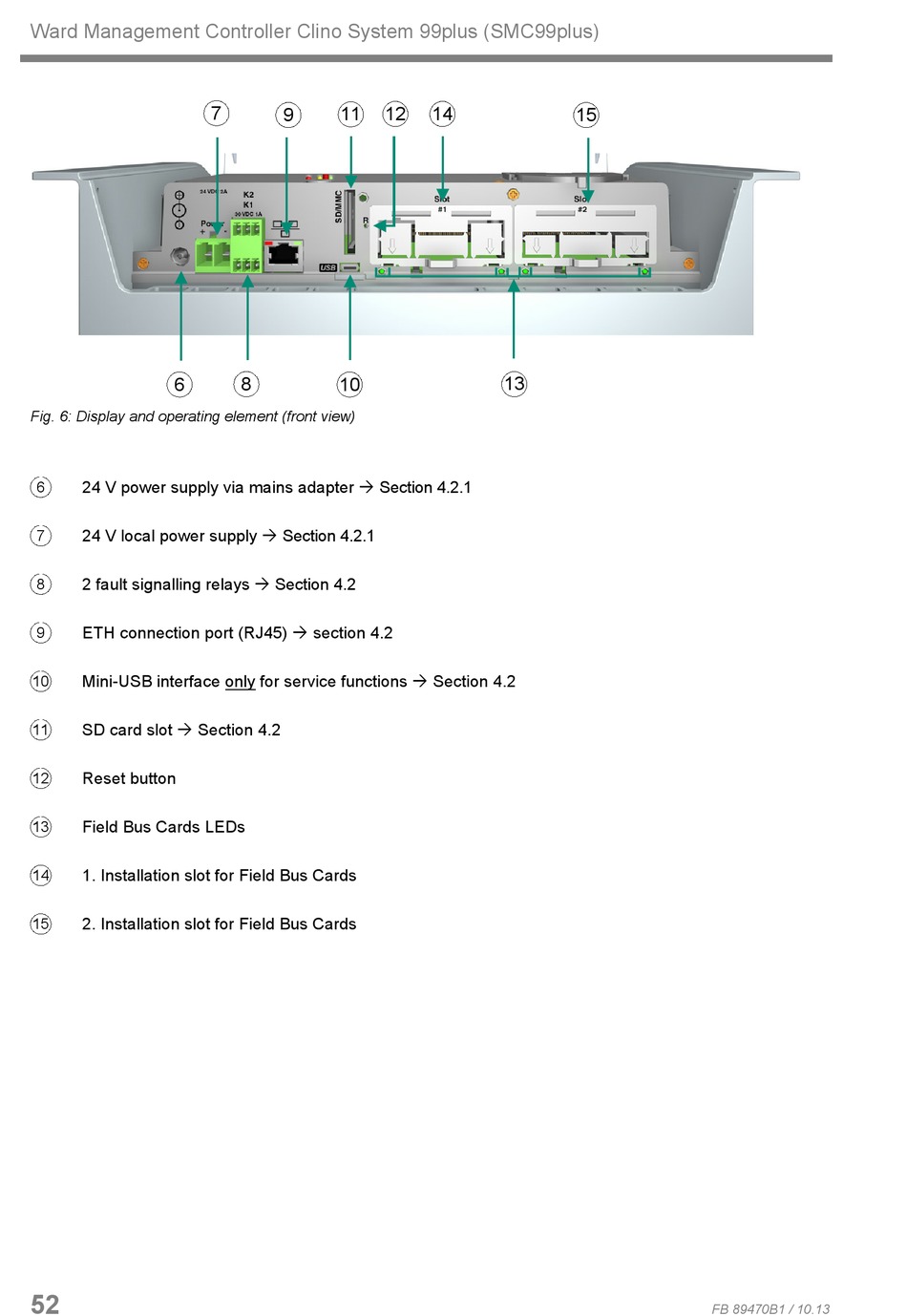

Fig. 6: Display and operating element (front view)
24 V power supply via mains adapter  Section 4.2.1
6
24 V local power supply  Section 4.2.1
7
2 fault signalling relays  Section 4.2
8
ETH connection port (RJ45)  section 4.2
9
Mini-USB interface only for service functions  Section 4.2
10
SD card slot  Section 4.2
11
Reset button
12
Field Bus Cards LEDs
13
1. Installation slot for Field Bus Cards
14
2. Installation slot for Field Bus Cards
15
