Ward Management Controller Clino System 99plus (SMC99plus)
DIP switch
3
The DIP switch serves for terminating the corridor and audio databus (ZBUS / ABUS). The termination of the
buses must take place at both the start and end of a bus segment.
OFF
ON RSN
1 2 3 4
(factory setting)
For more information about terminating buses, see the documentation (Part No. 89470A1), and
for information about the field bus card 99plus, see the documentation (Part No. 89470B2).
2.5

Field Bus Card POF-POF

When the Field Bus Card (Part No. 72700E1) is inserted into the 2nd installation slot of the SMC, it is
detected automatically and can be used for networking the devices via the zone databus (SBUS). Connection
of the SBU takes place via a polymer optical fibre (POF), with which a line length of max. 50 m can be achieved
(with fibre optic converter Part No. 72661D1 max. 1000 m).

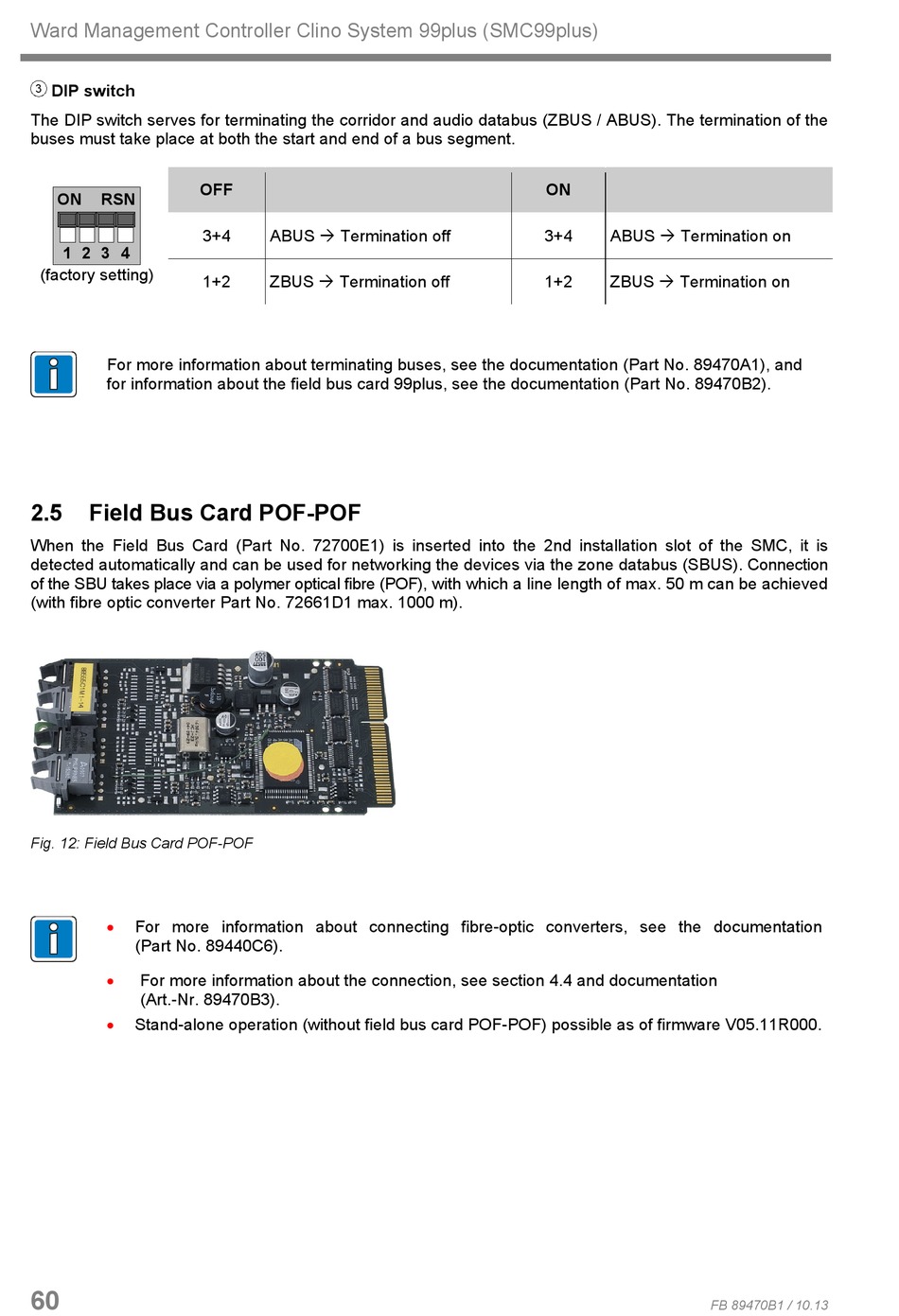

Fig. 12: Field Bus Card POF-POF
• For more information about connecting fibre-optic converters, see the documentation
(Part No. 89440C6).
• For more information about the connection, see section 4.4 and documentation
(Art.-Nr. 89470B3).
• Stand-alone operation (without field bus card POF-POF) possible as of firmware V05.11R000.
60
3+4 ABUS  Termination off
1+2 ZBUS  Termination off
ON
3+4 ABUS  Termination on
1+2 ZBUS  Termination on
FB 89470B1 / 10.13
