3.2

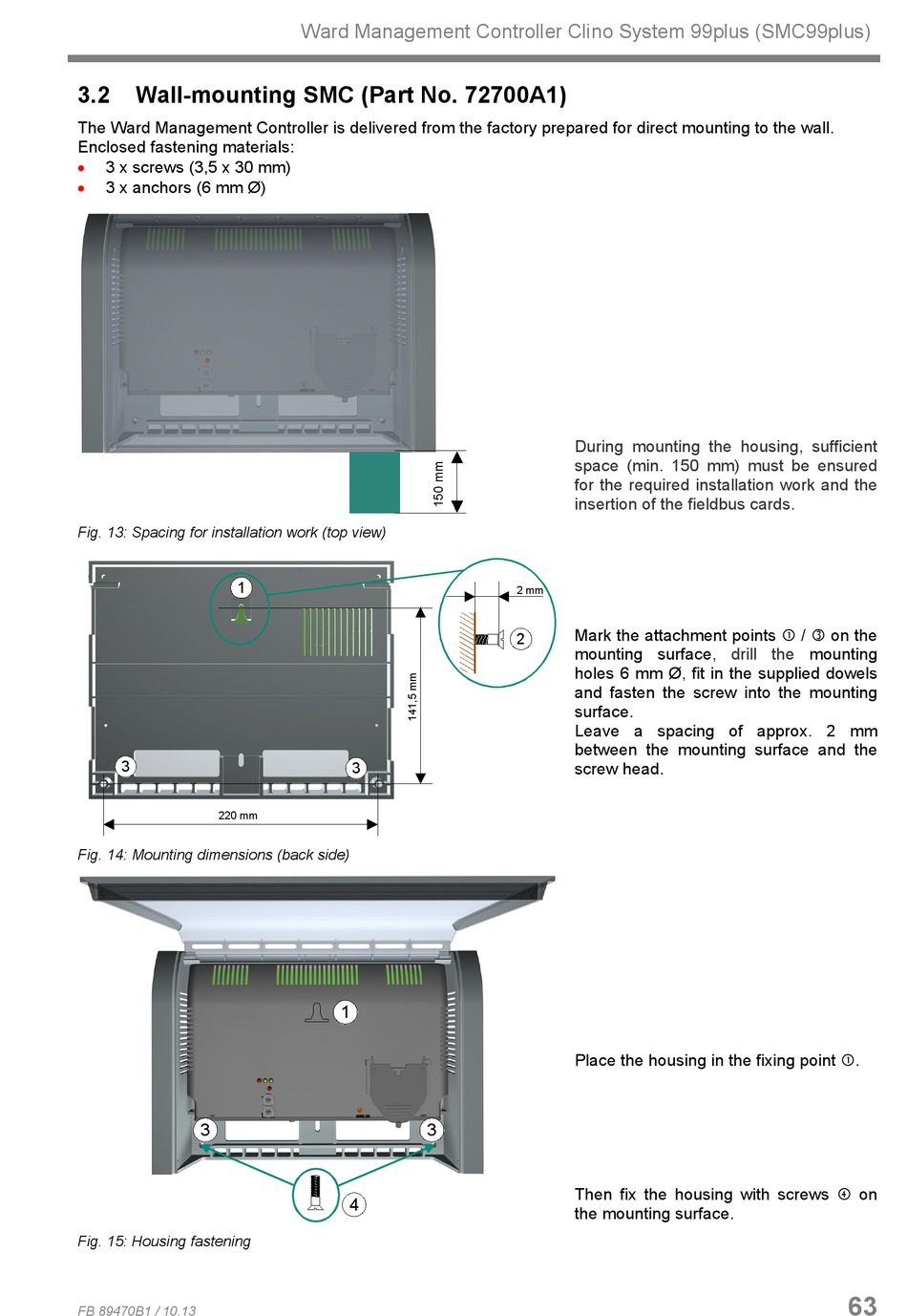

Wall-mounting SMC (Part No. 72700A1)

The Ward Management Controller is delivered from the factory prepared for direct mounting to the wall.
Enclosed fastening materials:
• 3 x screws (3,5 x 30 mm)
• 3 x anchors (6 mm Ø)
Fig. 13: Spacing for installation work (top view)
1
3
220 mm
Fig. 14: Mounting dimensions (back side)
3
Fig. 15: Housing fastening
FB 89470B1 / 10.13
Ward Management Controller Clino System 99plus (SMC99plus)
3
1
3
4
During mounting the housing, sufficient
space (min. 150 mm) must be ensured
for the required installation work and the
insertion of the fieldbus cards.
2 mm
Mark the attachment points  /  on the
2
mounting surface, drill the
holes 6 mm Ø,
and fasten the screw into the mounting
surface.
Leave a spacing of approx. 2 mm
between the mounting surface and the
screw head.
Place the housing in the fixing point .
Then fix the housing with screws  on
the mounting surface.
mounting
fit in the supplied dowels
63
