/ 1st installation slot for Field Bus Card System 99plus
14 N
The Field Bus Card (Part No. 72700C1) can be inserted into this installation slot.
/ 2nd installation slot for Field Bus Card POF-POF
15 O
The Field Bus Card (Part No. 72700E1) can be inserted into this installation slot.
If a Field Bus Card is inserted into the wrong installation slot, no function is possible!
2.4

Field Bus Card 99plus

The Field Bus Card (Part No. 72700C1) is inserted into the 1st installation slot of the Ward Management
Controller and automatically detected. It offers connection options for the room databus (ZBUS), a redundant
power supply and the configuration module (Part No. 72649B1) with Software ≥ V05.30.

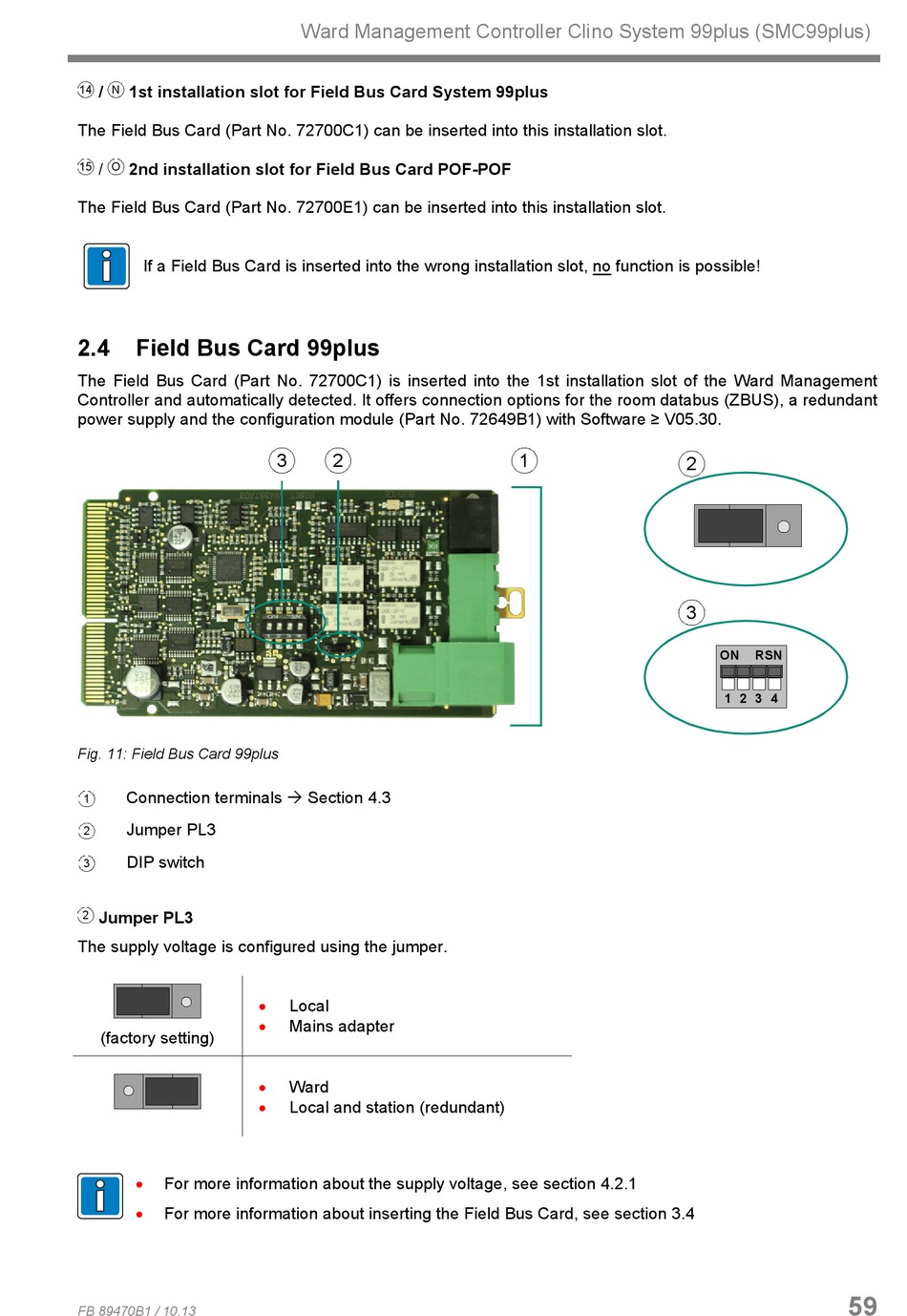

Fig. 11: Field Bus Card 99plus
Connection terminals  Section 4.3
1
Jumper PL3
2
DIP switch
3
Jumper PL3
2
The supply voltage is configured using the jumper.
(factory setting)
• For more information about the supply voltage, see section 4.2.1
• For more information about inserting the Field Bus Card, see section 3.4
FB 89470B1 / 10.13
Ward Management Controller Clino System 99plus (SMC99plus)
3 2
• Local
• Mains adapter
• Ward
• Local and station (redundant)
1
2
3
ON RSN
1 2 3 4
